4730-00-122-0526

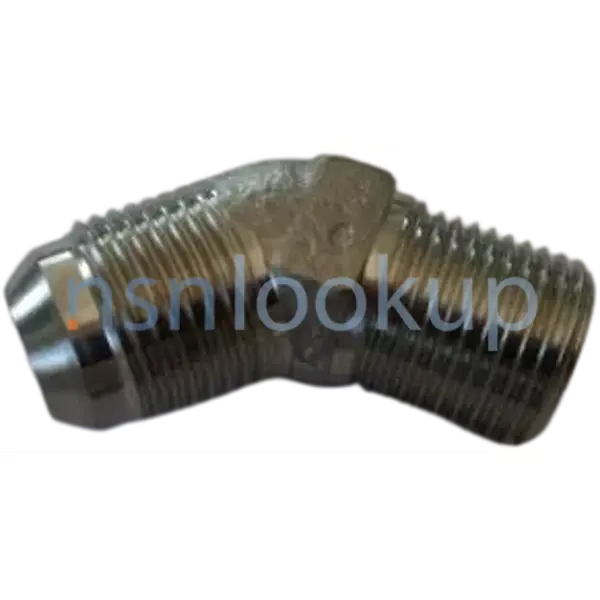

Pipe To Tube Elbow
4730001220526 001220526 SAE-AS4842/1 2023-8-10C AS5196J1008 AS4842/1 MS20823-10J AS48421/1 AS5196
A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Pipe To Tube Elbow
Managed by United States
NSN Created on 4 Nov 1968
Data Last Changed
July 2025
July 2025
NATO Update Count
37
37
NATO Data Quality
Marketplace 4730-00-122-0526
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-122-0526 5+ Documents (More...)
SAE-AS4842/1 2023-8-10C AS5196J1008 AS4842/1 MS20823-10J AS48421/1 AS5196 A fitting that forms an angle
AS5196J1008 ELBOW,PIPE TO TUBE 90 EA NS Request Quotation MS20823-10J ELBOW,PIPE TO TUBE 64 EA NS Request
Quotation AS5196 ELBOW,PIPE TO TUBE 348 EA NS Request Quotation 2023-8-10C ELBOW,PIPE TO TUBE 110 EA
AS5196J1008 ELBOW,PIPE TO TUBE 90 EA NS Request Quotation MS20823-10J ELBOW,PIPE TO TUBE 64 EA NS Request
Quotation AS5196 ELBOW,PIPE TO TUBE 348 EA NS Request Quotation 2023-8-10C ELBOW,PIPE TO TUBE 110 EA
Upgrade 4730-00-808-4703Pipe To Tube Elbow4730008084703 008084703 Cancelled - Replaced by NSN 4730-00-122-0526
MS20823-10J ELBOW,PIPE TO TUBE 64 EA NS Request Quotation 2023-8-10C ELBOW,PIPE TO TUBE 110 EA NS Request
Pipe To Tube Elbow 4730001220526 001220526 fitting that forms an angle of less than 180 degrees
MS20823-10J ELBOW,PIPE TO TUBE 64 EA NS Request Quotation 2023-8-10C ELBOW,PIPE TO TUBE 110 EA NS Request
Pipe To Tube Elbow 4730001220526 001220526 fitting that forms an angle of less than 180 degrees
Elbow 4730002871019 002871019 Upgrade 4730-00-287-1019Pipe To Tube Elbow4730002871019 002871019 SAE-AS4842/1
002871019SAE-AS4842/1AS5195-2420EE100982 AS48421 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-122-0526
Pipe To Tube Elbow 4730001220526 001220526 0526Pipe To Tube Elbow4730001220526 001220526 SAE-AS4842
002871019SAE-AS4842/1AS5195-2420EE100982 AS48421 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-122-0526
Pipe To Tube Elbow 4730001220526 001220526 0526Pipe To Tube Elbow4730001220526 001220526 SAE-AS4842
Pipe To Tube Elbow 4730001220526 001220526 $1 a day Upgrade your Account Upgrade 4730-00-122-0526Pipe
To Tube Elbow4730001220526 001220526 SAE-AS4842/1 2023-8-10C AS5196J1008 AS4842/1 MS20823-10J AS48421
AS5196-0302 AS4842/1 AS5196C MS20823-3 AN823-3 A fitting that forms an angle of less than 180 degrees
To Tube Elbow4730001220526 001220526 SAE-AS4842/1 2023-8-10C AS5196J1008 AS4842/1 MS20823-10J AS48421
AS5196-0302 AS4842/1 AS5196C MS20823-3 AN823-3 A fitting that forms an angle of less than 180 degrees
$1 a day Upgrade your Account Upgrade 4730-00-230-8731Pipe To Tube Elbow4730002308731 002308731 SAE-AS4842/1
398215 AS5196-0502 AS4842/1 AS5196 2503-5-2 MS20823-5 A fitting that forms an angle of less than 180
AS4842-1 ELBOW,PIPE TO TUBE 3 EA NS Request Quotation AS5196-0502 ELBOW,PIPE TO TUBE 45 EA NS Request
398215 AS5196-0502 AS4842/1 AS5196 2503-5-2 MS20823-5 A fitting that forms an angle of less than 180
AS4842-1 ELBOW,PIPE TO TUBE 3 EA NS Request Quotation AS5196-0502 ELBOW,PIPE TO TUBE 45 EA NS Request
Restrictions 4730-00-122-0526
4730-00-122-0526 is a Pipe To Tube Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-122-0526
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-122-0526
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Mar 1999
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4730-00-122-0526
- Part Number
- Manufacturer
- Status
- SAE-AS4842/1
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS5196J1008
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- AS4842/1
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS20823-10J
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS48421/1
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS5196
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS5196J1008
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS5196
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4730001220526
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 2023-8-10C
- 01276 - Danfoss Power Solutions Ii, Llc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-00-122-0526
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Flared (Tube) 1St End
- Connection Style [AHNC]
- Plain (Pipe) 2Nd End
- Connection Type [AWLS]
- Threaded External Pipe 2Nd End
- Connection Type [AWLS]
- Threaded External Tube 1St End
- Flow Angle [CRFY]
- 45.0 Degrees
- Material [MATT]
- Steel Comp 304 Overall
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.625 Inches 1St End
- Nominal Thread Size [CQJX]
- 0.500 Inches 2Nd End
- Nominal Thread Size [CQJX]
- 0.875 Inches 1St End
- Leg Length [AHSJ]
- 1.110 Inches Nominal 1St End
- Leg Length [AHSJ]
- 1.170 Inches Nominal 2Nd End
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Overall
- Seat Angle [CQRB]
- 37.0 Degrees 1St End
- Specification/Standard Data [ZZZK]
- 81343-As4842/1 Professional/Industrial Association Standard
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Class [AAJD]
- 3A 1St End
- Thread Series Designator [THSD]
- Npt 2Nd End
- Thread Series Designator [THSD]
- Unjf 1St End
