4730-00-122-0525

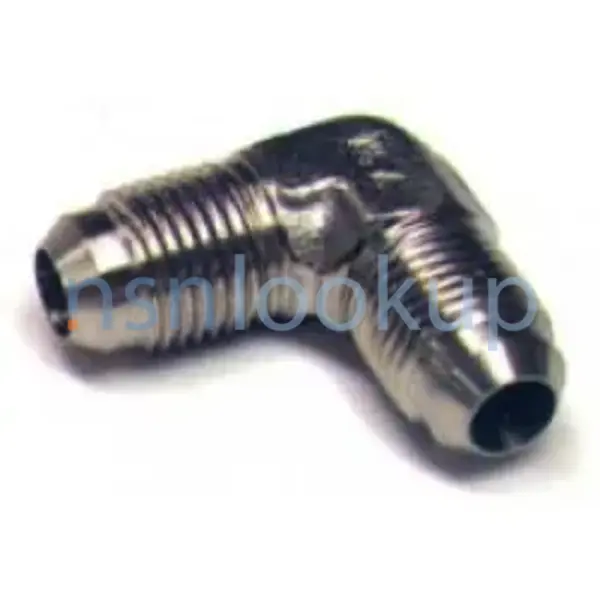

Tube To Boss Elbow
4730001220525 001220525 SAE-AS4841 AP213-10 AS1034 AS1034J10 MIL-F-5509 AP213J10 AS4841 AN821-10J MS24401J10
A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like. View more Tube To Boss Elbow
Managed by United States
NSN Created on 4 Nov 1968
Data Last Changed
November 2023
November 2023
NATO Update Count
42
42
NATO Data Quality
Marketplace 4730-00-122-0525
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
AP213J10 ELBOW,TUBE TO BOSS 11 EA NS
MILF5509 ELBOW,TUBE TO BOSS RQST NS
AS1034J10 ELBOW,TUBE TO BOSS RQST NS
AS4841 ELBOW,TUBE TO BOSS 631 EA NS
AP213-10 ELBOW,TUBE TO BOSS 37 EA NS
MS24401J10 ELBOW,TUBE TO BOSS 118 EA NS
AN821-10J ELBOW,TUBE TO BOSS 143 EA NS
AS1034 ELBOW,TUBE TO BOSS 380 EA NS
MIL-F-5509 ELBOW,TUBE TO BOSS 327 EA NS
MIL-F-5509 ELBOW,TUBE TO BOSS 365 EA NS
MILF5509 ELBOW,TUBE TO BOSS 77 EA NS
AS4841 ELBOW,TUBE TO BOSS 55 EA NS
MILF5509 ELBOW,TUBE TO BOSS 1 EA NS
MIL-F-5509 ELBOW,TUBE TO BOSS 2 EA NS
AS4841 ELBOW,TUBE TO BOSS 2 EA NS
Updated Every Day 4730-00-122-0525 RQST NE
Updated Every Day 4730-00-122-0525 RQST
Updated Every Day 4730-00-122-0525 RQST NE
Related Documents 4730-00-122-0525 5+ Documents (More...)
SAE-AS4841 AP213-10 AS1034 AS1034J10 AN821-10J MS24401J10 MIL-F-5509 AP213J10 AS4841 A fitting that
AP213-10 ELBOW,TUBE TO BOSS 37 EA NS Request Quotation MS24401J10 ELBOW,TUBE TO BOSS 118 EA NS Request
Quotation AN821-10J ELBOW,TUBE TO BOSS 143 EA NS Request Quotation AS1034 ELBOW,TUBE TO BOSS 380 EA
AP213-10 ELBOW,TUBE TO BOSS 37 EA NS Request Quotation MS24401J10 ELBOW,TUBE TO BOSS 118 EA NS Request
Quotation AN821-10J ELBOW,TUBE TO BOSS 143 EA NS Request Quotation AS1034 ELBOW,TUBE TO BOSS 380 EA
MS24401J10 ELBOW,TUBE 118 EA NS Request Quotation AP213J10 ELBOW,TUBE 11 EA NS Request Quotation MILF5509
ELBOW,TUBE RQST NS Request Quotation AP213-10 ELBOW,TUBE 37 EA NS Request Quotation MIL-F-5509 ELBOW
MIL-F-5509 ELBOW,TUBE RQST NS Request Quotation Subscribe to View Vendor Details...
ELBOW,TUBE RQST NS Request Quotation AP213-10 ELBOW,TUBE 37 EA NS Request Quotation MIL-F-5509 ELBOW
MIL-F-5509 ELBOW,TUBE RQST NS Request Quotation Subscribe to View Vendor Details...
MIL-F-5509 ELBOW,TUBE 327 EA NS Request Quotation MILF5509 ELBOW,TUBE RQST NS Request Quotation AP213J10
ELBOW,TUBE 11 EA NS Request Quotation MS24401J10 ELBOW,TUBE 118 EA NS Request Quotation AP213-10 ELBOW
MIL-F-5509 ELBOW,TUBE RQST NS Request Quotation Subscribe to View Vendor Details...
ELBOW,TUBE 11 EA NS Request Quotation MS24401J10 ELBOW,TUBE 118 EA NS Request Quotation AP213-10 ELBOW
MIL-F-5509 ELBOW,TUBE RQST NS Request Quotation Subscribe to View Vendor Details...
AS1034 AN821-4 A fitting that AS1034-0404 AS4841 AS1034 AN821-4 A fitting that forms an https//www.nsnlookup.com
-0808 AS1034 AN821-8 AS4841 A fitting that forms an angle of less that 180 degrees (3.141 radians AS4841
/fsg-47/fsc-4730/us 4730-00-122-0525 Tube To Boss Elbow 4730001220525 001220525 $1 a day Upgrade your
-0808 AS1034 AN821-8 AS4841 A fitting that forms an angle of less that 180 degrees (3.141 radians AS4841
/fsg-47/fsc-4730/us 4730-00-122-0525 Tube To Boss Elbow 4730001220525 001220525 $1 a day Upgrade your
$1 a day Upgrade your Account Upgrade 4730-00-306-7923Tube To Boss Elbow4730003067923 003067923 SAE-AS4841
-0606AN821-6 MS24401-6 AS1034 AS4841 AN821-6M0D 4730004914992 https//www.nsnlookup.com 6ETX 618257 AS1034
Tube To Boss Elbow 4730001220525 001220525 $1 a day Upgrade your Account Upgrade 4730-00-122-0525Tube
-0606AN821-6 MS24401-6 AS1034 AS4841 AN821-6M0D 4730004914992 https//www.nsnlookup.com 6ETX 618257 AS1034
Tube To Boss Elbow 4730001220525 001220525 $1 a day Upgrade your Account Upgrade 4730-00-122-0525Tube
Restrictions 4730-00-122-0525
4730-00-122-0525 is a Tube To Boss Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-00-122-0525
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-122-0525
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEHD
- Poland (WP01)
- Effective Date:
- 1 Jun 2006
- Spain (YB01)
- Effective Date:
- 1 Oct 2003
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Oct 2006
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 4730-00-122-0525
- Part Number
- Manufacturer
- Status
- SAE-AS4841
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS1034J10
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- AP213-10
- 01673 - Sps Technologies, Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AS1034
- 0U583 - Sae International (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MIL-F-5509
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS1034J10
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AP213J10
- 01673 - Sps Technologies, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS4841
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS1034
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS4841
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-10J
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS24401J10
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-122-0525
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Steel Comp 304 Overall
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Overall
- Surface Treatment [SFTT]
- Passivate Overall
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Connection Style [AHNC]
- Flared (Tube) All Ends
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.625 Inches All Ends
- Thread Series Designator [THSD]
- Unf All Ends
- Nominal Thread Size [CQJX]
- 0.875 Inches All Ends
- Thread Class [AAJD]
- 3A All Ends
- Leg Length [AHSJ]
- 1.453 Inches Nominal All Ends
- Flow Angle [CRFY]
- 90.0 Degrees
