4730-00-081-3459
Threaded Tube Fitting Plug
4730000813459 000813459 SAE-AS18280 MS21913J10 AS18280 AS21913
A tube fitting with external threads other than pipe or hose series having an internal or external seating surface. The seating surface is designed to form a seal when mated with other tube fittings to retain fluids under pressure during equipment operation. For items without a specific seating surface which are designed to utilize a gasket or packing under the head for forming a seal, see PLUG, MACHINE THREAD. View more Threaded Tube Fitting Plug
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
23
23
NATO Data Quality
Marketplace 4730-00-081-3459
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-081-3459 5+ Documents (More...)
SAE-AS18280 MS21913J10 AS18280 AS21913 A tube fitting with external threads other than pipe or hose
MS21913W24 SAE AS21913 MS21913D24 SAE AS18280 A tube fitting with external threads other than pipe or
RQST NS Request Quotation SAE-AS18280 PLUG,TUBE FITTING,THREADED 107 EA NS Request Quotation AS18280
MS21913W24 SAE AS21913 MS21913D24 SAE AS18280 A tube fitting with external threads other than pipe or
RQST NS Request Quotation SAE-AS18280 PLUG,TUBE FITTING,THREADED 107 EA NS Request Quotation AS18280
5995-00-401-5420 RQST NE Related Documents 5995-00 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-081-3459
Threaded Tube Fitting Plug 4730000813459 (Identification) 1/2 NSN 4730-00-081-3459 (Identification
United States (US) 4. 4730-00-081-3459 Marketplace Restrictions Approved Sources Datasheet Management
Threaded Tube Fitting Plug 4730000813459 (Identification) 1/2 NSN 4730-00-081-3459 (Identification
United States (US) 4. 4730-00-081-3459 Marketplace Restrictions Approved Sources Datasheet Management
Upgrade your Account Upgrade 4730-00-203-0246Threaded Tube Fitting Plug4730002030246 002030246 SAE-AS18280
AS21913 MS21913-12D MS21913W12 AS18280 MS21913D12 A tube fitting with external threads other than pipe
-12DMS21913W12AS18280MS21913D12 MS21913W24 SAE AS21913 MS21913D24 SAE AS18280 A tube fitting with external
AS21913 MS21913-12D MS21913W12 AS18280 MS21913D12 A tube fitting with external threads other than pipe
-12DMS21913W12AS18280MS21913D12 MS21913W24 SAE AS21913 MS21913D24 SAE AS18280 A tube fitting with external
Upgrade your Account Upgrade 4730-00-540-2233Threaded Tube Fitting Plug4730005402233 005402233 SAE-AS18280
MS21913W24 SAE AS21913 MS21913D24 SAE AS18280 A tube fitting with external threads other than pipe or
RQST NS Request Quotation SAE-AS18280 PLUG,TUBE FITTING,THREADED 107 EA NS Request Quotation AS18280
MS21913W24 SAE AS21913 MS21913D24 SAE AS18280 A tube fitting with external threads other than pipe or
RQST NS Request Quotation SAE-AS18280 PLUG,TUBE FITTING,THREADED 107 EA NS Request Quotation AS18280
A tube fitting with external threads other than pipe or MS21913W24 SAE AS21913 MS21913D24 SAE AS18280
A tube fitting with external threads other than pipe or MS21913W24 SAE AS21913 MS21913D24 SAE AS18280
A tube fitting with external threads other than pipe or MS21913W24 SAE AS21913 MS21913D24 SAE AS18280
A tube fitting with external threads other than pipe or MS21913W24 SAE AS21913 MS21913D24 SAE AS18280
A tube fitting with external threads other than pipe or MS21913W24 SAE AS21913 MS21913D24 SAE AS18280
Restrictions 4730-00-081-3459
4730-00-081-3459 is a Threaded Tube Fitting Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-081-3459
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-081-3459
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- CT
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- NICD
- Supplementary Collaborators:
- GTHD
- Poland (WP01)
- Effective Date:
- 1 Aug 2011
- Brazil (YA01)
- Effective Date:
- 1 Dec 2008
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4730-00-081-3459
- Part Number
- Manufacturer
- Status
- SAE-AS18280
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- MS21913J10
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- AS18280
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS21913
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS21913J10
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS21913J10
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS18280
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS21913
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MS21913J10
- 96909 - De Marzi Victor (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 4730-00-081-3459
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0

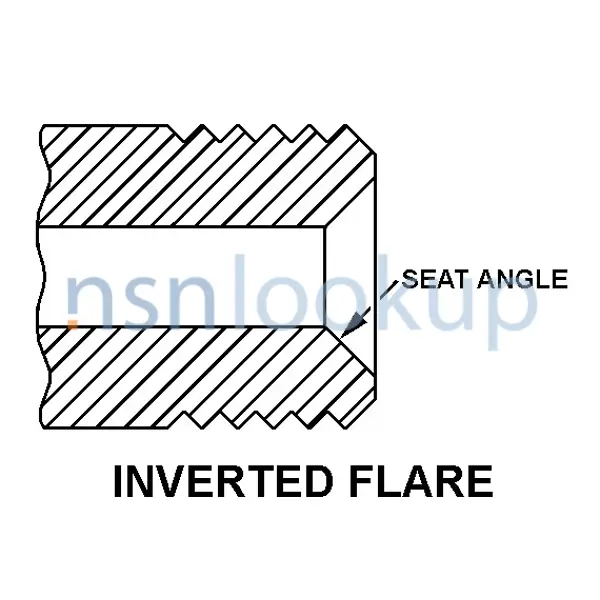

- Connection Style [AHNC]
- Inverted Flare
- Head Height [AASU]
- 0.359 Inches Nominal
- End Item Identification [AGAV]
- Aircraft Fluid System
- Material [MATT]
- Steel Comp 304 Overall
- Nominal Thread Size [CQJX]
- 0.875 Inches External
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Overall
- Seat Angle [CQRB]
- 12.0 Degrees
- Overall Length [ABHP]
- 0.984 Inches Nominal
- Thread Series Designator [THSD]
- Unjf External
- Specification/Standard Data [ZZZK]
- 96906-Ms21913 Government Standard
- Style Designator [STYL]
- Plug, Tube Fitting Flareless (Note: Drilled Hole Is Optional, Should Not Be Considered As A Separating Characteristic)
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Class [AAJD]
- 3A External
- Thread Direction [AAJF]
- Right-Hand External
Weapon Systems (WSDC) 4730-00-081-3459
DLA Procurement Analysis 4730-00-081-3459
- Last Stock Position:
- 1169 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-081-3459
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4730-00-081-3459
4730-66-144-2593 4730-14-500-4809 4730-14-436-1052 4730-21-899-6921 4730-14-414-6805 4730-14-497-9206 4730-25-150-6453 4730-14-552-2292 4730-14-389-4245 4730-14-521-0197 4730-14-324-8790 4730-15-157-7673 4730-14-521-5245 4730-01-143-4546 4730-01-145-1888 4730-01-519-3379 4730-21-860-1117 4730-15-151-8144
Freight Information 4730-00-081-3459
4730-00-081-3459 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-081-3459 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-081-3459 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-081-3459 is not classified as a special type of cargo when transported by water. 4730-00-081-3459 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-081-3459
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 4730-00-081-3459 3 Records
Contracting Technical Data File (CTDF) 4730-00-081-3459 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
