4730-00-021-4947
Fluid Pressure Line Multiple Connector
4730000214947 000214947 694034
A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S). View more Fluid Pressure Line Multiple Connector
May 2023
7
Marketplace 4730-00-021-4947
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-021-4947 5+ Documents (More...)
/fsg-47/fsc-4730/us
BUY NE FedMall Updated Every Day 4730-00-021-4947 RQST NE Updated Every Day 4730-00-021-4947 RQST
Updated Every Day 4730-00-021-4947 RQST NE Related Documents 4730-00-021-4947 5+ Documents ( More...
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 694034
day Upgrade your Account Upgrade 5920-00-670-4674Extractor Post Fuseholder5920006704674 006704674 694034
694034 Push Switch 5930121620846121620846 Switch5930121620846 1216208466041 212 012069403482255030002
day Upgrade your Account Upgrade 5920-00-670-4674Extractor Post Fuseholder5920006704674 006704674 694034
/fsg-59/fsc-5920/us
Details... 625612 FUSE,CARTRIDGE 100 EA NS Request Quotation Subscribe to View Vendor Details... 694034
https//www.nsnlookup.com /fsg-59/fsc-5920/us 5920-00-856-7040 Cartridge Fuse 5920008567040008567040 694034
www.nsnlookup.com /fsg-59/fsc-5920/us 5920-00-552-0269 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-021-4947
Fluid Pressure Line Multiple Connector 212-012 694034 694034 your Account Upgrade 5920-00-552-0269Extractor
Restrictions 4730-00-021-4947
4730-00-021-4947 is a Fluid Pressure Line Multiple Connector that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-00-021-4947
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-021-4947
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Supplementary Collaborators:
- KE
- United States of America (ZZ)
Approved Sources 4730-00-021-4947
- Part Number
- Manufacturer
- Status
- 694034
- Manufacturer
- 99193 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
- 694034
- 72599 - Alliedsignal Inc Dba Allied-Signal (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-021-4947
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-G
- Bolt Hole Diameter [AHNX]
- 0.438 Inches Nominal
- Bolt Hole Flats Serrations [CGLQ]
- Not Provided
- Bolt Hole Fluid Passage [CGLR]
- Provided
- Connection Style [AHNC]
- Flared
- Fluid Connection Quantity [CGLN]
- 1
- Fluid Conveyance Type And Size For Which Designed [CGLP]
- 1/2 In. Nom Pipe Size
- Material [MATT]
- Steel Corrosion Resisting
- Seat Angle In Deg [AJFY]
- 37.0
- Seat [BJHZ]
- Included
- Screw Thread Series Designator [AJYP]
- Unf
- Overall Length [ABHP]
- 1.578 Inches Nominal
- Overall Width [ABMK]
- 2.250 Inches Nominal

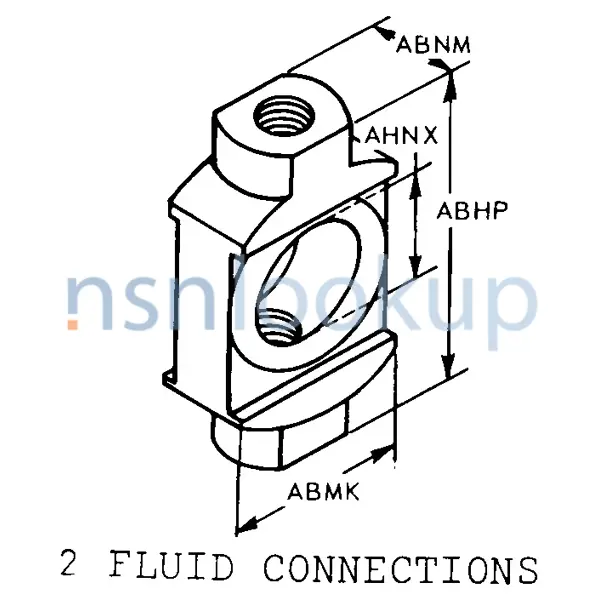

- Style Designator [STYL]
- 2 Fluid Connections
- Thickness [ABNM]
- 0.750 Inches Nominal
- Thread Direction [AAJF]
- Right-Hand
- Thread Provision [AFEW]
- Threaded
- Thread Size [ABUJ]
- 7/16 In.-20
DLA Procurement Analysis 4730-00-021-4947
Management Data 4730-00-021-4947
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 2910
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 2910
- X
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4730-00-021-4947
Freight Information 4730-00-021-4947
4730-00-021-4947 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-021-4947 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-021-4947 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-021-4947 is not classified as a special type of cargo when transported by water. 4730-00-021-4947 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4730-00-021-4947 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
