4720-01-418-6516
Nonmetallic Hose
4720014186516 014186516 8921826
A flexible, tubular item having a nonmetallic tube inner conveying surface and one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, or solids. For items with fittings on one or both ends, see HOSE ASSEMBLY, NONMETALLIC. Excludes HOSE, AIR DUCT; and HOSE AIR DUCT, AIR BREATHING. View more Nonmetallic Hose
Managed by United States
NSN Created on 31 Aug 1995
Data Last Changed
March 2025
March 2025
NATO Update Count
15
15
NATO Data Quality
Marketplace 4720-01-418-6516
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4720-01-418-6516 5+ Documents (More...)

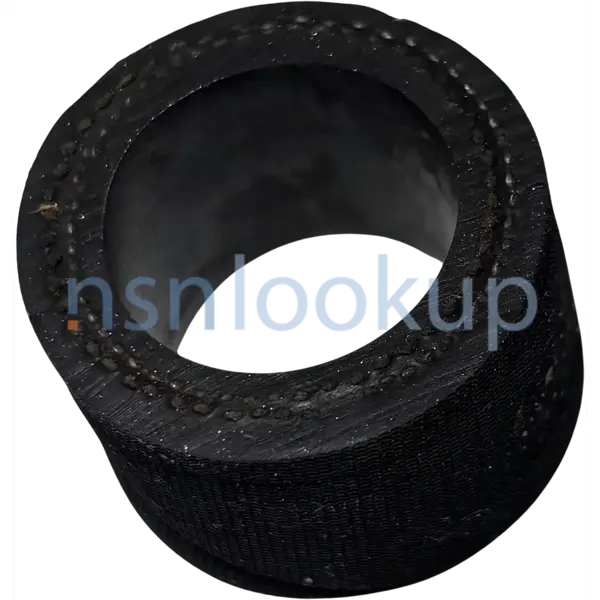

Photo 1/2 NSN 4720-01-418-6516 (Identification) 2/2 - - 1.
NS Request Quotation Updated Every Day 4720-01-418-6516 RQST NE Updated Every Day 4720-01-418-6516 RQST
Updated Every Day 4720-01-418-6516 RQST NE Related Documents 4720-01-418-6516 1+ Documents ( More...
NS Request Quotation Updated Every Day 4720-01-418-6516 RQST NE Updated Every Day 4720-01-418-6516 RQST
Updated Every Day 4720-01-418-6516 RQST NE Related Documents 4720-01-418-6516 1+ Documents ( More...
748-1989 4720-01-352-3457 4720-00-141-3100 4720-12-339-3549 4720-12-330-6578 4720-01-090-1675 4720-01-418-6516
600-1866 4720-01-352-3457 4720-00-141-3100 4720-12-339-3549 4720-12-330-6578 4720-01-090-1675 4720-01-418-6516
605-0291 4720-01-352-3457 4720-00-141-3100 4720-12-339-3549 4720-12-330-6578 4720-01-090-1675 4720-01-418-6516
603-1338 4720-01-352-3457 4720-00-141-3100 4720-12-339-3549 4720-12-330-6578 4720-01-090-1675 4720-01-418-6516
Restrictions 4720-01-418-6516
4720-01-418-6516 is a Nonmetallic Hose that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4720-01-418-6516
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4720-01-418-6516
- US Army (A920)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A181
- US Air Force (FXGC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Spain (YB01)
- Effective Date:
- 1 Nov 2003
- Australia (ZA01)
- Effective Date:
- 1 Oct 1997
- Turkey (ZW01)
- Effective Date:
- 1 Oct 2001
Approved Sources 4720-01-418-6516
- Part Number
- Manufacturer
- Status
- 8921826
- Manufacturer
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Primary Buy
- Primary Buy
- 4720014186516
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 4720-01-418-6516
- Characteristic
- Specifications
- FIIG
- Specifications
- A541Z0
- End Item Identification [AGAV]
- 60K Loader, Southwest Mobile System
- Burst Test Pressure [CQBD]
- 250.0 Pounds Per Square Inch Single Response
- Cross-Sectional Shape Style [AAGR]
- Round
- Exterior Color [ADJS]
- Blue
- Hydrostatic Test Pressure [CRDW]
- 125.0 Pounds Per Square Inch Single Response
- Material [MATT]
- Plastic Polyamide Tube
- Maximum Operating Pressure [CQGM]
- 65.0 Pounds Per Square Inch Single Response
- Measuring Method And Length [CRXX]
- 2.760 Inches Nominal Overall
- Nondefinitive Spec/Std Data [ZZZT]
- A Class
- Outer Covering Environmental Protection [CRJM]
- Heat Resistant
- Outside Diameter [ABKV]
- 2.020 Inches Nominal
- Inside Diameter [AARX]
- 1.875 Inches Nominal
- Inside Surface Condition [CRWL]
- Smooth
- Layer Composition And Location [CQCS]
- 2Nd Layer Braided Fabric Err-100
- Layer Composition And Location [CQCS]
- 1St Layer Braided Fabric Err-100
- Layer Composition And Location [CQCS]
- Outer Layer Molded Plastic Err-100
- Specification/Standard Data [ZZZK]
- 81343-Sae 20R1 Professional/Industrial Association Standard
- Temp Rating [ABJH]
- -40.0 Deg Fahrenheit Single Response And 350.0 Deg Fahrenheit Single Response
Weapon Systems (WSDC) 4720-01-418-6516
DLA Procurement Analysis 4720-01-418-6516
- Last Stock Position:
- 806 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4720-01-418-6516
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 4720-01-418-6516
Freight Information 4720-01-418-6516
4720-01-418-6516 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 195040. A Sub NMFC of X. It has a NMFC Description of WASTE:HOSE FABRIC RUBR COMB. 4720-01-418-6516 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 95540 which rates the freight between FCL and LCL. 4720-01-418-6516 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4720-01-418-6516 is not classified as a special type of cargo when transported by water. 4720-01-418-6516 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4720-01-418-6516
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 4720-01-418-6516 13 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7LX23F877X
- 09 Mar 2023
- Subscribe
- 160
- Subscribe
- Subscribe
- Subscribe
- SPE7LX23F877X
- 09 Mar 2023
- Subscribe
- 160
- Subscribe
- Subscribe
- Subscribe
- SPE7LX22F985X
- 23 Mar 2022
- Subscribe
- 357
- Subscribe
- Subscribe
- Subscribe
- SPE7LX22F985X
- 23 Mar 2022
- Subscribe
- 357
- Subscribe
- Subscribe
- Subscribe
- SPE7M118FARUC
- 28 Jun 2018
- Subscribe
- 311
- Subscribe
- Subscribe
- Subscribe
- SPE7M118FAFZP
- 17 May 2018
- Subscribe
- 273
- Subscribe
- Subscribe
- Subscribe
- SPE7M118FAF7S
- 01 Feb 2018
- Subscribe
- 776
- Subscribe
- Subscribe
- Subscribe
- SPE7M118FA7UP
- 14 Dec 2017
- Subscribe
- 275
- Subscribe
- Subscribe
- Subscribe
- SPE7LX15D0065227501
- 28 Sep 2017
- Subscribe
- 207
- Subscribe
- Subscribe
- Subscribe
- SPE7LX15D0065210501
- 20 Jul 2017
- Subscribe
- 877
- Subscribe
- Subscribe
- Subscribe
- SPE7LX15D00651161
- 31 Dec 2015
- Subscribe
- 175
- Subscribe
- Subscribe
- Subscribe
- SPM7LX08D902842GV
- 04 Sep 2014
- Subscribe
- 1367
- Subscribe
- Subscribe
- Subscribe
- SPM7LX08D9028398M
- 14 Jun 2013
- Subscribe
- 738
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4720-01-418-6516 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
