4720-01-251-5264

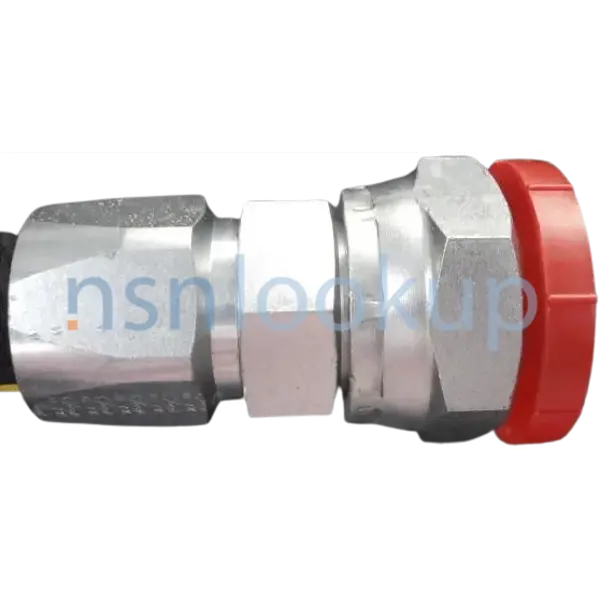

Nonmetallic Hose Assembly
4720012515264 012515264 MIL-DTL-13444 FK1143NNN0673 243001-20-0660 MS52103Z-200660R MS52103A200660R FA5783NNN0685
A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING. View more Nonmetallic Hose Assembly
Managed by United States
NSN Created on 19 Mar 1987
Data Last Changed
July 2025
July 2025
NATO Update Count
19
19
NATO Data Quality
Marketplace 4720-01-251-5264
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
MS52103A200660R HOSE ASSY 1 AY NS
MS52103Z200660R HOSE ASSY 16 AY NS
MS52103Z200660R HOSE ASSY 1 AY NS
MS52103Z200660R HOSE ASSY 1 AY NS
243001-20-0660 RQST NE
Updated Every Day 4720-01-251-5264 RQST NE
Updated Every Day 4720-01-251-5264 RQST
Updated Every Day 4720-01-251-5264 RQST NE
Related Documents 4720-01-251-5264 5+ Documents (More...)
MIL-DTL-13444 FK1143NNN0673 243001-20-0660 MS52103Z-200660R MS52103A200660R FA5783NNN0685 A length of
RQST NE Updated Every Day 4720-01-251-5264 RQST NE Updated Every Day 4720-01-251-5264 RQST Updated
Every Day 4720-01-251-5264 RQST NE Related Documents 4720-01-251-5264 5+ Documents ( More... ) https
RQST NE Updated Every Day 4720-01-251-5264 RQST NE Updated Every Day 4720-01-251-5264 RQST Updated
Every Day 4720-01-251-5264 RQST NE Related Documents 4720-01-251-5264 5+ Documents ( More... ) https
Upgrade your Account Upgrade 4720-01-177-4712Nonmetallic Hose Assembly4720011774712 011774712 MIL-DTL-13444
243001-8-0380 FK1143HHH0387 MS52103Z-080380R FA5783HHH0387 MS52103A080380R MIL-DTL-13444/1 MS52103Z080380R
MIL-DTL-13444 HOSE ASSEMBLY,NONMETALLIC 26 EA NS Request Quotation Subscribe to View Vendor Details..
243001-8-0380 FK1143HHH0387 MS52103Z-080380R FA5783HHH0387 MS52103A080380R MIL-DTL-13444/1 MS52103Z080380R
MIL-DTL-13444 HOSE ASSEMBLY,NONMETALLIC 26 EA NS Request Quotation Subscribe to View Vendor Details..
Upgrade your Account Upgrade 4720-01-251-5266Nonmetallic Hose Assembly4720012515266 012515266 MIL-DTL-13444
243001-8-0720 FK1143HHH0736 MS52103A080720R MS52103Z-080720R MIL-DTL-13444/1 FA5783HHH0736 A length
MIL-DTL-13444 HOSE ASSEMBLY,NONMETALLIC 26 AY NS Request Quotation Subscribe to View Vendor Details..
243001-8-0720 FK1143HHH0736 MS52103A080720R MS52103Z-080720R MIL-DTL-13444/1 FA5783HHH0736 A length
MIL-DTL-13444 HOSE ASSEMBLY,NONMETALLIC 26 AY NS Request Quotation Subscribe to View Vendor Details..
MIL-DTL-13444 HOSE ASSEMBLY,NONMETALLIC 26 EA NS Request Quotation Updated Every Day 4720-01-413-3125
MIL-DTL-13444 HOSE ASSEMBLY,NONMETALLIC 26 EA NS Request Quotation Updated Every Day 4720-01-413-3125
HOSE ASSEMBLY,NONMETALLIC 26 EA NS Request Quotation Updated Every Day 4720-01-491-3987 MIL-DTL-13444
MIL-DTL-13444 HOSE ASSEMBLY,NONMETALLIC 26 EA NS Request Quotation Updated Every Day 4720-01-413-3125
HOSE ASSEMBLY,NONMETALLIC 26 EA NS Request Quotation Updated Every Day 4720-01-491-3987 MIL-DTL-13444
MIL-DTL-13444 HOSE ASSEMBLY,NONMETALLIC 26 EA NS Request Quotation Subscribe to View Vendor Details..
MIL-DTL-13444 HOSE ASSEMBLY,NONMETALLIC 40 EA NS Request Quotation Subscribe to View Vendor Details..
MIL-DTL-13444 HOSE ASSEMBLY,NONMETALLIC 26 EA NS Request Quotation Subscribe to View Vendor Details.
MIL-DTL-13444 HOSE ASSEMBLY,NONMETALLIC 40 EA NS Request Quotation Subscribe to View Vendor Details..
MIL-DTL-13444 HOSE ASSEMBLY,NONMETALLIC 26 EA NS Request Quotation Subscribe to View Vendor Details.
Restrictions 4720-01-251-5264
4720-01-251-5264 is a Nonmetallic Hose Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4720-01-251-5264
- US Army (A920)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Canada (ZC01)
- Effective Date:
- 1 Oct 2001
- Turkey (ZW01)
- Effective Date:
- 1 Feb 2004
Approved Sources 4720-01-251-5264
- Part Number
- Manufacturer
- Status
- MS52103Z-200660R
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-13444
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- FK1143NNN0673
- 01276 - Danfoss Power Solutions Ii, Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 243001-20-0660
- 98441 - Parker Hannifin Corp (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS52103A200660R
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- FA5783NNN0685
- 01276 - Danfoss Power Solutions Ii, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4720012515264
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- MS52103A200660R
- T0720 - Fnss Savunma Sistemleri Anonim (Active)
- Related NATO Reproduction
- Related NATO Reproduction
Datasheet 4720-01-251-5264
- Characteristic
- Specifications
- FIIG
- Specifications
- A542A0
- End Connection Design [AKUU]
- Straight 1St End
- End Item Identification [AGAV]
- 2350-01-219-7577
- Burst Test Pressure [CQBD]
- 1250.0 Pounds Per Square Inch
- Connection Style [AHNC]
- Swivel Nut Flare 1St End
- Connection Type [AWLS]
- Threaded Internal Tube 1St End
- Cross-Sectional Shape Style [AAGR]
- Round
- Features Provided [CBBL]
- Reusable End Fittings
- Hydrostatic Test Pressure [CRDW]
- 625.0 Pounds Per Square Inch
- Maximum Operating Pressure [CQGM]
- 300.0 Pounds Per Square Inch
- Measuring Method And Length [CRXX]
- 66.000 Inches Nominal Working
- Media For Which Designed [MEDA]
- Fuel/Oil, Hydrocarbon Single Response
- Minimum Inside Bending Radius [ACKH]
- 9.000 Inches
- Nominal Thread Size [CQJX]
- 1.625 Inches 1St End
- Outer Covering Environmental Protection [CRJM]
- Fuel Resistant And Oil Resistant And Ozone Resistant And Mildew Resistant And Vibration Resistant
- Outside Diameter [ABKV]
- 1.484 Inches Nominal
- Inside Diameter [AARX]
- 1.125 Inches Nominal
- Inside Surface Condition [CRWL]
- Smooth
- Layer Composition And Location [CQCS]
- 1St Layer Braided Textile Yarn And 2Nd Layer Braided Wire And Outer Layer Rubber Impregnated Braided Fabric
- Seat Angle [CQRB]
- 37.0 Degrees 1St End
- Thread Quantity Per Inch [CMLP]
- 12 1St End
- Thread Series Designator [THSD]
- Un 1St End
- Vacuum In Torr [CRSM]
- 508.0
- Specification/Standard Data [ZZZK]
- 96906-Ms52103 Government Standard
- Temp Rating [ABJH]
- -55.0 Deg Fahrenheit And 300.0 Deg Fahrenheit Single Response
- Thread Class [AAJD]
- 2B 1St End
- Thread Direction [AAJF]
- Right-Hand 1St End
Weapon Systems (WSDC) 4720-01-251-5264
DLA Procurement Analysis 4720-01-251-5264
- Last Stock Position:
- 16 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4720-01-251-5264
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4720-01-251-5264
4930-98-855-1116 4720-99-845-9126 4720-14-311-2847 4720-14-269-0904 4720-21-913-4339 4720-14-277-3699 4720-15-118-9773 4720-14-308-8664 4720-17-114-6295 4720-99-477-5829 4720-12-341-5895 4720-12-330-2083 4720-99-477-5984 4720-17-124-9106 4720-27-053-5411 4720-99-374-7025 4720-12-353-8651 4720-99-580-4201
Freight Information 4720-01-251-5264
4720-01-251-5264 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051140. A Sub NMFC of Z. It has a NMFC Description of HOSE:NOI TUBING. 4720-01-251-5264 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 52350 which rates the freight between FCL and LCL. 4720-01-251-5264 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4720-01-251-5264 is not classified as a special type of cargo when transported by water. 4720-01-251-5264 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4720-01-251-5264
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- Type I, shelf life
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 4720-01-251-5264 25 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M123P6189
- 22 Jun 2023
- Subscribe
- 391
- Subscribe
- Subscribe
- Subscribe
- SPE7M123P5801
- 19 May 2023
- Subscribe
- 135
- Subscribe
- Subscribe
- Subscribe
- SPE7M122P4753
- 30 Mar 2022
- Subscribe
- 168
- Subscribe
- Subscribe
- Subscribe
- SPE7MX22F6254
- 21 Dec 2021
- Subscribe
- 46
- Subscribe
- Subscribe
- Subscribe
- SPE7MX22F6254
- 21 Dec 2021
- Subscribe
- 46
- Subscribe
- Subscribe
- Subscribe
- SPE7LX19F1280
- 21 Dec 2018
- Subscribe
- 87
- Subscribe
- Subscribe
- Subscribe
- SPE7LX19F0426
- 31 Oct 2018
- Subscribe
- 111
- Subscribe
- Subscribe
- Subscribe
- SPE7M118F34H4
- 31 Dec 2017
- Subscribe
- 187
- Subscribe
- Subscribe
- Subscribe
- SPE7M417V0974
- 17 Feb 2017
- Subscribe
- 289
- Subscribe
- Subscribe
- Subscribe
- SPE7M417V0491
- 20 Dec 2016
- Subscribe
- 345
- Subscribe
- Subscribe
- Subscribe
- SPM7MX14D00150051
- 28 Oct 2016
- Subscribe
- 96
- Subscribe
- Subscribe
- Subscribe
- SPM7MX14D00150046
- 29 Sep 2016
- Subscribe
- 144
- Subscribe
- Subscribe
- Subscribe
- SPM7MX14D00150045
- 08 Sep 2016
- Subscribe
- 133
- Subscribe
- Subscribe
- Subscribe
- SPM7MX14D00150041
- 12 Aug 2016
- Subscribe
- 49
- Subscribe
- Subscribe
- Subscribe
- SPM7MX14D00150040
- 05 Jun 2016
- Subscribe
- 50
- Subscribe
- Subscribe
- Subscribe
- SPM7MX14D00150030
- 19 Jan 2016
- Subscribe
- 66
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D70600140
- 17 Sep 2015
- Subscribe
- 69
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D70600139
- 02 Sep 2015
- Subscribe
- 40
- Subscribe
- Subscribe
- Subscribe
- SPM7MX14D00150020
- 02 Sep 2015
- Subscribe
- 21
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D70600135
- 17 Jul 2015
- Subscribe
- 56
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D70600123
- 27 May 2015
- Subscribe
- 77
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D70600117
- 01 Apr 2015
- Subscribe
- 35
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D70600116
- 02 Mar 2015
- Subscribe
- 36
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D70600092
- 04 Nov 2013
- Subscribe
- 267
- Subscribe
- Subscribe
- Subscribe
- SPM7MX10D70600086
- 18 Apr 2013
- Subscribe
- 108
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4720-01-251-5264 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
