4720-01-210-6912
Nonmetallic Hose
4720012106912 012106912 FC350-16 47460AX
A flexible, tubular item having a nonmetallic tube inner conveying surface and one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, or solids. For items with fittings on one or both ends, see HOSE ASSEMBLY, NONMETALLIC. Excludes HOSE, AIR DUCT; and HOSE AIR DUCT, AIR BREATHING. View more Nonmetallic Hose
November 2023
14
Marketplace 4720-01-210-6912
Request a Quotation from participating marketplace vendors
Related Documents 4720-01-210-6912 3+ Documents (More...)

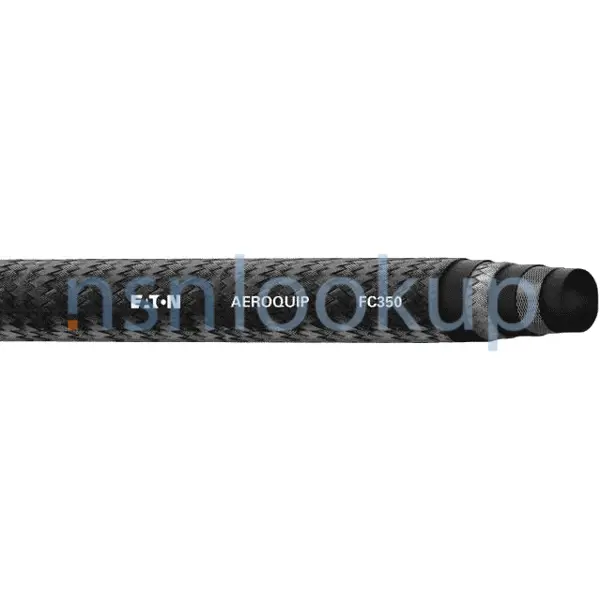

Photo 1/2 NSN 4720-01-210-6912 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 4720-01-210-6912 RQST Updated Every Day 4720-01-210-6912 RQST NE Related
//www.nsnlookup.com /fsg-47/fsc-4720/de 4720-12-330-7780 Nonmetallic Hose 4720123307780123307780 FC350-16
enable JavaScript in your web browser . 4720-12-339-3545Nonmetallic Hose4720123393545 123393545 FC350-16
//www.nsnlookup.com /fsg-47/fsc-4720/de 4720-12-339-3545 Nonmetallic Hose 4720123393545123393545 FC350-16
enable JavaScript in your web browser . 4720-12-339-3545Nonmetallic Hose4720123393545 123393545 FC350-16
Restrictions 4720-01-210-6912
4720-01-210-6912 is a Nonmetallic Hose that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4720-01-210-6912
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBD
- US Air Force (FXGC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 21 Nov 2012
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Australia (ZA01)
- Effective Date:
- 1 May 1996
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2011
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
Approved Sources 4720-01-210-6912
- Part Number
- Manufacturer
- Status
- FC350-16
- Manufacturer
- 01276 - Danfoss Power Solutions Ii, Llc (Active)
- Primary Buy
- Primary Buy
- 47460AX
- 75Q65 - Oshkosh Defense Llc (Active)
- Secondary Buy
- Secondary Buy
- 47460AX
- 45152 - Oshkosh Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4720012106912
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 4720-01-210-6912
- Characteristic
- Specifications
- FIIG
- Specifications
- A541Z0
- Burst Test Pressure [CQBD]
- 1600.0 Pounds Per Square Inch Single Response
- Cross-Sectional Shape Style [AAGR]
- Round
- Hydrostatic Test Pressure [CRDW]
- 800.0 Pounds Per Square Inch Single Response
- Material [MATT]
- Plastic Tube
- Maximum Operating Pressure [CQGM]
- 400.0 Pounds Per Square Inch Single Response
- Minimum Inside Bending Radius [ACKH]
- 3.500 Inches
- Outside Diameter [ABKV]
- 1.230 Inches Nominal
- Inside Diameter [AARX]
- 0.880 Inches Nominal
- Inside Surface Condition [CRWL]
- Smooth
- Layer Composition And Location [CQCS]
- 1St Layer Braided Polyester Cord Err-100
- Layer Composition And Location [CQCS]
- Outer Layer Braided Polyester Cord Err-100
- Layer Composition And Location [CQCS]
- 2Nd Layer Braided Wire Err-100
- Vacuum In Torr [CRSM]
- 381.0
- Specification/Standard Data [ZZZK]
- 81343-Saej1402 Professional/Industrial Association Standard
- Temp Rating [ABJH]
- -55.0 Deg Fahrenheit Single Response And 300.0 Deg Fahrenheit Single Response
Weapon Systems (WSDC) 4720-01-210-6912
DLA Procurement Analysis 4720-01-210-6912
- Last Stock Position:
- 3285 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4720-01-210-6912
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4720-01-210-6912
Freight Information 4720-01-210-6912
4720-01-210-6912 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051140. A Sub NMFC of Z. It has a NMFC Description of HOSE:NOI TUBING. 4720-01-210-6912 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 52350 which rates the freight between FCL and LCL. 4720-01-210-6912 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4720-01-210-6912 is not classified as a special type of cargo when transported by water. 4720-01-210-6912 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4720-01-210-6912
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 4720-01-210-6912 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
