4720-01-153-9780
Metallic Hose Assembly
4720011539780 011539780 FMH30 RW1X4202 105434 A200113
A length of metallic hose with fittings on one or both ends. For items without fittings, see HOSE, METALLIC. Excludes CONDUIT, ELECTRICAL; CONDUIT ASSEMBLY, ELECTRICAL; CASING, FLEXIBLE CONTROL; and CASING, FLEXIBLE SHAFT ASSEMBLY. View more Metallic Hose Assembly
November 2023
16
Marketplace 4720-01-153-9780
Request a Quotation from participating marketplace vendors
Related Documents 4720-01-153-9780 5+ Documents (More...)
RW1X4202 HOSE ASSEMBLY,METALLIC 21 EA NS Request Quotation Updated Every Day 4720-01-153-9780 RQST NE
Metallic Hose Assembly 4720011539780,FMH30 FMH30RW1X4202105434A200113 A length of metallic hose with
Metallic Hose Assembly 4720011539780,FMH30 (Identification) 1/2 NSN 4720-01-153-9780 (Identification
Updated Every Day 4720-01-153-9780 RQST Updated Every Day 4720-01-153-9780 RQST NE Related Documents
//www.nsnlookup.com /fsg-53/fsc-5310/fr 5310-14-211-6685 Hexagon Plain Nut 5310142116685142116685 105434
www.nsnlookup.com /fsg-61/fsc-6150/tr 6150-27-050 105434 www.nsnlookup.com /fsg-61/fsc-6150/tr https
4-85-105434 3103141-2 Managed by France NSN Created on 30 Jan 1982 Data Last Changed January 2023 NATO
www.nsnlookup.com /fsg-61/fsc-6150/tr 6150- 105434 www.nsnlookup.com /fsg-61/fsc-6150/tr 6150-27-050
//www.nsnlookup.com /fsg-47/fsc-4720/us 4720-01-644-3177 Metallic Hose Assembly 472001644317745SP-105434
day Upgrade your Account Upgrade 4720-01-644-3177Metallic Hose Assembly4720016443177 01644317745SP-105434
Restrictions 4720-01-153-9780
4720-01-153-9780 is a Metallic Hose Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4720-01-153-9780
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4720-01-153-9780
- US Air Force (FGGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FGAX
- Supplementary Collaborators:
- SP
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
- Poland (WP01)
- Effective Date:
- 1 Apr 2007
- Spain (YB01)
- Effective Date:
- 1 Apr 2014
- Singapore (YJ01)
- Effective Date:
- 1 May 1996
- Canada (ZC01)
- Effective Date:
- 1 Mar 2015
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 2015
- Netherlands (ZN01)
- Effective Date:
- 1 Mar 2008
- Denmark (ZS01)
- Effective Date:
- 1 Mar 2015
Approved Sources 4720-01-153-9780
- Part Number
- Manufacturer
- Status
- FMH30
- Manufacturer
- 60535 - Flexible Metal Inc (Active)
- Primary Buy
- Primary Buy
- RW1X4202
- 0E7C5 - Flex-Ing Products (Active)
- Secondary Buy
- Secondary Buy
- 105434
- 70510 - Hyspan Precision Products, Inc. (Active)
- Secondary Buy
- Secondary Buy
- A200113
- 60535 - Flexible Metal Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4720-01-153-9780
- Characteristic
- Specifications
- FIIG
- Specifications
- A542A0
- End Connection Design [AKUU]
- Straight 1St End
- End Connection Design [AKUU]
- Straight 2Nd End
- Connection Style [AHNC]
- Flared 1St End
- Connection Style [AHNC]
- Swivel Nut, Inverted Flare 2Nd End
- Connection Type [AWLS]
- Threaded External Tube 1St End
- Connection Type [AWLS]
- Threaded Internal Pipe 2Nd End
- Cross-Sectional Shape Style [AAGR]
- Round
- Measuring Method And Length [CRXX]
- 42.000 Inches Nominal Overall
- Media For Which Designed [MEDA]
- Oxygen, Gaseous Single Response

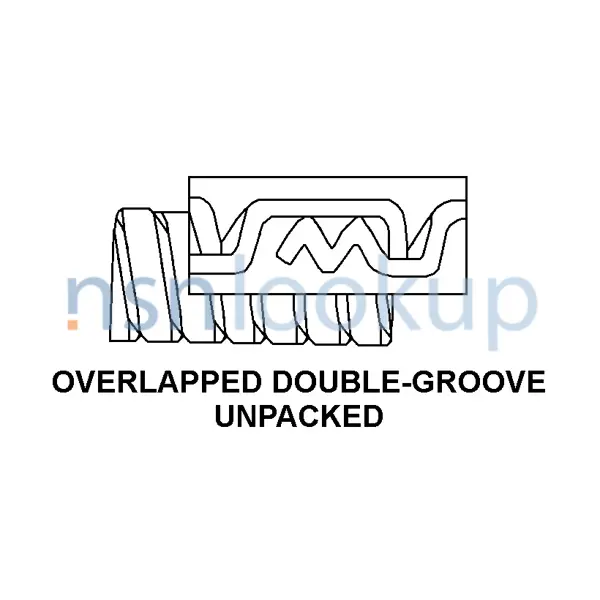

- Inner Conveying Tube Style [ADJL]
- Overlapped Double-Groove Unpacked
- Special Features [FEAT]
- For Oxygen Use
- Thread Direction [AAJF]
- Right-Hand 1St End
- Thread Direction [AAJF]
- Right-Hand 2Nd End
- Thread Series Designator [THSD]
- Npt 1St End
- Thread Series Designator [THSD]
- Npt 2Nd End
Weapon Systems (WSDC) 4720-01-153-9780
DLA Procurement Analysis 4720-01-153-9780
- Last Stock Position:
- 341 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4720-01-153-9780
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4720-01-153-9780
Freight Information 4720-01-153-9780
4720-01-153-9780 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051140. A Sub NMFC of Z. It has a NMFC Description of HOSE:NOI TUBING. 4720-01-153-9780 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 4720-01-153-9780 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 52350 which rates the freight between FCL and LCL. 4720-01-153-9780 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4720-01-153-9780 is not classified as a special type of cargo when transported by water. 4720-01-153-9780 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4720-01-153-9780
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 4720-01-153-9780 4 Records
Contracting Technical Data File (CTDF) 4720-01-153-9780 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
