4720-01-122-5863

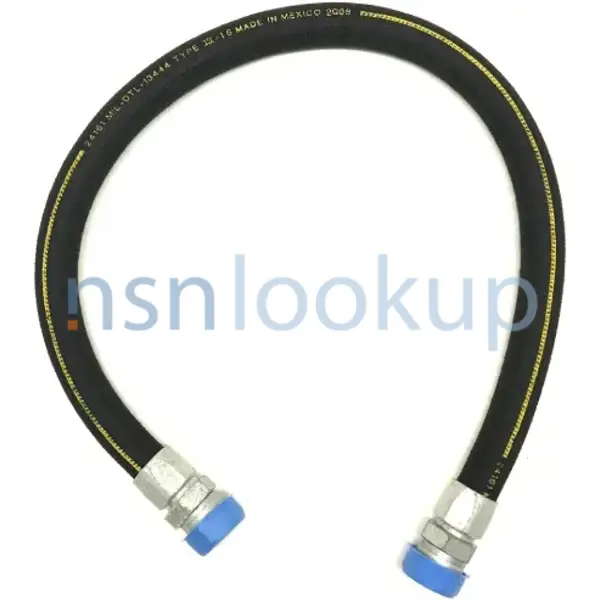

Nonmetallic Hose Assembly
4720011225863 011225863 MIL-DTL-13444 243001-16-0400 FA5783MMM0412 MS52103Z-160400R 04251572202248 MS52103A160400R MIL-H-13444 10086081
A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING. View more Nonmetallic Hose Assembly
Managed by United States
NSN Created on 25 Nov 1981
Data Last Changed
March 2025
March 2025
NATO Update Count
43
43
NATO Data Quality
Marketplace 4720-01-122-5863
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4720-01-122-5863 5+ Documents (More...)
MIL-DTL-13444 243001-16-0400 FA5783MMM0412 MS52103Z-160400R 04251572202248 MIL-H-13444 MS52103A160400R
RQST NE Updated Every Day 4720-01-122-5863 RQST NE Updated Every Day 4720-01-122-5863 RQST Updated
Every Day 4720-01-122-5863 RQST NE Related Documents 4720-01-122-5863 5+ Documents ( More... ) https
RQST NE Updated Every Day 4720-01-122-5863 RQST NE Updated Every Day 4720-01-122-5863 RQST Updated
Every Day 4720-01-122-5863 RQST NE Related Documents 4720-01-122-5863 5+ Documents ( More... ) https
737-2837 4720-00-083-0044 4720-00-998-6399 4720-01-563-6517 4720-01-391-7014 4720-00-678-3285 4720-01-122-5863
737-2837 4720-00-083-0044 4720-00-998-6399 4720-01-563-6517 4720-01-391-7014 4720-00-678-3285 4720-01-122-5863
737-2837 4720-00-083-0044 4720-00-998-6399 4720-01-563-6517 4720-01-391-7014 4720-00-678-3285 4720-01-122-5863
737-2837 4720-00-083-0044 4720-00-998-6399 4720-01-563-6517 4720-01-391-7014 4720-00-678-3285 4720-01-122-5863
Restrictions 4720-01-122-5863
4720-01-122-5863 is a Nonmetallic Hose Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4720-01-122-5863
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBD
- US Air Force (FXGC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FXAX
- Finland (WF01)
- Effective Date:
- 1 Feb 2008
- Brazil (YA01)
- Effective Date:
- 1 Oct 2000
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1998
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Oct 1997
- Norway (ZT01)
- Effective Date:
- 1 Feb 1997
- Greece (ZU01)
- Effective Date:
- 1 May 2006
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4720-01-122-5863
- Part Number
- Manufacturer
- Status
- MS52103Z-160400R
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-13444
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 243001-16-0400
- 98441 - Parker Hannifin Corp (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- FA5783MMM0412
- 01276 - Danfoss Power Solutions Ii, Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 04251572202248
- C0828 - Hil Gmbh Werk St. Wendel (Active)
- Secondary Buy
- Secondary Buy
- MS52103A160400R
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-H-13444
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10086081
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 4720-01-122-5863
- Characteristic
- Specifications
- FIIG
- Specifications
- A542A0
- End Connection Design [AKUU]
- Straight 1St End
- Burst Test Pressure [CQBD]
- 1500.0 Pounds Per Square Inch
- Connection Style [AHNC]
- Swivel Nut Flare 1St End
- Connection Type [AWLS]
- Threaded Internal Tube 1St End
- Cross-Sectional Shape Style [AAGR]
- Round
- Features Provided [CBBL]
- Reusable End Fittings
- Hydrostatic Test Pressure [CRDW]
- 750.0 Pounds Per Square Inch
- Maximum Operating Pressure [CQGM]
- 375.0 Pounds Per Square Inch
- Measuring Method And Length [CRXX]
- 40.000 Inches Nominal Working
- Media For Which Designed [MEDA]
- Fuel/Oil, Hydrocarbon Single Response
- Minimum Inside Bending Radius [ACKH]
- 7.375 Inches
- Nominal Thread Size [CQJX]
- 1.312 Inches 1St End
- Outer Covering Environmental Protection [CRJM]
- Fuel Resistant And Mildew Resistant And Oil Resistant And Ozone Resistant
- Outside Diameter [ABKV]
- 1.203 Inches Nominal
- Inside Diameter [AARX]
- 0.875 Inches Nominal
- Inside Surface Condition [CRWL]
- Smooth
- Layer Composition And Location [CQCS]
- 1St Layer Braided Textile Yarn And 2Nd Layer Braided Wire And Outer Layer Rubber Impregnated Braided Fabric
- Seat Angle [CQRB]
- 37.0 Degrees 1St End
- Vacuum In Torr [CRSM]
- 381.0
- Specification/Standard Data [ZZZK]
- 96906-Ms52103 Government Specification
- Temp Rating [ABJH]
- -55.0 Deg Fahrenheit And 300.0 Deg Fahrenheit Single Response
- Thread Class [AAJD]
- 2B 1St End
- Thread Direction [AAJF]
- Right-Hand 1St End
- Thread Series Designator [THSD]
- Un 1St End
- Thread Quantity Per Inch [CMLP]
- 12 1St End
Weapon Systems (WSDC) 4720-01-122-5863
DLA Procurement Analysis 4720-01-122-5863
- Last Stock Position:
- 165 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4720-01-122-5863
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- MM
- Armored Carriers
Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavalry Fighting Vehicle (M3, M3A1, M3A2)
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 4720-01-122-5863
Freight Information 4720-01-122-5863
4720-01-122-5863 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051140. A Sub NMFC of Z. It has a NMFC Description of HOSE:NOI TUBING. 4720-01-122-5863 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 52350 which rates the freight between FCL and LCL. 4720-01-122-5863 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4720-01-122-5863 is not classified as a special type of cargo when transported by water. 4720-01-122-5863 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4720-01-122-5863
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 44.0" H x 4.0" W x 1.0" L
- --
- --
- --
- Any Suitable Process
- 44.0" H x 4.0" W x 1.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- Type I, shelf life
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 4720-01-122-5863 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M123P7827
- 21 Aug 2023
- Subscribe
- 142
- Subscribe
- Subscribe
- Subscribe
- SPE7M422V2609
- 24 Mar 2022
- Subscribe
- 176
- Subscribe
- Subscribe
- Subscribe
- SPE7M421V3848
- 21 Sep 2021
- Subscribe
- 294
- Subscribe
- Subscribe
- Subscribe
- SPE7M421P1061
- 20 Apr 2021
- Subscribe
- 178
- Subscribe
- Subscribe
- Subscribe
- SPE7MC19P0400
- 17 Oct 2018
- Subscribe
- 277
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4720-01-122-5863 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
