4720-01-096-7416

Metallic Hose Assembly

4720010967416 010967416 105885 A200150 MIL-PRF-83772 353-024-5005 50C-0014-0170 A200020 4720PL1804053

A length of metallic hose with fittings on one or both ends. For items without fittings, see HOSE, METALLIC. Excludes CONDUIT, ELECTRICAL; CONDUIT ASSEMBLY, ELECTRICAL; CASING, FLEXIBLE CONTROL; and CASING, FLEXIBLE SHAFT ASSEMBLY. View more Metallic Hose Assembly

Managed by United States

NSN Created on 27 Jun 1980

Data Last Changed
November 2023

NATO Update Count
60

NATO Data Quality

AAGR Style A1 for 4720-01-096-7416 1/2 — NSN 4720-01-096-7416 (Identification) 1/2

ADJL Style B6 for 4720-01-096-7416 2/2 — NSN 4720-01-096-7416 (Identification) 2/2

Marketplace 4720-01-096-7416

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

50C0014-0170 HOSE ASSEMBLY,METALLIC 52 EA NS

A200020 HOSE ASSEMBLY,METALLIC 52 EA NS

A200150 HOSE ASSEMBLY,METALLIC 52 EA NS

MIL-PRF-83772 HOSE ASSEMBLY,METALLIC 34 EA NS

353-024-5005 HOSE ASSEMBLY,METALLIC 52 EA NS

Subscribe to View Vendor Details...

105885 HOSE ASSEMBLY,METALLIC 40 EA NS

Subscribe to View Vendor Details...

105885 HOSE ASSEMBLY,METALLIC 1 EA NS

Subscribe to View Vendor Details...

A200150 HOSE ASSEMBLY,METALLIC 52 EA NS

Updated Every Day

4720-01-096-7416 RQST NE

Updated Every Day

4720-01-096-7416 RQST

Updated Every Day

4720-01-096-7416 RQST NE

Restrictions 4720-01-096-7416

4720-01-096-7416 is a Metallic Hose Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 4720-01-096-7416

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 4720-01-096-7416

US Air Force (FGGC)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FGAX
Supplementary Collaborators:: SP; AMC 1 AMSC G IMC Z IMCACTY TG

NASA (G860)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Navy (N9BC)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9CD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC G IMC Z IMCACTY GH

Poland (WP01)
Effective Date:: 1 Feb 2007

Slovakia (WS01)
Effective Date:: 1 Aug 2011

Brazil (YA01)
Effective Date:: 1 Jul 2008

Spain (YB01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Jan 2004

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 May 2008

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Jan 2014

Approved Sources 4720-01-096-7416

Part Number
Manufacturer
Status
MIL-PRF-83772: 81349 - Military Specifications (Active); Definitive Standard; RNCC 2 RNVC 2 DAC 3
105885: 70510 - Hyspan Precision Products, Inc. (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 2
A200150: 60535 - Flexible Metal Inc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 4
353-024-5005: 96142 - Senior Holdings Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
50C-0014-0170: 19062 - Essex Industries, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
A200020: 60535 - Flexible Metal Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 2
4720PL1804053: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 4720-01-096-7416

Characteristic
Specifications
FIIG: A542A0
End Connection Design [AKUU]: Straight 1St End
End Connection Design [AKUU]: Straight 2Nd End
Connection Style [AHNC]: Flared 1St End
Connection Type [AWLS]: Threaded External Tube 1St End
Cross-Sectional Shape Style [AAGR]: Round
Features Provided [CBBL]: Identical Ends
Maximum Operating Pressure [CQGM]: 150.0 Pounds Per Square Inch
Measuring Method And Length [CRXX]: 10.000 Feet Nominal Excluding End Fittings
Nominal Thread Size [CQJX]: 1.000 Inches 1St End
Outside Diameter [ABKV]: 0.950 Inches Nominal

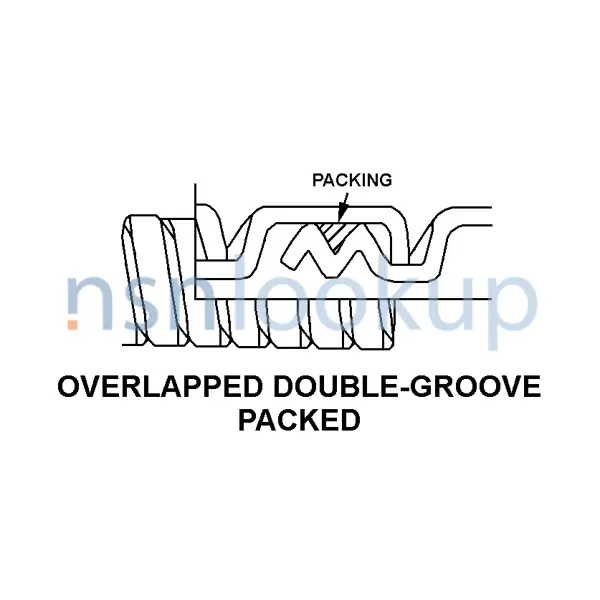

Inner Conveying Tube Style [ADJL]: Overlapped Double-Groove Packed
Inside Diameter [AARX]: 0.375 Inches Nominal
Layer Composition And Location [CQCS]: Outer Layer Braided Corrosion Resistant Steel Wire
Thread Direction [AAJF]: Right-Hand 1St End
Thread Series Designator [THSD]: Npt 1St End

Weapon Systems (WSDC) 4720-01-096-7416

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data
