4720-01-074-8373

Nonmetallic Hose

4720010748373 010748373 J3202187 3202187 FC107-06 340-1130-00-0 340-1130-25-0 0340-1130-01-0 624VLJ0004A 1D98404PK-002 134MNX1 1D98404PK FC350-06RL 002133T 5199575 H16606 3285-6 FC184-06 3286-6 SS25-6

A flexible, tubular item having a nonmetallic tube inner conveying surface and one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, or solids. For items with fittings on one or both ends, see HOSE ASSEMBLY, NONMETALLIC. Excludes HOSE, AIR DUCT; and HOSE AIR DUCT, AIR BREATHING. View more Nonmetallic Hose

Managed by United States

NSN Created on 8 Apr 1979

Data Last Changed
November 2023

NATO Update Count
71

NATO Data Quality

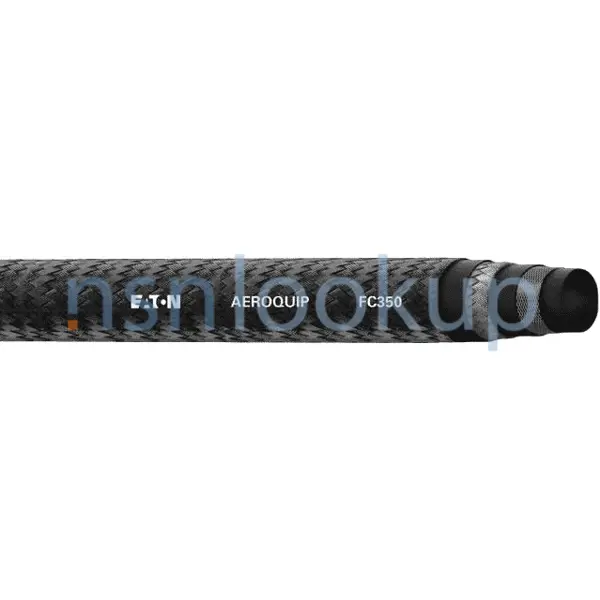

4720-01-074-8373 HOSE,NONMETALLIC 4720010748373 010748373 1/2 — 4720-01-074-8373 Photo 1/2

AAGR Style B1 for 4720-01-074-8373 2/2 — NSN 4720-01-074-8373 (Identification) 2/2

Marketplace 4720-01-074-8373

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

FC107-06 HOSE,NONMETALLIC 30 FT NS

Subscribe to View Vendor Details...

FC107-06 HOSE,NONMETALLIC 25 FT NS

Subscribe to View Vendor Details...

4720-01-074-8373 HOSE,NONMETALLIC 1 FT NS

Subscribe to View Vendor Details...

FC107-06 HOSE,NONMETALLIC 394 FT NS

Subscribe to View Vendor Details...

4720-01-074-8373 HOSE,NONMETALLIC 20 FT NS

4720-01-074-8373 RQST NE

Updated Every Day

4720-01-074-8373 RQST

Updated Every Day

4720-01-074-8373 RQST NE

Restrictions 4720-01-074-8373

4720-01-074-8373 is a Nonmetallic Hose that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 4720-01-074-8373

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 4720-01-074-8373

US Army (A920)
Effective Date:: 1 Jun 2006
Former MOE Rule:: A181
Supplementary Receivers:: AZBF; AMC 1 AMSC Z IMC Z IMCACTY CD

US Coast Guard (C911)
Effective Date:: 1 Jun 2006
Former MOE Rule:: C001; AMC 1 AMSC Z

US Air Force (FXGC)
Effective Date:: 1 Jun 2006
Former MOE Rule:: FXAX; AMC 1 AMSC Z IMC Z IMCACTY SX

US Marine Corps (MC40)
Effective Date:: 1 Jun 2006
Former MOE Rule:: MC01; AMC 1 AMSC Z IMC Z IMCACTY PA

US Navy (N9BC)
Effective Date:: 1 Dec 2013
Supplementary Collaborators:: GGGT; AMC 1 AMSC Z IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Brazil (YA01)
Effective Date:: 1 Dec 2001

Spain (YB01)
Effective Date:: 1 Apr 1991

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Malaysia (YW01)
Effective Date:: 1 Jun 1996

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Jun 1998

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Jan 2015

Republic of Korea (ZH01)
Effective Date:: 1 Aug 1995

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Jun 1997

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Jul 1995

Turkey (ZW01)
Effective Date:: 1 Nov 1998

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Sep 2004

Approved Sources 4720-01-074-8373

Part Number
Manufacturer
Status
FC350-06RL: 01276 - Danfoss Power Solutions Ii, Llc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 6
5199575: K0030 - Rheinmetall Bae Systems Land Limited (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 4
002133T: 59556 - Kovatch Corp. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
5199575: U5259 - Alvis Vehicles Ltd (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
H16606: 79470 - Dana Corp Weatherhead Div (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
3285-6: 98441 - Parker Hannifin Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
FC184-06: 01276 - Danfoss Power Solutions Ii, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
3286-6: 98441 - Parker Hannifin Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
SS25-6: 98441 - Parker Hannifin Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
5199575: T0720 - Fnss Savunma Sistemleri Anonim (Active); NATO Reproduction; RNCC 8 RNVC 2 DAC 6
J3202187: 99343 - Chrysler Corp Engine And Components (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
3202187: 99343 - Chrysler Corp Engine And Components (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
FC107-06: 01276 - Danfoss Power Solutions Ii, Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC E
340-1130-00-0: 26840 - Hale Products, Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
340-1130-25-0: 26840 - Hale Products, Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
0340-1130-01-0: 62684 - Protonics Engineering Corp (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
624VLJ0004A: 55207 - Arrow-Master, Incorporated (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
1D98404PK-002: 90099 - Northrop Grumman Systems Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
134MNX1: 05415 - Linde Lift Truck Corp. (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 6
1D98404PK: 90099 - Northrop Grumman Systems Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
5199575: 72582 - Rolls-Royce Solutions America Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 4720-01-074-8373

Characteristic
Specifications
FIIG: A541Z0
End Item Identification [AGAV]: Hemtt (Heavy Expanded Mobility Tactical Truck)
Burst Test Pressure [CQBD]: 2000.0 Pounds Per Square Inch Single Response
Criticality Code Justification [CRTL]: Feat
Cross-Sectional Shape Style [AAGR]: Round
Exterior Color [ADJS]: Black
Hydrostatic Test Pressure [CRDW]: 1000.0 Pounds Per Square Inch Single Response
Maximum Operating Pressure [CQGM]: 500.0 Pounds Per Square Inch Single Response
Minimum Inside Bending Radius [ACKH]: 2.000 Inches
Outer Covering Environmental Protection [CRJM]: Abrasion Resistant And Corrosion Resistant And Oil Resistant And Water Resistant
Outside Diameter [ABKV]: 0.670 Inches Nominal
Inside Diameter [AARX]: 0.310 Inches Nominal
Inside Surface Condition [CRWL]: Smooth
Layer Composition And Location [CQCS]: 1St Layer Braided Corrosion Resistant Steel Wire Or 2Nd Layer Braided Cotton Cord Or Outer Layer Rubber Impregnated Braided Fabric
Special Features [FEAT]: Weapon System Essential; Fuel Resistant And Hydraulic Fluid Resistant; Inner Conveying Tube Material: Rubber, Buna-N
Vacuum In Torr [CRSM]: 50.8
Specification/Standard Data [ZZZK]: 81343-Sae J1402 Professional/Industrial Association Standard
Temp Rating [ABJH]: -40.0 Deg Fahrenheit Single Response And 300.0 Deg Fahrenheit Single Response

Subscribe
View Data

DLA Procurement Analysis 4720-01-074-8373

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 4720-01-074-8373

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); FT; Subscribe
Oct 2021: Department of the Air Force (DF); FT; Subscribe; 1
Oct 2020: Department of the Air Force (DF); FT; Subscribe; 1
Mar 2019: Department of the Army (DA); FT; Subscribe
Sep 2011: Department of the Air Force (DF); FT; Subscribe; 1

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Material Identification:

B: Consumable Repair Parts

Operational Test:

: No Special Procedures

Similar Supply Items to 4720-01-074-8373

Freight Information 4720-01-074-8373

4720-01-074-8373 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051140. A Sub NMFC of Z. It has a NMFC Description of HOSE:NOI TUBING. 4720-01-074-8373 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 52350 which rates the freight between FCL and LCL. 4720-01-074-8373 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4720-01-074-8373 is not classified as a special type of cargo when transported by water. 4720-01-074-8373 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 4720-01-074-8373

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Non-Metallic Item; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; --; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; --; --; --; --; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --; No Requirement

Contracting Technical Data File (CTDF) 4720-01-074-8373 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: N

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
