4720-00-965-9319
Metallic Hose
4720009659319 009659319 EFSEALTITE1-2IN
A flexible, tubular item having a metallic tube inner conveying surface. It may have one or more reinforcement layers of a metallic or nonmetallic material. It is designed to convey gasses, liquids, solids, or sound waves. For items with fittings on one or both ends, see HOSE ASSEMBLY, METALLIC. For items used to protect electrical wires or cables, see CONDUIT, RACEWAY (AS MODIFIED). View more Metallic Hose
August 2023
4
Marketplace 4720-00-965-9319
Request a Quotation from participating marketplace vendors
Related Documents 4720-00-965-9319 1+ Documents (More...)
BUY NE FedMall Updated Every Day 4720-00-965-9319 RQST NE Updated Every Day 4720-00-965-9319 RQST
Updated Every Day 4720-00-965-9319 RQST NE Related Documents 4720-00-965-9319 1+ Documents ( More...
Restrictions 4720-00-965-9319
4720-00-965-9319 is a Metallic Hose that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4720-00-965-9319
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4720-00-965-9319
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- NASA (G880)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Supplementary Collaborators:
- GTHD
Approved Sources 4720-00-965-9319
- Part Number
- Manufacturer
- Status
- EFSEALTITE1-2IN
- Manufacturer
- 70510 - Hyspan Precision Products, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 4720-00-965-9319
- Characteristic
- Specifications
- FIIG
- Specifications
- A541Z0
- Cross-Sectional Shape Style [AAGR]
- Round
- Material [MATT]
- Steel Tube
- Minimum Inside Bending Radius [ACKH]
- 2.500 Inches
- Outside Diameter [ABKV]
- 0.830 Inches Nominal

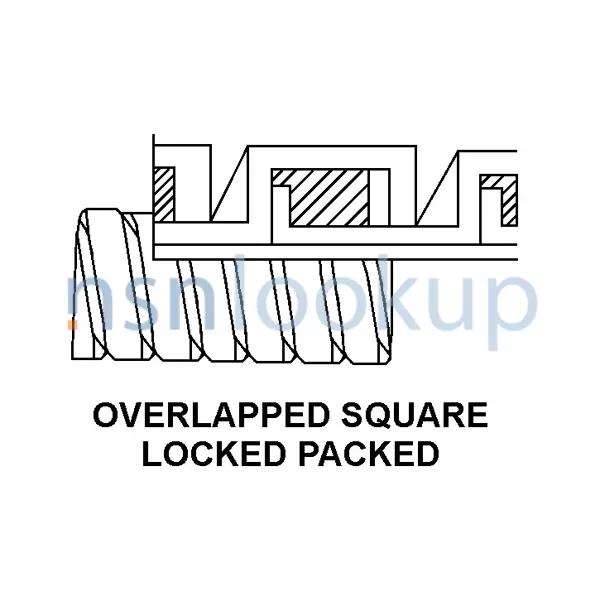

- Inner Conveying Tube Style [ADJL]
- Overlapped Square Locked Packed
- Inside Diameter [AARX]
- 0.630 Inches Nominal
- Special Features [FEAT]
- Inside Surface Treatment Is Zinc.
DLA Procurement Analysis 4720-00-965-9319
Management Data 4720-00-965-9319
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jan 2023
- Department of the Navy (DN)
- FT
- Subscribe
- 1
- FT
- Oct 2022
- Department of the Air Force (DF)
- FT
- Subscribe
- 1
- FT
- Oct 2021
- Department of the Air Force (DF)
- FT
- Subscribe
- 1
- FT
- Oct 2020
- Department of the Air Force (DF)
- FT
- Subscribe
- 1
- FT
- Oct 2019
- Department of the Air Force (DF)
- FT
- Subscribe
- 1
- FT
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4720-00-965-9319
Freight Information 4720-00-965-9319
4720-00-965-9319 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051140. A Sub NMFC of Z. It has a NMFC Description of HOSE:NOI TUBING. 4720-00-965-9319 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 52350 which rates the freight between FCL and LCL. 4720-00-965-9319 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4720-00-965-9319 is not classified as a special type of cargo when transported by water. 4720-00-965-9319 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4720-00-965-9319
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- No Requirement
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
