4720-00-883-2233

Nonmetallic Hose Assembly

4720008832233 008832233 MILH13531ATYPE1 10911835-2 4720001682846

A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING. View more Nonmetallic Hose Assembly

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
March 2025

NATO Update Count
23

NATO Data Quality

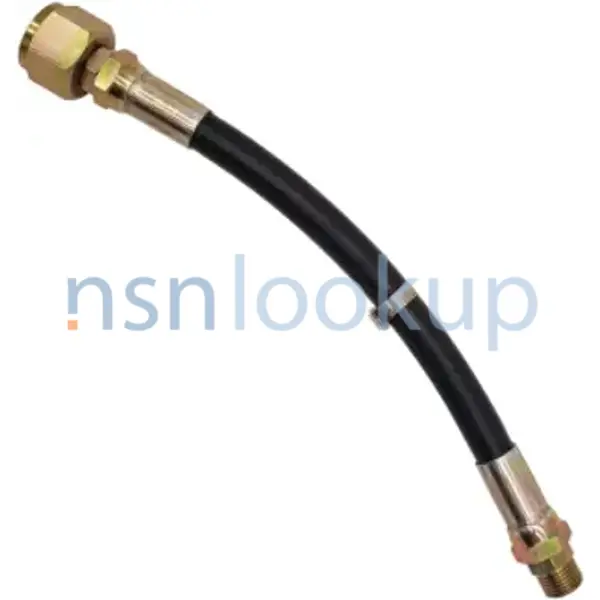

4720-00-883-2233 HOSE ASSEMBLY,NONMETALLIC 4720008832233 008832233 1/2 — 4720-00-883-2233 Photo 1/2

AAGR Style A1 for 4720-00-883-2233 2/2 — NSN 4720-00-883-2233 (Identification) 2/2

Marketplace 4720-00-883-2233

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

10911835-2 HOSE ASSEMBLY,NONMETALLIC 1 EA NS

Subscribe to View Vendor Details...

008832233.4720 HOSE ASSEMBLY,NONMETALLIC 396 EA NS

Updated Every Day

4720-00-883-2233 RQST NE

Updated Every Day

4720-00-883-2233 RQST

Updated Every Day

4720-00-883-2233 RQST NE

Restrictions 4720-00-883-2233

4720-00-883-2233 is a Nonmetallic Hose Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 4720-00-883-2233

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 4720-00-883-2233

US Army (A920)
Effective Date:: 1 Jul 2005
Former MOE Rule:: A181
Supplementary Receivers:: AZ; AMC 1 AMSC G IMC Z IMCACTY AZ

US Marine Corps (MC40)
Effective Date:: 1 Jul 2005
Former MOE Rule:: MC01; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BC)
Effective Date:: 1 Dec 2013
Supplementary Collaborators:: GG; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Spain (YB01)
Effective Date:: 1 Mar 2000

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Morocco (YP01)
Effective Date:: 1 Nov 2008

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Jul 1995

Turkey (ZW01)
Effective Date:: 1 Nov 2005

Approved Sources 4720-00-883-2233

Part Number
Manufacturer
Status
10911835-2: 19207 - U S Army Tank Automotive Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC X
MILH13531ATYPE1: 81349 - Military Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
4720001682846: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
4720001682846: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 4720-00-883-2233

Characteristic
Specifications
FIIG: A542A0
End Connection Design [AKUU]: Straight 1St End
End Connection Design [AKUU]: Straight 2Nd End
Burst Test Pressure [CQBD]: 8000.0 Pounds Per Square Inch
Connection Style [AHNC]: Plain 2Nd End
Connection Style [AHNC]: Swivel Nut With Compression Sleeve 1St End
Connection Type [AWLS]: Threaded External Pipe 2Nd End
Connection Type [AWLS]: Threaded Internal Tube 1St End
Cross-Sectional Shape Style [AAGR]: Round
Hydrostatic Test Pressure [CRDW]: 4000.0 Pounds Per Square Inch
Maximum Operating Pressure [CQGM]: 2000.0 Pounds Per Square Inch
Measuring Method And Length [CRXX]: 33.500 Inches Nominal Overall
Media For Which Designed [MEDA]: Fuel/Oil, Hydrocarbon Single Response
Nominal Thread Size [CQJX]: 0.500 Inches 2Nd End
Nominal Thread Size [CQJX]: 0.938 Inches 1St End
Outer Covering Environmental Protection [CRJM]: Mildew Resistant And Oil Resistant And Oil Resistant
Outside Diameter [ABKV]: 0.906 Inches Nominal
Inside Diameter [AARX]: 0.500 Inches Nominal
Inside Surface Condition [CRWL]: Smooth
Layer Composition And Location [CQCS]: 1St Layer Braided Steel Wire And Outer Layer Molded Rubber
Seat Angle [CQRB]: 37.0 Degrees 1St End
Specification/Standard Data [ZZZK]: 81349-Mil-H-13531A Ty 1 Government Specification
Temp Rating [ABJH]: -65.0 Deg Fahrenheit And 250.0 Deg Fahrenheit Single Response
Thread Class [AAJD]: 2A 1St End
Thread Direction [AAJF]: Right-Hand 1St End
Thread Direction [AAJF]: Right-Hand 2Nd End
Thread Series Designator [THSD]: Nptf 2Nd End
Thread Series Designator [THSD]: Un 1St End
Thread Quantity Per Inch [CMLP]: 16 1St End

Weapon Systems (WSDC) 4720-00-883-2233

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 4720-00-883-2233

Last Stock Position:: 12 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 4720-00-883-2233

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: US Marine Corps (DM); EA; Subscribe; 1
Apr 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Feb 2021: US Marine Corps (DM); EA; Subscribe; 1
Oct 2019: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

WB: Line of Communication and Base Support Systems
Bridge Armored Vehicle and Support Equipment

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

Similar Supply Items to 4720-00-883-2233

Freight Information 4720-00-883-2233

4720-00-883-2233 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051140. A Sub NMFC of Z. It has a NMFC Description of HOSE:NOI TUBING. 4720-00-883-2233 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 4720-00-883-2233 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 52350 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4720-00-883-2233 is not classified as a special type of cargo when transported by water. 4720-00-883-2233 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 4720-00-883-2233

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Non-Metallic Item; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; 10.0" H x 4.0" W x 1.0" L; --; --; --; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; --; --; --; MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: Any Suitable Fiber Box

Contracting Technical Data File (CTDF) 4720-00-883-2233 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: L

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
