4720-00-720-0242

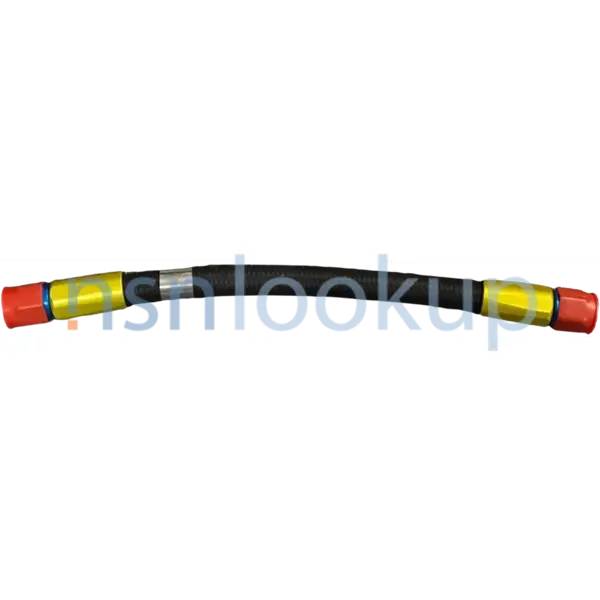

Nonmetallic Hose Assembly
4720007200242 007200242 MIL-DTL-8795 111417-8D-0124 FA8217HHH0133 MS28741-8-0124
A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING. View more Nonmetallic Hose Assembly
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
June 2025
June 2025
NATO Update Count
31
31
NATO Data Quality
Marketplace 4720-00-720-0242
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4720-00-720-0242 5+ Documents (More...)
MIL-DTL-8795 111417-8D-0124 FA8217HHH0133 MS28741-8-0124 A length of nonmetallic hose with fittings
NE Updated Every Day 4720-00-720-0242 RQST NE Updated Every Day 4720-00-720-0242 RQST Updated Every Day
4720-00-720-0242 RQST NE Related Documents 4720-00-720-0242 5+ Documents ( More... ) https//www.nsnlookup.com
NE Updated Every Day 4720-00-720-0242 RQST NE Updated Every Day 4720-00-720-0242 RQST Updated Every Day
4720-00-720-0242 RQST NE Related Documents 4720-00-720-0242 5+ Documents ( More... ) https//www.nsnlookup.com
4720-00-586-7971Nonmetallic Hose Assembly4720005867971 005867971 Cancelled - Replaced by NSN 4720-00-720-0242
MS28741-8-0124 HOSE ASSEMBLY,NONMETALLIC 1 EA NS Request Quotation Updated Every Day 4720-00-586-7971
States (US) 4. 4720-00-586-7971 Marketplace Restrictions Approved Sources Datasheet Management MS28741-8-0124
MS28741-8-0124 HOSE ASSEMBLY,NONMETALLIC 1 EA NS Request Quotation Updated Every Day 4720-00-586-7971
States (US) 4. 4720-00-586-7971 Marketplace Restrictions Approved Sources Datasheet Management MS28741-8-0124
Upgrade your Account Upgrade 4720-00-115-0170Nonmetallic Hose Assembly4720001150170 001150170 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-385-9102Nonmetallic Hose Assembly4720013859102 013859102 MIL-DTL-8795
Nonmetallic Hose Assembly 4720007200242 Upgrade your Account Upgrade 4720-00-720-0242Nonmetallic
Upgrade your Account Upgrade 4720-01-385-9102Nonmetallic Hose Assembly4720013859102 013859102 MIL-DTL-8795
Nonmetallic Hose Assembly 4720007200242 Upgrade your Account Upgrade 4720-00-720-0242Nonmetallic
Upgrade your Account Upgrade 4720-01-435-5042Nonmetallic Hose Assembly4720014355042 014355042 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-678-5444Nonmetallic Hose Assembly4720016785444 016785444 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-549-1398Nonmetallic Hose Assembly4720015491398 015491398 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-678-5444Nonmetallic Hose Assembly4720016785444 016785444 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-549-1398Nonmetallic Hose Assembly4720015491398 015491398 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-061-6521Nonmetallic Hose Assembly4720010616521 010616521 MIL-DTL-8795
Upgrade your Account Upgrade 4720-00-842-5147Nonmetallic Hose Assembly4720008425147 008425147 MIL-DTL-8795
Upgrade your Account Upgrade 4720-00-209-0608Nonmetallic Hose Assembly4720002090608 002090608 MIL-DTL-8795
Upgrade your Account Upgrade 4720-00-842-5147Nonmetallic Hose Assembly4720008425147 008425147 MIL-DTL-8795
Upgrade your Account Upgrade 4720-00-209-0608Nonmetallic Hose Assembly4720002090608 002090608 MIL-DTL-8795
Restrictions 4720-00-720-0242
4720-00-720-0242 is a Nonmetallic Hose Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 4720-00-720-0242
- US Army (A920)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBD
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9CD
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Feb 2012
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Sep 1999
Approved Sources 4720-00-720-0242
- Part Number
- Manufacturer
- Status
- MS28741-8-0124
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-8795
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 111417-8D-0124
- 98441 - Parker Hannifin Corp (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- FA8217HHH0133
- 01276 - Danfoss Power Solutions Ii, Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS28741-8-0124
- 32142 - Hydrasearch Company, Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS28741-8-0124
- 14798 - Designed Metal Connections Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4720007200242
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4720-00-720-0242
- Characteristic
- Specifications
- FIIG
- Specifications
- A542A0
- End Connection Design [AKUU]
- Straight 1St End
- Burst Test Pressure [CQBD]
- 8000.0 Pounds Per Square Inch
- Connection Style [AHNC]
- Swivel Nut Flare 1St End
- Connection Type [AWLS]
- Threaded Internal Tube 1St End
- Cross-Sectional Shape Style [AAGR]
- Round
- Maximum Operating Pressure [CQGM]
- 2000.0 Pounds Per Square Inch
- Measuring Method And Length [CRXX]
- 12.500 Inches Nominal Working
- Media For Which Designed [MEDA]
- Fuel/Oil, Hydrocarbon Single Response
- Nominal Thread Size [CQJX]
- 0.750 Inches 1St End
- Outside Diameter [ABKV]
- 0.766 Inches Nominal
- Inside Diameter [AARX]
- 0.406 Inches Nominal
- Inside Surface Condition [CRWL]
- Smooth
- Layer Composition And Location [CQCS]
- 1St Layer Braided Cotton Cord And 2Nd Layer Braided Steel Wire And Outer Layer Rubber Impregnated Braided Cotton Cord
- Seat Angle [CQRB]
- 37.0 Degrees 1St End
- Specification/Standard Data [ZZZK]
- 96906-Ms28741 Government Standard
- Thread Class [AAJD]
- 3B 1St End
- Thread Direction [AAJF]
- Right-Hand 1St End
- Thread Series Designator [THSD]
- Unf 1St End
Weapon Systems (WSDC) 4720-00-720-0242
DLA Procurement Analysis 4720-00-720-0242
Management Data 4720-00-720-0242
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- R
- Refer To Q4720005424433 1Ea
- Q4720005424433 1EA
- R
- Department of the Air Force (DF)
- F
- R
- Refer To Q4730008422202 2Ea
- Q4730008422202 2EA
- R
- Department of the Navy (DN)
- N
- Q
- Fabricate Or Assemble 4720-00-542-4433
- 1
- EA
- Q
- Department of the Navy (DN)
- N
- Q
- Fabricate Or Assemble 4730-00-842-2202
- 1
- EA
- Q
- Defense Logistics Agency (DS)
- I
- Q
- Fabricate Or Assemble 4720-00-542-4433
- 1
- EA
- Q
- Defense Logistics Agency (DS)
- I
- Q
- Fabricate Or Assemble 4730-00-842-2202
- 1
- EA
- Q
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 4720-00-720-0242
4930-98-855-1116 4720-99-845-9126 4720-14-311-2847 4720-14-269-0904 4720-21-913-4339 4720-14-277-3699 4720-15-118-9773 4720-14-308-8664 4720-17-114-6295 4720-99-477-5829 4720-12-341-5895 4720-12-330-2083 4720-99-477-5984 4720-17-124-9106 4720-27-053-5411 4720-99-374-7025 4720-12-353-8651 4720-99-580-4201
Freight Information 4720-00-720-0242
4720-00-720-0242 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051420. A Sub NMFC of X. It has a NMFC Description of CONDUITS,O/T EARTHEN:PIPE FITTINGS. 4720-00-720-0242 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29090 which rates the freight between FCL and LCL. 4720-00-720-0242 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4720-00-720-0242 is not classified as a special type of cargo when transported by water. 4720-00-720-0242 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4720-00-720-0242
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 13.0" H x 1.3" W x 1.3" L
- --
- --
- --
- --
- 13.0" H x 1.3" W x 1.3" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- Type I, shelf life
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 4720-00-720-0242 10 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M123V6187
- 02 May 2023
- Subscribe
- 24
- Subscribe
- Subscribe
- Subscribe
- SPE7M418V4537
- 20 Apr 2018
- Subscribe
- 15
- Subscribe
- Subscribe
- Subscribe
- SPE7M417V2040
- 19 Jun 2017
- Subscribe
- 65
- Subscribe
- Subscribe
- Subscribe
- SPE7M016VF749
- 14 Sep 2016
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M116V4968
- 04 Jan 2016
- Subscribe
- 5
- Subscribe
- Subscribe
- Subscribe
- SPE7M016V2505
- 25 Nov 2015
- Subscribe
- 17
- Subscribe
- Subscribe
- Subscribe
- SPE7M015VA376P00001
- 11 Jun 2015
- Subscribe
- 2
- Subscribe
- Subscribe
- Subscribe
- SPE7M115M3051
- 28 Jan 2015
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7M314M5429
- 06 Aug 2014
- Subscribe
- 5
- Subscribe
- Subscribe
- Subscribe
- SPE7M314V6567
- 06 Aug 2014
- Subscribe
- 5
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4720-00-720-0242 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- R
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
