4720-00-495-6214

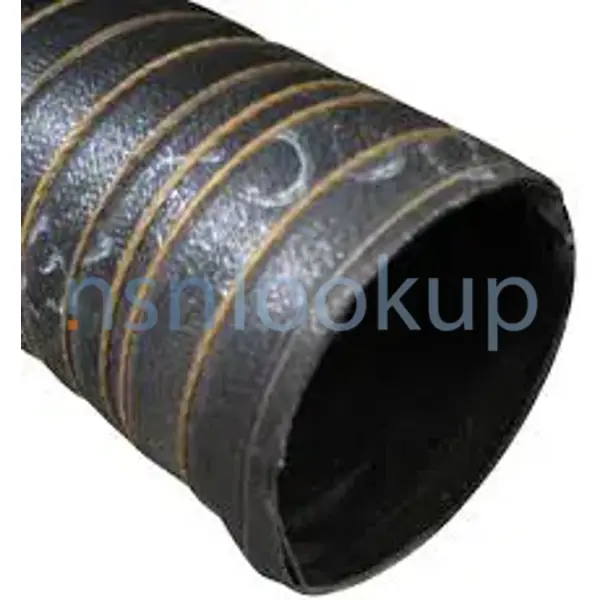

Air Duct Hose
4720004956214 004956214 MIL-H-62028 8711053THRU8711056 8723935-16-5 8723935-16 1-2
A flexible, tubular item of light wall construction. It must have single or multiple layers of nonmetallic material, but may contain metal wire reinforcement, foil type liner, and/or woven or braided cover. It is designed to convey under low pressure gaseous material, such as air and fumes, and light weight solid materials, such as dust, powders, and fibers. For items with couplings, see HOSE ASSEMBLY, AIR DUCT. For items of sleeve section design rated for high pressure use, see SLEEVE, SEAL, COUPLING. Excludes hose, nonmetallic. View more Air Duct Hose
May 2023
4
Marketplace 4720-00-495-6214
Request a Quotation from participating marketplace vendors
Related Documents 4720-00-495-6214 5+ Documents (More...)
MIL-H-62028 HOSE,AIR DUCT 2 EA NS Request Quotation Subscribe to View Vendor Details...
MIL-H-62028 HOSE,AIR DUCT 2 EA NS Request Quotation Subscribe to View Vendor Details...
MIL-H-62028 HOSE,AIR DUCT 2 EA NS Request Quotation Subscribe to View Vendor Details...
A flexible, tubular item of light wall MIL-H-62028 HOSE,AIR DUCT 2 EA NS Request Quotation Subscribe
3 EA NS Request Quotation MIL-PRF-62028 HOSE,AIR DUCT 108 EA NS Request https MIL-H-62028 HOSE,
MIL-H-62028 HOSE,AIR DUCT 2 EA NS Request Quotation Subscribe to View Vendor Details...
3 EA NS Request Quotation MIL-PRF-62028 HOSE,AIR DUCT 108 EA NS Request https MIL-H-62028 HOSE,
HOSE,AIR DUCT 3 EA NS Request Quotation MIL-PRF-62028 HOSE,AIR DUCT 108 EA NS Request https MIL-H-62028
MIL-H-62028 HOSE,AIR DUCT 2 EA NS Request Quotation Subscribe to View Vendor Details...
A flexible, tubular item of light wall MIL-H-62028 HOSE,AIR DUCT 2 EA NS Request Quotation Subscribe
Restrictions 4720-00-495-6214
4720-00-495-6214 is a Air Duct Hose that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 4720-00-495-6214
- National Security Agency (DGX1)
- Effective Date:
- 1 Apr 2012
Approved Sources 4720-00-495-6214
- Part Number
- Manufacturer
- Status
- 8723935-16-5
- Manufacturer
- 21868 - Hbd Industries Inc (Active)
- Primary Buy
- Primary Buy
- 8723935-16-5
- 16632 - Flexfab Llc (Active)
- Primary Buy
- Primary Buy
- 8723935-16 1-2
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- MIL-H-62028
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 8711053THRU8711056
- 19207 - U S Army Tank Automotive Command (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 8723935-16-5
- 19207 - U S Army Tank Automotive Command (Active)
- Secondary Buy
- Secondary Buy
Datasheet 4720-00-495-6214
- Characteristic
- Specifications
- FIIG
- Specifications
- A229A0
- Connection Type [AWLS]
- Plain Both Ends
- Cross-Sectional Shape Style [AAGR]
- Round
- External Operating Pressure [CXMT]
- 5.0 Pounds Per Square Inch
- Features Provided [CBBL]
- Ozone Resistant
- Material [MATT]
- Fiberglass 2Nd Ply And Rubber Chloroprene Class Cr 2Nd Ply
- Material [MATT]
- Fiberglass Reinforcing Cord
- Material [MATT]
- Rubber Chloroprene Class Cr 1St Ply
- Material [MATT]
- Steel Reinforcing Wire
- Measuring Method And Length [CRXX]
- 16.500 Inches Nominal Overall
- Minimum Inside Bending Radius [ACKH]
- 1.250 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 3 Type And 1 Class
- Inside Diameter [AARX]
- 2.500 Inches Nominal First End
- Wall Thickness [AAGT]
- 0.070 Inches Nominal
- Specification/Standard Data [ZZZK]
- 81349-Mil-H-62028 Government Specification
- Style Designator [STYL]
- Helically Wound Continous Wire Supported
DLA Procurement Analysis 4720-00-495-6214
Management Data 4720-00-495-6214
NATO Stock Numbers Related to 4720-00-495-6214
Freight Information 4720-00-495-6214
4720-00-495-6214 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051035. A Sub NMFC of Z. It has a NMFC Description of DUCTS:AIR SYSTEM. 4720-00-495-6214 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 33815 which rates the freight between FCL and LCL. 4720-00-495-6214 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4720-00-495-6214 is not classified as a special type of cargo when transported by water. 4720-00-495-6214 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4720-00-495-6214
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 18.0" H x 4.0" W x 1.0" L
- --
- --
- --
- Any Suitable Process
- 18.0" H x 4.0" W x 1.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 4720-00-495-6214 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
