4720-00-461-9797

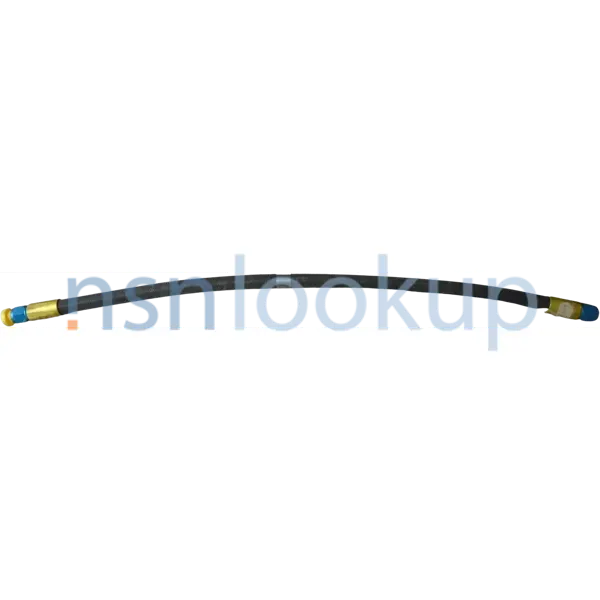

Nonmetallic Hose Assembly
4720004619797 004619797 MIL-DTL-8795 MS28741-8-0300 360-8D0300 94B0100008D0300 AN6264-8-30 AN6271-8-30
A length of nonmetallic hose with fittings on one or both ends. For items without fittings, see HOSE, NONMETALLIC. Excludes HOSE ASSEMBLY, AIR DUCT; and HOSE ASSEMBLY, AIR DUCT, AIR BREATHING. View more Nonmetallic Hose Assembly
Managed by United States
NSN Created on 14 May 1969
Data Last Changed
July 2025
July 2025
NATO Update Count
48
48
NATO Data Quality
Marketplace 4720-00-461-9797
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
4720008187937 HOSE ASSEMBLY,NONMETALLIC 1 EA NS
MS28741-8-0300 HOSE ASSEMBLY,NONMETALLIC 1 EA NS
4720-00-461-9797 HOSE ASSEMBLY,NONMETALLIC 1 EA NS
4720-00-461-9797 HOSE ASSEMBLY,NONMETALLIC 100 EA NS
MS28741-8-0300 HOSE ASSEMBLY,NONMETALLIC 100 EA NS
MS28741-8-0300 RQST NE
Updated Every Day 4720-00-461-9797 RQST NE
Updated Every Day 4720-00-461-9797 RQST
Updated Every Day 4720-00-461-9797 RQST NE
Related Documents 4720-00-461-9797 5+ Documents (More...)
MIL-DTL-8795 MS28741-8-0300 360-8D0300 94B0100008D0300 AN6264-8-30 AN6271-8-30 A length of nonmetallic
. 4720-00-461-9797 HOSE ASSEMBLY,NONMETALLIC 100 EA NS Request Quotation MS28741-8-0300 HOSE ASSEMBLY
,NONMETALLIC 100 EA NS Request Quotation Updated Every Day MS28741-8-0300 RQST NE Updated Every Day 4720
. 4720-00-461-9797 HOSE ASSEMBLY,NONMETALLIC 100 EA NS Request Quotation MS28741-8-0300 HOSE ASSEMBLY
,NONMETALLIC 100 EA NS Request Quotation Updated Every Day MS28741-8-0300 RQST NE Updated Every Day 4720
4720-00-818-7937Nonmetallic Hose Assembly4720008187937 008187937 Cancelled - Replaced by NSN 4720-00-461-9797
MS28741-8-0300 HOSE ASSEMBLY,NONMETALLIC 1 EA NS Request Quotation Updated Every Day 4720-00-818-7937
818-7937 Nonmetallic Hose Assembly 4720008187937 https//www.nsnlookup.com /fsg-47/fsc-4720/us 4720-00-461-9797
MS28741-8-0300 HOSE ASSEMBLY,NONMETALLIC 1 EA NS Request Quotation Updated Every Day 4720-00-818-7937
818-7937 Nonmetallic Hose Assembly 4720008187937 https//www.nsnlookup.com /fsg-47/fsc-4720/us 4720-00-461-9797
Upgrade your Account Upgrade 4720-01-435-5042Nonmetallic Hose Assembly4720014355042 014355042 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-678-5444Nonmetallic Hose Assembly4720016785444 016785444 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-549-1398Nonmetallic Hose Assembly4720015491398 015491398 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-678-5444Nonmetallic Hose Assembly4720016785444 016785444 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-549-1398Nonmetallic Hose Assembly4720015491398 015491398 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-061-6521Nonmetallic Hose Assembly4720010616521 010616521 MIL-DTL-8795
Upgrade your Account Upgrade 4720-00-842-5147Nonmetallic Hose Assembly4720008425147 008425147 MIL-DTL-8795
Upgrade your Account Upgrade 4720-00-209-0608Nonmetallic Hose Assembly4720002090608 002090608 MIL-DTL-8795
Upgrade your Account Upgrade 4720-00-842-5147Nonmetallic Hose Assembly4720008425147 008425147 MIL-DTL-8795
Upgrade your Account Upgrade 4720-00-209-0608Nonmetallic Hose Assembly4720002090608 002090608 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-009-4673Nonmetallic Hose Assembly4720010094673 010094673 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-386-4362Nonmetallic Hose Assembly4720013864362 013864362 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-004-9147Nonmetallic Hose Assembly4720010049147 010049147 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-386-4362Nonmetallic Hose Assembly4720013864362 013864362 MIL-DTL-8795
Upgrade your Account Upgrade 4720-01-004-9147Nonmetallic Hose Assembly4720010049147 010049147 MIL-DTL-8795
Restrictions 4720-00-461-9797
4720-00-461-9797 is a Nonmetallic Hose Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4720-00-461-9797
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4720-00-461-9797
- US Army (A920)
- Effective Date:
- 1 Jul 2007
- Supplementary Receivers:
- AZ
- US Marine Corps (MC40)
- Effective Date:
- 1 Feb 2016
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Dec 2011
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Philippines (ZM01)
- Effective Date:
- 1 Feb 2015
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 4720-00-461-9797
- Part Number
- Manufacturer
- Status
- MS28741-8-0300
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-8795
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MS28741-8-0300
- 32142 - Hydrasearch Company, Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS28741-8-0300
- 00624 - Eaton Aeroquip Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS28741-8-0300
- 50599 - Parker-Hannifin Corporation (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS28741-8-0300
- 98441 - Parker Hannifin Corp (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 360-8D0300
- 00624 - Eaton Aeroquip Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS28741-8-0300
- 14728 - Precision Form Rivet Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 94B0100008D0300
- 14728 - Precision Form Rivet Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 360-8D0300
- R1120 - Satair A/S (Active)
- Secondary Buy
- Secondary Buy
- MS28741-8-0300
- R1120 - Satair A/S (Active)
- Secondary Buy
- Secondary Buy
- 94B0100008D0300
- 14798 - Designed Metal Connections Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN6264-8-30
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4720004619797
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MS28741-8-0300
- 14798 - Designed Metal Connections Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN6271-8-30
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4720-00-461-9797
- Characteristic
- Specifications
- FIIG
- Specifications
- A542A0
- End Connection Design [AKUU]
- Straight 1St End
- Burst Test Pressure [CQBD]
- 8000.0 Pounds Per Square Inch
- Connection Style [AHNC]
- Swivel Nut Flare 1St End
- Connection Type [AWLS]
- Threaded Internal Tube 1St End
- Cross-Sectional Shape Style [AAGR]
- Round
- Hydrostatic Test Pressure [CRDW]
- 4000.0 Pounds Per Square Inch
- Maximum Operating Pressure [CQGM]
- 2000.0 Pounds Per Square Inch
- Measuring Method And Length [CRXX]
- 30.000 Inches Nominal Working
- Media For Which Designed [MEDA]
- Fuel/Oil, Hydrocarbon Single Response
- Minimum Inside Bending Radius [ACKH]
- 4.625 Inches
- Nominal Thread Size [CQJX]
- 0.750 Inches 1St End
- Outer Covering Environmental Protection [CRJM]
- Mildew Resistant And Oil Resistant
- Outside Diameter [ABKV]
- 0.766 Inches Nominal
- Inside Diameter [AARX]
- 0.406 Inches Nominal
- Inside Surface Condition [CRWL]
- Smooth
- Layer Composition And Location [CQCS]
- 2Nd Layer Braided Corrosion Resistant Steel Wire And 1St Layer Braided Cotton Cord And Outer Layer Rubber Impregnated Braided Cotton Cord
- Seat Angle [CQRB]
- 37.0 Degrees 1St End
- Vacuum In Torr [CRSM]
- 50.8
- Specification/Standard Data [ZZZK]
- 96906-Ms28741 Government Standard
- Temp Rating [ABJH]
- -65.0 Deg Fahrenheit And 250.0 Deg Fahrenheit Single Response
- Thread Class [AAJD]
- 3B 1St End
- Thread Direction [AAJF]
- Right-Hand 1St End
- Thread Series Designator [THSD]
- Unjf 1St End
Weapon Systems (WSDC) 4720-00-461-9797
DLA Procurement Analysis 4720-00-461-9797
- Last Stock Position:
- 23 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4720-00-461-9797
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- 0
- Physical Category:
- 1
- Bin
NATO Stock Numbers Related to 4720-00-461-9797
4930-98-855-1116 4720-99-845-9126 4720-14-311-2847 4720-14-269-0904 4720-21-913-4339 4720-14-277-3699 4720-15-118-9773 4720-14-308-8664 4720-17-114-6295 4720-99-477-5829 4720-12-341-5895 4720-12-330-2083 4720-99-477-5984 4720-17-124-9106 4720-27-053-5411 4720-99-374-7025 4720-12-353-8651 4720-99-580-4201
Freight Information 4720-00-461-9797
4720-00-461-9797 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051140. A Sub NMFC of Z. It has a NMFC Description of HOSE:NOI TUBING. 4720-00-461-9797 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 52350 which rates the freight between FCL and LCL. 4720-00-461-9797 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4720-00-461-9797 is not classified as a special type of cargo when transported by water. 4720-00-461-9797 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4720-00-461-9797
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- Type I, shelf life
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 4720-00-461-9797 11 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M122F333F
- 30 Mar 2022
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
- SPE7M122F329X
- 30 Mar 2022
- Subscribe
- 47
- Subscribe
- Subscribe
- Subscribe
- SPE7M122F331Y
- 30 Mar 2022
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7M122F333F
- 30 Mar 2022
- Subscribe
- 3
- Subscribe
- Subscribe
- Subscribe
- SPE7M122F329X
- 30 Mar 2022
- Subscribe
- 47
- Subscribe
- Subscribe
- Subscribe
- SPE7M122F331Y
- 30 Mar 2022
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7M121F9057
- 11 Feb 2021
- Subscribe
- 138
- Subscribe
- Subscribe
- Subscribe
- SPE7M121F9057
- 11 Feb 2021
- Subscribe
- 138
- Subscribe
- Subscribe
- Subscribe
- SPE7M416M4480
- 08 Sep 2016
- Subscribe
- 132
- Subscribe
- Subscribe
- Subscribe
- SPE7M416M3502
- 06 Jun 2016
- Subscribe
- 57
- Subscribe
- Subscribe
- Subscribe
- SPE7MC16V7925
- 26 May 2016
- Subscribe
- 160
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4720-00-461-9797 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
