4720-00-406-7006

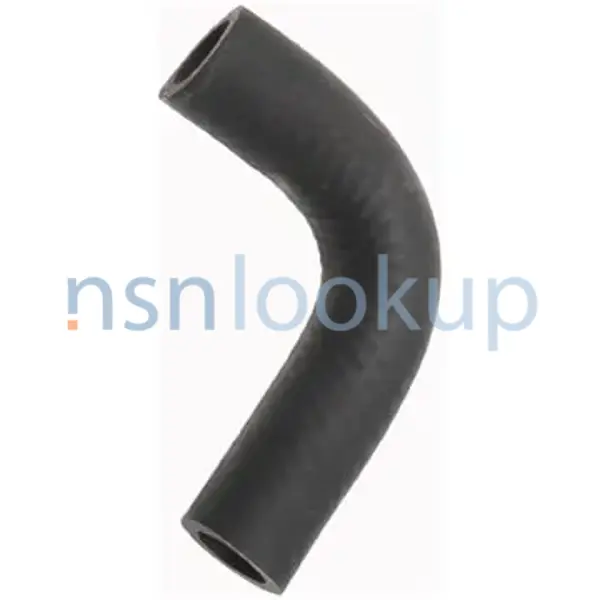

Preformed Hose
4720004067006 004067006 D2PZ-8597-A CH1 70001 C20Z8597B
A length of nonmetallic hose, molded to a predetermined shape and size. View more Preformed Hose
Managed by United States
NSN Created on 17 Apr 1970
Data Last Changed
May 2023
May 2023
NATO Update Count
11
11
NATO Data Quality
Marketplace 4720-00-406-7006
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4720-00-406-7006 5+ Documents (More...)
https//www.nsnlookup.com
/fsg-47/fsc-4720/us
/fsg-47/fsc-4720/us
4720-00-406-7006 Preformed Hose 4720004067006 004067006
D2PZ-8597-A CH1 70001 C20Z8597B A length of nonmetallic hose, molded to a predetermined shape and size
RQST NE Updated Every Day 70001 RQST NE Updated Every Day 4720-00-406-7006 RQST NE Updated Every Day
-60080 70001-69098 -187 F441-70001-1 A test 70001-69098 70001-60052 A PRINTED WIRING BOARD having 70001
RQST NE Updated Every Day 70001 RQST NE Updated Every Day 4720-00-406-7006 RQST NE Updated Every Day
-60080 70001-69098 -187 F441-70001-1 A test 70001-69098 70001-60052 A PRINTED WIRING BOARD having 70001
https//www.nsnlookup.com
/fsg-99/fsc-9999/uk
/fsg-99/fsc-9999/uk
9999-99-402-7118 Preformed Hose 9999994027118 994027118
Similar Supply Items to 9999-99-402-7118 4720-00-289-5853 4720-00-657-4392 4720-00-993-4213 4720-00-406-7006
https//www.nsnlookup.com
/fsg-99/fsc-9999/dk
/fsg-99/fsc-9999/dk
9999-22-606-0668 Preformed Hose 9999226060668 226060668
Similar Supply Items to 9999-22-606-0668 4720-00-289-5853 4720-00-657-4392 4720-00-993-4213 4720-00-406-7006
https//www.nsnlookup.com
/fsg-99/fsc-9999/it
/fsg-99/fsc-9999/it
9999-15-107-2881 Preformed Hose 9999151072881 151072881
Similar Supply Items to 9999-15-107-2881 4720-00-289-5853 4720-00-657-4392 4720-00-993-4213 4720-00-406-7006
https//www.nsnlookup.com
/fsg-99/fsc-9999/dk
/fsg-99/fsc-9999/dk
9999-22-607-8975 Preformed Hose 9999226078975 226078975
Similar Supply Items to 9999-22-607-8975 4720-00-289-5853 4720-00-657-4392 4720-00-993-4213 4720-00-406-7006
Restrictions 4720-00-406-7006
4720-00-406-7006 is a Preformed Hose that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 4720-00-406-7006
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4720-00-406-7006
- Part Number
- Manufacturer
- Status
- D2PZ-8597-A
- Manufacturer
- 23040 - Ford Motor Co Ford Parts And Service (Replaced)
- Original Design
- Original Design
- CH1
- 11288 - Dayco Products Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 70001
- 11288 - Dayco Products Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- C20Z8597B
- 23040 - Ford Motor Co Ford Parts And Service (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4720-00-406-7006
- Characteristic
- Specifications
- FIIG
- Specifications
- A542B0
- Bend Radius [AGSJ]
- 0.750 Inches Nominal
- First Arm Length [CBZX]
- 2.250 Inches Nominal
- Material [MATT]
- Rubber Natural Cover
- Material [MATT]
- Rubber Polyisoprene Natural Class Nr Overall
- Inside Diameter [AARX]
- 0.625 Inches Nominal
- Second Arm Length [CBZY]
- 1.500 Inches Nominal
- Wall Thickness [AAGT]
- 0.281 Inches Nominal
- Working Length [WKLG]
- 2.938 Inches Nominal
- Style Designator [STYL]
- Single Bend
Weapon Systems (WSDC) 4720-00-406-7006
DLA Procurement Analysis 4720-00-406-7006
Management Data 4720-00-406-7006
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 2930
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 2930
- X
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 4720-00-406-7006
Freight Information 4720-00-406-7006
4720-00-406-7006 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051140. A Sub NMFC of Z. It has a NMFC Description of HOSE:NOI TUBING. 4720-00-406-7006 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 52350 which rates the freight between FCL and LCL. 4720-00-406-7006 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4720-00-406-7006 is not classified as a special type of cargo when transported by water. 4720-00-406-7006 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4720-00-406-7006
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 4720-00-406-7006 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
