4720-00-079-6096
Air Duct Hose
4720000796096 000796096 MIL-H-62028 CEET-5A-480 700630-1.375-XR 8711053-2 FLX1001 11057600
A flexible, tubular item of light wall construction. It must have single or multiple layers of nonmetallic material, but may contain metal wire reinforcement, foil type liner, and/or woven or braided cover. It is designed to convey under low pressure gaseous material, such as air and fumes, and light weight solid materials, such as dust, powders, and fibers. For items with couplings, see HOSE ASSEMBLY, AIR DUCT. For items of sleeve section design rated for high pressure use, see SLEEVE, SEAL, COUPLING. Excludes hose, nonmetallic. View more Air Duct Hose
September 2025
30
Marketplace 4720-00-079-6096
Request a Quotation from participating marketplace vendors
Related Documents 4720-00-079-6096 5+ Documents (More...)

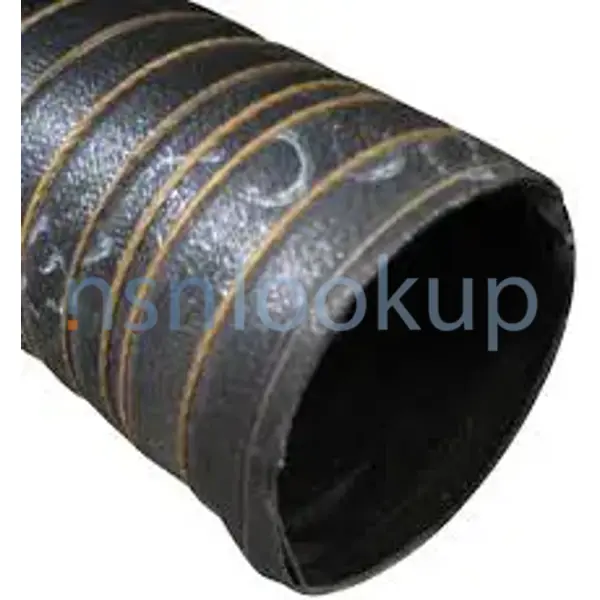

Photo 1/3 NSN 4720-00-079-6096 (Identification) 2/3 NSN 4720-00-079-6096 (Identification) 3/3 -
MIL-H-62028 HOSE,AIR DUCT 2 FT NS Request Quotation Subscribe to View Vendor Details...
MIL-H-62028 HOSE,AIR DUCT 3 EA NS Request Quotation Updated Every Day 4720-00-069-6260 RQST Updated Every
Air Duct Hose 4720000796096 000796096 700630-1.375-XR 70628 - Arrowhead Products Corp https//www.nsnlookup.com
MIL-H-62028 HOSE,AIR DUCT 3 EA NS Request Quotation Subscribe to View Vendor Details...
/fsg-47/fsc-4720/us 4720-01-197-6933 Air Duct Hose 4720011976933 011976933 MIL-H-62028 HOSE,AIR DUCT
MIL-H-62028 HOSE,AIR DUCT 2 EA NS Request Quotation Subscribe to View Vendor Details...
A flexible, tubular item of light wall MIL-H-62028 HOSE,AIR DUCT 2 EA Air https//www.nsnlookup.com
Air Duct Hose 4720000796096 000796096 day Upgrade your Account Upgrade 4720-00-079-6096Air Duct
Hose4720000796096 000796096 MIL-H-62028 CEET 4720011976933 011976933 MIL-H-62028 HOSE,AIR DUCT https
Restrictions 4720-00-079-6096
4720-00-079-6096 is a Air Duct Hose that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 4720-00-079-6096
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBF
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- MC01
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Mar 1994
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4720-00-079-6096
- Part Number
- Manufacturer
- Status
- CEET-5A-480
- Manufacturer
- 21868 - Hbd Industries, Inc (Active)
- Primary Buy
- Primary Buy
- 700630-1.375-XR
- 70628 - Arrowhead Products Corp (Active)
- Primary Buy
- Primary Buy
- 8711053-2
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- FLX1001 11057600
- 16632 - Flexfab Llc (Active)
- Primary Buy
- Primary Buy
- MIL-H-62028
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 4720-00-079-6096
- Characteristic
- Specifications
- FIIG
- Specifications
- A229A0
- Connection Type [AWLS]
- Plain Both Ends
- Cross-Sectional Shape Style [AAGR]
- Round
- Departure From Cited Document [ZZZW]
- As Modified By Hose Id
- Material [MATT]
- Fiberglass 1St Ply And Rubber Chloroprene Class Cr 1St Ply
- Material [MATT]
- Fiberglass Reinforcing Cord And Rubber Chloroprene Class Cr Reinforcing Cord
- Material [MATT]
- Steel Reinforcing Wire
- Maximum Operating Pressure [CQGM]
- 5.0 Pounds Per Square Inch
- Measuring Method And Length [CRXX]
- 144.000 Inches Nominal Overall
- Minimum Inside Bending Radius [ACKH]
- 0.344 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 3 Type And 1 Class
- Inside Diameter [AARX]
- 1.375 Inches Nominal First End
- Specification/Standard Data [ZZZK]
- 81349-Mil-H-62028 Government Specification
- Style Designator [STYL]
- Helically Wound Continous Wire Supported
Weapon Systems (WSDC) 4720-00-079-6096
DLA Procurement Analysis 4720-00-079-6096
Management Data 4720-00-079-6096
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 4720-00-079-6096
Freight Information 4720-00-079-6096
4720-00-079-6096 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051035. A Sub NMFC of Z. It has a NMFC Description of DUCTS:AIR SYSTEM. 4720-00-079-6096 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 33815 which rates the freight between FCL and LCL. 4720-00-079-6096 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4720-00-079-6096 is not classified as a special type of cargo when transported by water. 4720-00-079-6096 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4720-00-079-6096
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 4720-00-079-6096 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
