4710-01-271-2001
Plastic Pipe
4710012712001 012712001 8524186-04 P402 8524186
A tubular product formed from plastic material. The nominal pipe size and outside diameter conform to iron pipe size designators or the dimensions conform to Standard Thermoplastic Pipe Dimensions Ratio (SDR) Tables. It may have threaded ends or the ends may be capable of being formed by heating. For items not conforming to these dimensioning criteria, see TUBING, NONMETALLIC. View more Plastic Pipe
May 2023
9
Marketplace 4710-01-271-2001
Request a Quotation from participating marketplace vendors
Related Documents 4710-01-271-2001 5+ Documents (More...)
P402 PIPE,PLASTIC 235 EA NS Request Quotation FedMall Updated Every 15 Minutes 4710-01-271-2001 BUY NE
P402 PIPE,PLASTIC 235 EA NS Request Quotation FedMall Updated Every 15 Minutes 4710-01-271-2001 BUY NE
-01 P102 8524186 A tubular product formed from plastic material.
Plastic Pipe 4710012712001 012712001 -04 P402 8524186 A tubular product formed from plastic material
-03 8524186 A tubular product formed from plastic material.
Plastic Pipe 4710012712001 012712001 -04 P402 8524186 A tubular product formed from plastic material
Plastic Pipe 4710012712001 012712001 -04 P402 8524186 A tubular product formed from plastic material
. https//www.nsnlookup.com /fsg-47/fsc-4710/us 4710-01-271-2001 Plastic Pipe 4710012712001012712001 8524186
TYPE/P402/6.5KOHM P402/6.5KOHM K678-694254 A resistor whose ohmic value cannot be adjusted or varied
Wire Wound Fixed Resistor 5905997818085,P402 P402TYPE/P402/6.5KOHMP402/6.5KOHMK678-694254 A resistor
Restrictions 4710-01-271-2001
4710-01-271-2001 is a Plastic Pipe that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4710-01-271-2001
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4710-01-271-2001
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
Approved Sources 4710-01-271-2001
- Part Number
- Manufacturer
- Status
- 8524186-04
- Manufacturer
- 98752 - Warner Robins Air Logistics Center (Active)
- Primary Buy
- Primary Buy
- 8524186-04
- 92878 - Hdt Expeditionary Systems Inc (Active)
- Secondary Buy
- Secondary Buy
- P402
- 6U911 - Freedom Plastics Inc. (Active)
- Secondary Buy
- Secondary Buy
- 8524186-04
- 5RQL2 - Drs Environmental Systems Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 8524186-04
- 90598 - Engineered Air Systems Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 8524186
- 98752 - Warner Robins Air Logistics Center (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4710-01-271-2001
- Characteristic
- Specifications
- FIIG
- Specifications
- T383-C

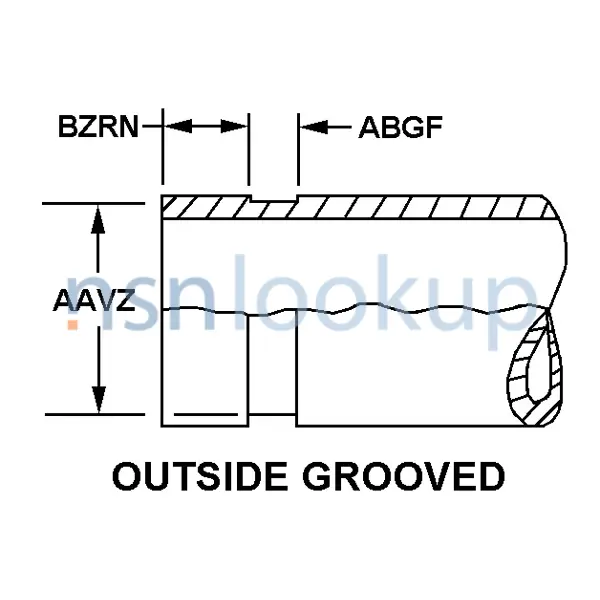

- End Connection Style [AJFX]
- Outside Grooved
- Groove Diameter [AAVZ]
- 4.324 Inches Nominal
- Groove Width [ABGF]
- 0.344 Inches Nominal
- Material [MATT]
- Plastic Polyvinyl Chloride
- Nominal Pipe Size Designation [AAGN]
- 4.000 Inches
- Length From Groove/Bead To End [BZRN]
- 0.625 Inches Nominal
- Length [ABRY]
- 19.0 Feet Nominal
- Potable Water Use Approving Agency [BZRK]
- National Sanitation Foundation
- Outside Diameter [ABKV]
- 4.500 Inches Nominal
- Special Features [FEAT]
- With White Colored Stripe The Length Of The Pipe
- Wall Thickness [AAGT]
- 0.237 Inches Nominal
DLA Procurement Analysis 4710-01-271-2001
Management Data 4710-01-271-2001
Similar Supply Items to 4710-01-271-2001
Freight Information 4710-01-271-2001
4710-01-271-2001 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 4710-01-271-2001 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 4710-01-271-2001 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 845 for ocean manifesting and military sealift. 4710-01-271-2001 is not classified as a special type of cargo when transported by water. 4710-01-271-2001 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4710-01-271-2001
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 4710-01-271-2001 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
