4710-00-277-4885
Metallic Pipe
4710002774885 002774885 WW-P-401 2381P21
A straight, one piece metallic pipe in excess of 12 inches (304 mm) in length. It may have external or internal threads or may be unthreaded. For pipe having external threads 12 inches (304 mm) or less in length see NIPPLE,PIPE. For pipe having internal threads 12 inches (304 mm) or less in lenght see COUPLING,PIPE. View more Metallic Pipe
June 2023
6
Marketplace 4710-00-277-4885
Request a Quotation from participating marketplace vendors
Related Documents 4710-00-277-4885 5+ Documents (More...)
WW-P-401 PIPE,METALLIC 10 EA NS Request Quotation Updated Every Day 2381P21 RQST NE Updated Every Day
4710-00-277-4885 RQST NE Updated Every Day 4710-00-277-4885 RQST Updated Every Day 4710-00-277-4885
WW-P-401 PIPE,METALLIC 10 EA NS Request Quotation Updated Every Day 4710-00-279-0809 RQST NE Updated
PIPE,METALLIC 10 EA NS Request Quotation Updated Every Day 4710-00-278-6326 RQST NE Updated WW-P-401
https//www.nsnlookup.com /fsg-47/fsc-4710/us 4710-00-277-4885 Metallic Pipe 4710002774885 002774885
WW-P-401 PIPE,METALLIC 10 EA NS Request Quotation Updated Every Day 2381P21 RQST NE Updated Every Day
WW-P-401 PLUG,PIPE 10 EA NS Request Quotation Subscribe to View Vendor Details... 4730-01-042-0251
https//www.nsnlookup.com /fsg-47/fsc-4710/us 4710-00-277-4885 Metallic Pipe 4710002774885 002774885
WW-P-401 PLUG,PIPE 10 EA NS Request Quotation Subscribe to View Vendor Details... 4730-01-042-0251 PLUG
) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-042-0251 Pipe Plug 4730010420251010420251,WW-P-401
Restrictions 4710-00-277-4885
4710-00-277-4885 is a Metallic Pipe that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4710-00-277-4885
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4710-00-277-4885
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 4710-00-277-4885
- Part Number
- Manufacturer
- Status
- WW-P-401
- Manufacturer
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
- 2381P21
- 39428 - Mcmaster-Carr Supply Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4710-00-277-4885
- Characteristic
- Specifications
- FIIG
- Specifications
- A004A0
- Construction [CQCF]
- Seamless
- First End Inside Diameter [AAHA]
- 7.190 Inches Nominal

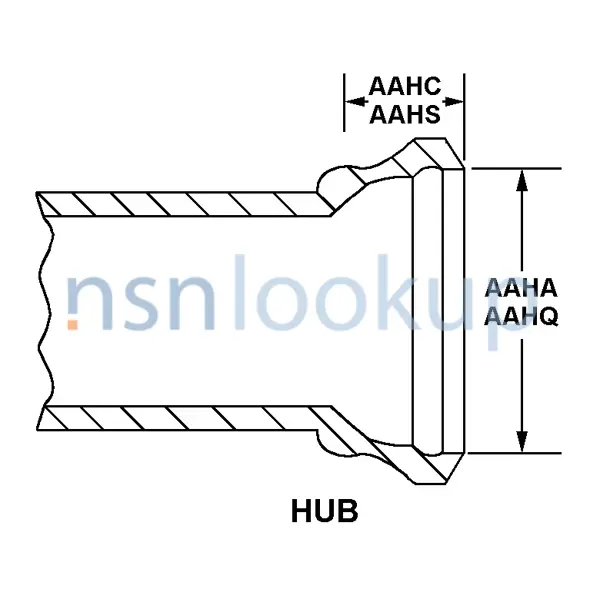

- First End Style [AAGZ]
- Hub
- First End Telescoping Length [AAHC]
- 3.000 Inches Nominal
- Material [MATT]
- Iron
- Measuring Method And Length [CRXX]
- 60.000 Inches Nominal Laying
- Nominal Pipe Size Designation [AAGN]
- 6.000 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- Xh Class And 1 Type
- Second End Relationship With First End [CQBB]
- Identical
- Wall Thickness Designation [AAGP]
- Extra Heavy Weight
- Specification/Standard Data [ZZZK]
- 81348-P-401 Government Specification
Similar Supply Items to 4710-00-277-4885
Freight Information 4710-00-277-4885
4710-00-277-4885 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4710-00-277-4885 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4710-00-277-4885 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4710-00-277-4885 is not classified as a special type of cargo when transported by water. 4710-00-277-4885 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
