4610-01-437-0180
Water Purification Filter Body
4610014370180 014370180 SSFH-5-2
A component of a FILTER, WATER PURIFICATION designed to contain the FILTER ELEMENT, WATER PURIFICATION. View more Water Purification Filter Body
May 2023
1
Marketplace 4610-01-437-0180
Request a Quotation from participating marketplace vendors
Related Documents 4610-01-437-0180 4+ Documents (More...)
) https//www.nsnlookup.com /fsg-46/fsc-4610/us 4610-01-437-0180 Water Purification Filter Body 4610014370180
//www.nsnlookup.com /fsg-46/fsc-4610/us 4610-01-437-0180 Water Purification Filter Body 4610014370180
483-9708 4610-01-585-0059 https//www.nsnlookup.com /fsg-46/fsc-4610/us 4610-01-437-0180 Water Purification
Filter Body 4610014370180 us 4610-01-437-0180 Water Purification Filter Body 4610014370180 Body 4610014370180
Water Purification Filter Body 4610014370180 0180 Water Purification Filter Body 4610014370180
Purification Filter Body 46100152767634610-01-527-6763 4610/us 4610-01-448-3566 Water https Body 4610014370180
Water Purification Filter Body 4610014370180 Upgrade your Account Upgrade 4610-01-437-0180Water
Purification Filter Body4610014370180 014370180 SSFH 4610-01-437-0180 DEMIL: A | DEMILI : | CRITICALITY
Restrictions 4610-01-437-0180
4610-01-437-0180 is a Water Purification Filter Body that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4610-01-437-0180
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4610-01-437-0180
- National Security Agency (DGX1)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- DAX1
- Supplementary Receivers:
- AX
Approved Sources 4610-01-437-0180
- Part Number
- Manufacturer
- Status
- SSFH-5-2
- Manufacturer
- 07FV7 - Ozone Solutions Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 4610-01-437-0180
- Characteristic
- Specifications
- FIIG
- Specifications
- A24000

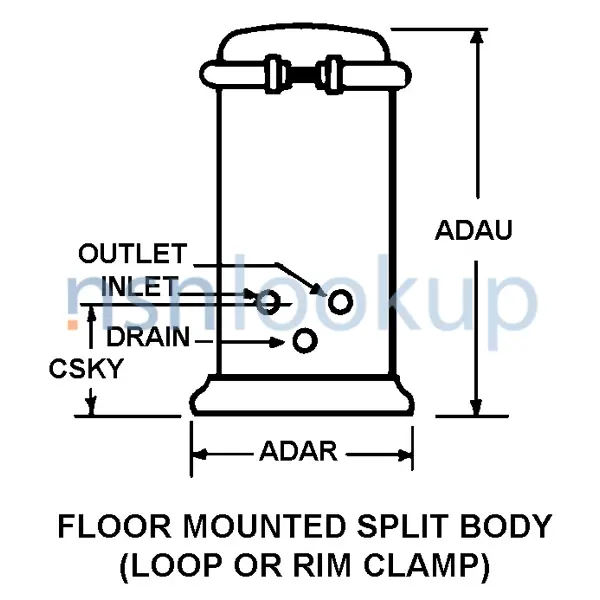

- Style Designator [STYL]
- Floor Mounted Split Body (Loop Or Rim Clamp)
- Body Outside Diameter [ADAR]
- 8.000 Inches Nominal
- Body Height [ADAU]
- 44.0625 Inches Nominal
- Material [MATT]
- Steel Comp 304L Body
- Media For Which Designed [MEDA]
- Water
- Mounting Type [AAXX]
- Bracket W/Drilled Hole Bottom Side
- Filtering System For Which Designed [CXZX]
- Full Flow
- Special Features [FEAT]
- 150Psi Rated Filter Housing; 12" O.D. Including Inlet And Outlet Ports
- End Item Identification [AGAV]
- 4610-01-436-3162 And 4610-01-436-3178
DLA Procurement Analysis 4610-01-437-0180
Management Data 4610-01-437-0180
NATO Stock Numbers Related to 4610-01-437-0180
Freight Information 4610-01-437-0180
4610-01-437-0180 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 123230. A Sub NMFC of Z. It has a NMFC Description of ACCUMULATOR/DISTILLER GAS/LIQUID. 4610-01-437-0180 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 62560 which rates the freight between FCL and LCL. 4610-01-437-0180 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72E for ocean manifesting and military sealift. 4610-01-437-0180 is not classified as a special type of cargo when transported by water. 4610-01-437-0180 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4610-01-437-0180 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
