4520-01-505-0268
Nonimmersion Type Electrical Heating Element
4520015050268 015050268 128063 117-052710-010 H32504-000
An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated. View more Nonimmersion Type Electrical Heating Element
November 2023
1
Marketplace 4520-01-505-0268
Request a Quotation from participating marketplace vendors
Related Documents 4520-01-505-0268 5+ Documents (More...)
(Identification) 2/4 NSN 4520-01-505-0268 (Identification 4520015050268 015050268,128063 (Identification
4520015050268 015050268,128063 (Identification) 1/4 NSN 4520-01-505-0268 (Identification) 2/4 NSN
/fsg-59/fsc-5905/dk
-37-505-0268 RQST Updated Every Day 8135-37-505 https//www.nsnlookup.com /fsg-45/fsc-4520/us 4520-01-505-0268
4520015050268 015050268,128063 (Identification) 1/4 NSN 4520-01-505-0268 (Identification) 2/4 NSN
) 2/4 NSN 4520-01-505-0268 (Identification https//www.nsnlookup.com /fsg-45/fsc-4520/us 4520-01-505-0268
4520015050268 015050268,128063 (Identification) 1/4 NSN 4520-01-505-0268 (Identification) 2/4 NSN 4520
Documents 9340-01-285-5792 2+ Documents ( More... https//www.nsnlookup.com /fsg-45/fsc-4520/us 4520-01-505-0268
4520015050268 015050268,128063 4520-01-505-0268 (Identification) 2/4 NSN 4520 https//www.nsnlookup.com
4320995587709995587709 4320-99-558-7709Centrifugal Pump4320995587709 995587709 1963-1279A801-099A825-1201963-128063
4320995587709995587709 7709Centrifugal Pump4320995587709 9955877091963-1279 A801-099A825-1201963-128063
Restrictions 4520-01-505-0268
4520-01-505-0268 is a Nonimmersion Type Electrical Heating Element that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4520-01-505-0268
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4520-01-505-0268
- US Air Force (FUGI)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FUKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 4520-01-505-0268
- Part Number
- Manufacturer
- Status
- 128063
- Manufacturer
- 65586 - Chromalox Inc (Active)
- Primary Buy
- Primary Buy
- 117-052710-010
- 65586 - Chromalox Inc (Active)
- Secondary Buy
- Secondary Buy
- H32504-000
- 8M906 - Teledyne Etm, Inc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 4520-01-505-0268
- Characteristic
- Specifications
- FIIG
- Specifications
- A01900
- Effective Heating Length [ABHS]
- 7.750 Nominal Inches
- Element Quantity [BHHK]
- 1
- Element Radiation Spectrum [ABJA]
- Noninfrared
- Element Connection Style [ABJS]
- Stud Type
- End Item Identification [AGAV]
- M3p Reu-M
- Body Style [AAQL]
- Strip, Finned
- Material [MATT]
- Iron Rust Resisting Sheath Or Steel Corrosion Resisting Sheath
- Maximum Wattage Rating In Watts [AZQH]
- 500.0 Single Voltage
- Mounting Method Style [AALX]

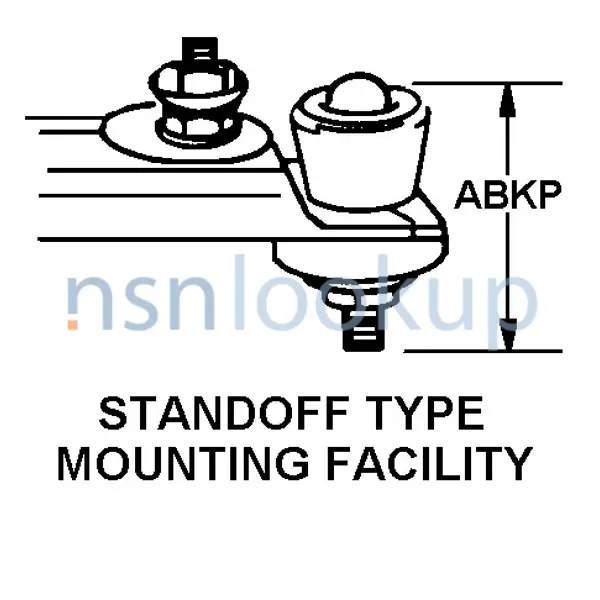

- Standoff Type Mounting Facility
- Nominal Thread Size [CQJX]
- 0.190 Inches Stud
- Length [ABRY]
- 7.750 Inches Nominal
- Overall Length [ABHP]
- 12.000 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Heating Element Elec
- Phase [FAAZ]
- Single Single Voltage
- Special Features [FEAT]
- See Dwg. For Add. Specs.
- Thread Quantity [CQRN]
- 32 Per Inch Stud
- Thread Series Designator [THSD]
- Unc Stud
- Voltage In Volts And Current Type [CSBH]
- 120.0 Ac Single Voltage
- Watt Density Rating [ABNS]
- 18.0 Per Square Inch Single Voltage
- Width [ABGL]
- 2.000 Inches Nominal
- Terminal Arrangement Style [ABJV]
- Offset Or Staggered At One End
- Terminal Length [ABJT]
- 0.562 Inches Nominal
- Terminal Quantity [AARA]
- 2
- Thermostat Range [ABJN]
- +225.0/+565.0 Deg Fahrenheit
