4520-01-210-7007
Air Conditioning-Heating Lateral
4520012107007 012107007 LC-2-12X10X10IN LC-2
A fitting having a branch or branches which are fixed at various angles other than 90 degrees (1.5708 radians) to the run, permitting lines to be taken off laterally from the main line. These laterals may be reducing type. View more Air Conditioning-Heating Lateral
May 2023
9
Marketplace 4520-01-210-7007
Request a Quotation from participating marketplace vendors
Related Documents 4520-01-210-7007 2+ Documents (More...)
BUY NE FedMall Updated Every Day 4520-01-210-7007 RQST NE Updated Every Day 4520-01-210-7007 RQST
Updated Every Day 4520-01-210-7007 RQST NE Related Documents 4520-01-210-7007 2+ Documents ( More...
https//www.nsnlookup.com /fsg-52/fsc-5210/ca 5210-21-902-1182 Dial Indicator 5210219021182 219021182,LC-2
Updated Every Day 5210-21-902-1182 RQST NE Related Documents : 7025-15-214-7540 is a Stampante Star Lc 2
Restrictions 4520-01-210-7007
4520-01-210-7007 is a Air Conditioning-Heating Lateral that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4520-01-210-7007
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- JN
Approved Sources 4520-01-210-7007
- Part Number
- Manufacturer
- Status
- LC-2-12X10X10IN
- Manufacturer
- 09098 - United Mcgill Corp (Obsolete)
- Original Design
- Original Design
- LC-2
- 09098 - United Mcgill Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4520-01-210-7007

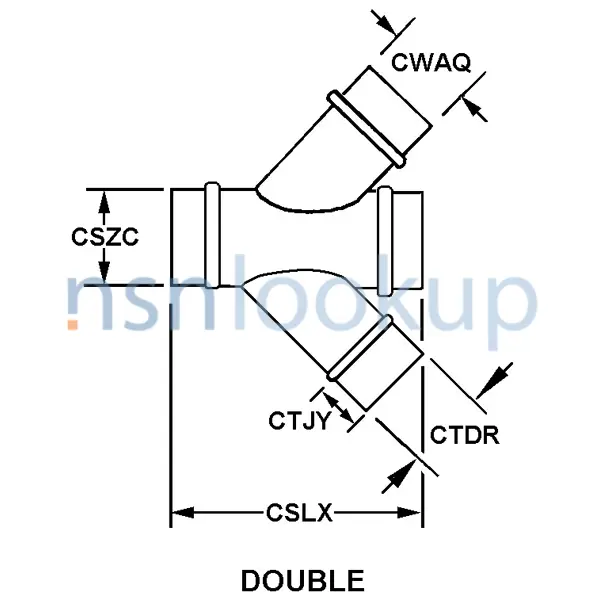

- Characteristic
- Specifications
- FIIG
- Specifications
- T114-A
- Attachment End Length [CTJY]
- 2.000 Inches Nominal
- First Branch Diameter [CTDR]
- 10.000 Inches Nominal
- Fitting Overall Length [CSLX]
- 32.280 Inches Nominal
- Material [MATT]
- Steel
- Main Trunk Inlet Diameter [CSZC]
- 12.000 Inches Nominal
- Second Branch Diameter [CWAQ]
- 10.000 Inches Nominal
- Sheet Metal Gage Size [ASMK]
- 20
- Style Designator [STYL]
- Double
- Surface Treatment [SFTT]
- Zinc Alloy
DLA Procurement Analysis 4520-01-210-7007
Management Data 4520-01-210-7007
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4520-01-210-7007
Freight Information 4520-01-210-7007
4520-01-210-7007 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 4520-01-210-7007 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 4520-01-210-7007 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72E for ocean manifesting and military sealift. 4520-01-210-7007 is not classified as a special type of cargo when transported by water. 4520-01-210-7007 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4520-01-210-7007 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
