4520-01-075-3726
Air Conditioning-Heating Tee
4520010753726 010753726 T-1R 24X14X10 IN.
A fitting having a branch or branches which are fixed at 90 degrees (1.5708 radians) to the run, It may be reducing, straight or conical type; and is used as a junction at the intersection of air conditioning-heating flue pipes or fittings. View more Air Conditioning-Heating Tee
May 2023
9
Marketplace 4520-01-075-3726
Request a Quotation from participating marketplace vendors
Related Documents 4520-01-075-3726 1+ Documents (More...)
BUY NE FedMall Updated Every Day 4520-01-075-3726 RQST NE Updated Every Day 4520-01-075-3726 RQST
) https//www.nsnlookup.com /fsg-45/fsc-4520/us 4520-01-075-3726 Air Conditioning-Heating Tee 4520010753726
Restrictions 4520-01-075-3726
4520-01-075-3726 is a Air Conditioning-Heating Tee that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 4520-01-075-3726
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
Approved Sources 4520-01-075-3726
- Part Number
- Manufacturer
- Status
- T-1R 24X14X10 IN.
- Manufacturer
- 09098 - United Mcgill Corp (Obsolete)
- Original Design
- Original Design
Datasheet 4520-01-075-3726
- Characteristic
- Specifications
- FIIG
- Specifications
- T114-A
- First Branch Diameter [CTDR]
- 10.000 Inches Nominal
- Material [MATT]
- Steel
- Main Trunk Reducing Outlet Diameter [CXBF]
- 14.000 Inches Nominal
- Main Trunk Inlet Diameter [CSZC]
- 24.000 Inches Nominal
- Sheet Metal Gage Size [ASMK]
- 20

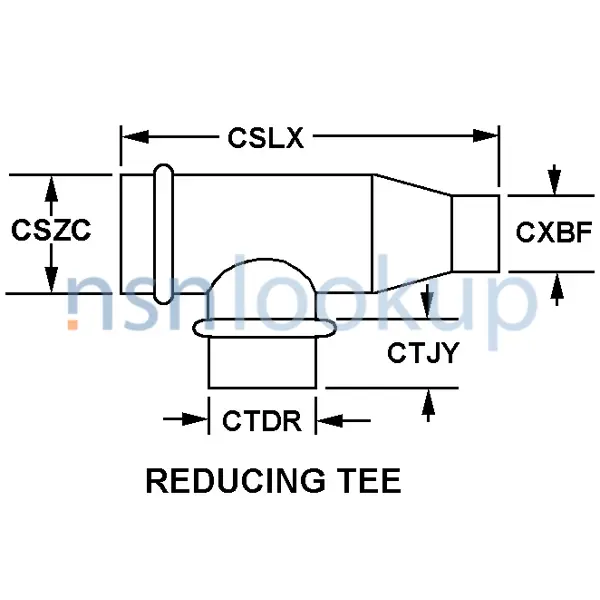

- Style Designator [STYL]
- Reducing Tee
- Surface Treatment [SFTT]
- Zinc
DLA Procurement Analysis 4520-01-075-3726
Management Data 4520-01-075-3726
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4520-01-075-3726
Freight Information 4520-01-075-3726
4520-01-075-3726 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 107120. A Sub NMFC of X. It has a NMFC Description of TEES/ZEES NOI I/S. 4520-01-075-3726 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55070 which rates the freight between FCL and LCL. 4520-01-075-3726 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 574 for ocean manifesting and military sealift. 4520-01-075-3726 is not classified as a special type of cargo when transported by water. 4520-01-075-3726 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4520-01-075-3726
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 5lb to 7.5lb, all dimensions less than 24"
- Above 110G
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Any Suitable Container
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
