4520-01-037-1318
Air Conditioning-Heating Lateral
4520010371318 010371318 L1R-16X14X6IN
A fitting having a branch or branches which are fixed at various angles other than 90 degrees (1.5708 radians) to the run, permitting lines to be taken off laterally from the main line. These laterals may be reducing type. View more Air Conditioning-Heating Lateral
May 2023
9
Marketplace 4520-01-037-1318
Request a Quotation from participating marketplace vendors
Related Documents 4520-01-037-1318 1+ Documents (More...)
Updated Every Day 4520-01-037-1318 RQST NE Related Documents 4520-01-037-1318 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-45/fsc-4520/us 4520-01-037-1318 Air Conditioning-Heating Lateral 010371318
Restrictions 4520-01-037-1318
4520-01-037-1318 is a Air Conditioning-Heating Lateral that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 4520-01-037-1318
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- JN
Approved Sources 4520-01-037-1318
- Part Number
- Manufacturer
- Status
- L1R-16X14X6IN
- Manufacturer
- 09098 - United Mcgill Corp (Obsolete)
- Original Design
- Original Design

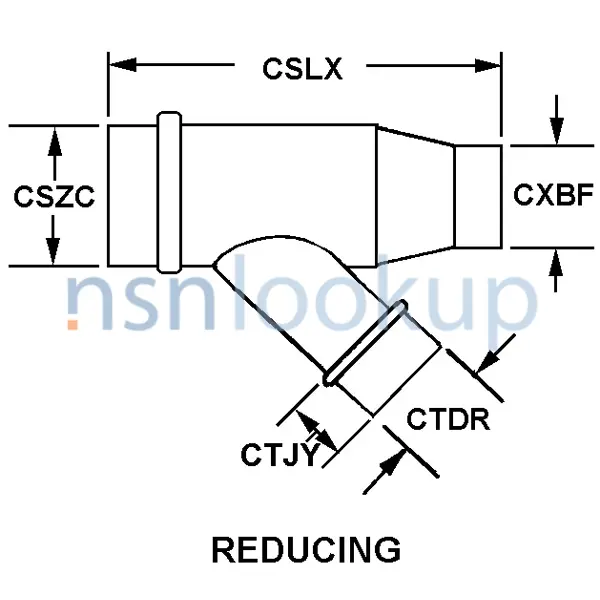

Datasheet 4520-01-037-1318
- Characteristic
- Specifications
- FIIG
- Specifications
- T114-A
- Attachment End Length [CTJY]
- 2.000 Inches Nominal
- First Branch Diameter [CTDR]
- 6.000 Inches Nominal
- Material [MATT]
- Steel
- Main Trunk Inlet Diameter [CSZC]
- 16.000 Inches Nominal
- Main Trunk Reducing Outlet Diameter [CXBF]
- 14.000 Inches Nominal
- Sheet Metal Gage Size [ASMK]
- 20
- Style Designator [STYL]
- Reducing
- Surface Treatment [SFTT]
- Zinc Alloy
DLA Procurement Analysis 4520-01-037-1318
Management Data 4520-01-037-1318
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4520-01-037-1318
Freight Information 4520-01-037-1318
4520-01-037-1318 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 4520-01-037-1318 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 4520-01-037-1318 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72E for ocean manifesting and military sealift. 4520-01-037-1318 is not classified as a special type of cargo when transported by water. 4520-01-037-1318 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4520-01-037-1318
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 4520-01-037-1318 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
