4520-00-787-9866
Air Conditioning-Heating Elbow
4520007879866 007879866 80770-1075
A fitting used to connect two sections of air conditioning-heating flue pipes of the same cross-sectional shape to form an angular turn. View more Air Conditioning-Heating Elbow
May 2023
7
Marketplace 4520-00-787-9866
Request a Quotation from participating marketplace vendors
Related Documents 4520-00-787-9866 1+ Documents (More...)
Updated Every Day 4520-00-787-9866 RQST NE Related Documents 4520-00-787-9866 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-45/fsc-4520/us 4520-00-787-9866 Air Conditioning-Heating Elbow 4520007879866
Restrictions 4520-00-787-9866
4520-00-787-9866 is a Air Conditioning-Heating Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4520-00-787-9866
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4520-00-787-9866
- US Air Force (FGGI)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FGKZ
Approved Sources 4520-00-787-9866
- Part Number
- Manufacturer
- Status
- 80770-1075
- Manufacturer
- 79343 - Asrc Federal Facilities Logistics, (Active)
- Primary Buy
- Primary Buy
- 80770-1075
- 93568 - Harsco Corp Bmy-Combat Systems Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4520-00-787-9866
- Characteristic
- Specifications
- FIIG
- Specifications
- T114-A
- Overall Length [ABHP]
- 20.500 Inches Nominal
- Overall Diameter [ADAV]
- 2.120 Inches Nominal
- Overall Thickness [ADUM]
- 0.060 Inches Nominal
- Overall Height [ABKW]
- 12.500 Inches Nominal
- Sheet Metal Gage Size [ASMK]
- 16
- Construction Type [ADTS]
- Single
- Angle In Deg [ADVR]
- 90.0

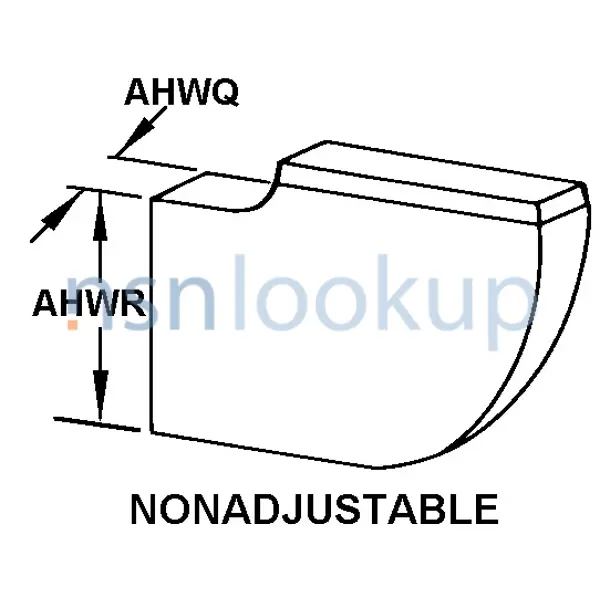

- Style Designator [STYL]
- Nonadjustable
DLA Procurement Analysis 4520-00-787-9866
Management Data 4520-00-787-9866
Similar Supply Items to 4520-00-787-9866
Freight Information 4520-00-787-9866
4520-00-787-9866 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 122840. A Sub NMFC of X. It has a NMFC Description of HEAT EXCHANGER SECTIONS/ELBOW ETC. 4520-00-787-9866 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 62380 which rates the freight between FCL and LCL. 4520-00-787-9866 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4520-00-787-9866 is not classified as a special type of cargo when transported by water. 4520-00-787-9866 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4520-00-787-9866
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-16173, Grade 2, Corrosion Preventive, Solvent Cutback, Cold Application, Soft Film
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 4520-00-787-9866 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
