4520-00-460-9461
Air Conditioning-Heating Elbow
4520004609461 004609461 687127-1 687127
A fitting used to connect two sections of air conditioning-heating flue pipes of the same cross-sectional shape to form an angular turn. View more Air Conditioning-Heating Elbow
May 2023
6
Marketplace 4520-00-460-9461
Request a Quotation from participating marketplace vendors
Related Documents 4520-00-460-9461 1+ Documents (More...)
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 687127
BUY NE FedMall Updated Every Day 4520-00-460-9461 RQST NE Updated Every Day 4520-00-460-9461 RQST
Restrictions 4520-00-460-9461
4520-00-460-9461 is a Air Conditioning-Heating Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4520-00-460-9461
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4520-00-460-9461
- US Air Force (FGGI)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FGKZ
Approved Sources 4520-00-460-9461
- Part Number
- Manufacturer
- Status
- 687127-1
- Manufacturer
- 96214 - Raytheon Company (Active)
- Primary Buy
- Primary Buy
- 687127
- 96214 - Raytheon Company (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4520-00-460-9461
- Characteristic
- Specifications
- FIIG
- Specifications
- T114-A
- Adjustability Feature [AMQT]
- Not Included
- Angle In Deg [ADVR]
- 30.0
- Construction Type [ADTS]
- Single
- Material [MATT]
- Aluminum Alloy
- Overall Height [ABKW]
- 0.660 Inches Nominal
- Overall Length [ABHP]
- 4.500 Inches Nominal
- Overall Width [ABMK]
- 4.000 Inches Nominal

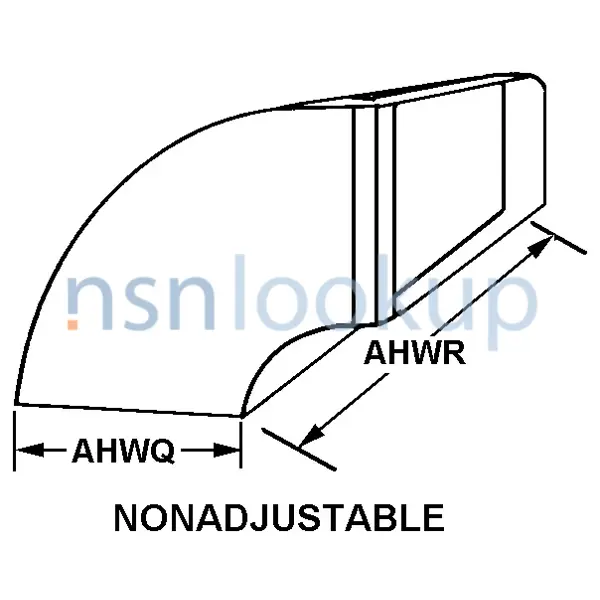

- Style Designator [STYL]
- Nonadjustable
DLA Procurement Analysis 4520-00-460-9461
Management Data 4520-00-460-9461
Similar Supply Items to 4520-00-460-9461
Freight Information 4520-00-460-9461
4520-00-460-9461 has freight characteristics managed by the General Services Administration (GSA).It has a National Motor Freight Classification (NMFC) of 051820. A Sub NMFC of X. It has a NMFC Description of PIPE R TUBING ALUM NOI. 4520-00-460-9461 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29920 which rates the freight between FCL and LCL. 4520-00-460-9461 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4520-00-460-9461 is not classified as a special type of cargo when transported by water. 4520-00-460-9461 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
