4520-00-203-9791
Nonimmersion Type Electrical Heating Element
4520002039791 002039791 21399A
An electrical device in the form of a resistor consisting of a resistance wire, an insulating material, and may be sheathed. Includes infrared elements. It is designed to transform electrical current into heat. It may include an automatic control to regulate the amount of heat generated. View more Nonimmersion Type Electrical Heating Element
January 2023
9
Marketplace 4520-00-203-9791
Request a Quotation from participating marketplace vendors
Related Documents 4520-00-203-9791 1+ Documents (More...)
RQST NE Updated Every Day 4520-00-203-9791 RQST Updated Every Day 4520-00-203-9791 RQST NE Related Documents
RQST NE Updated Every Day 4520-00-203-9791 RQST Updated Every Day 4520-00-203-9791 RQST NE Related Documents
Restrictions 4520-00-203-9791
4520-00-203-9791 is a Nonimmersion Type Electrical Heating Element that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4520-00-203-9791
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4520-00-203-9791
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4520-00-203-9791
- Part Number
- Manufacturer
- Status
- 21399A
- Manufacturer
- 02964 - American Sterilizer Company (Replaced)
- Original Design
- Original Design
- 21399A
- 0NWN1 - Steris Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4520-00-203-9791
- Characteristic
- Specifications
- FIIG
- Specifications
- A01900
- Element Connection Style [ABJS]
- Stud Type
- Element Radiation Spectrum [ABJA]
- Noninfrared
- Element Quantity [BHHK]
- 1
- Frequency In Hertz [FREQ]
- 60.0
- Heat Quantity [ABNR]
- 1

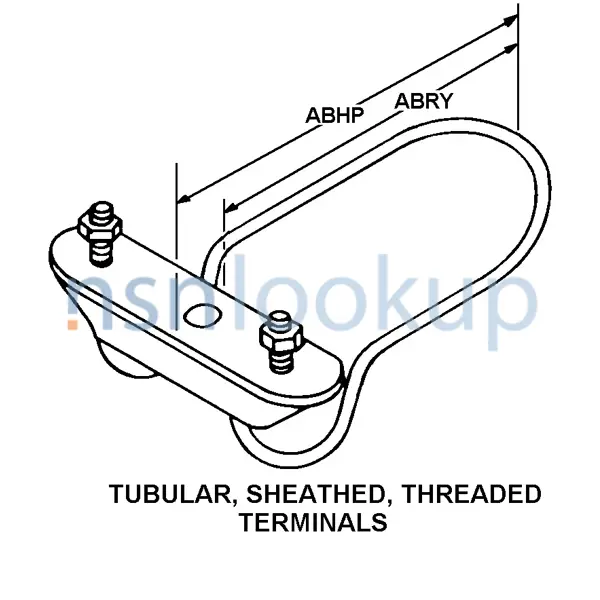

- Body Style [AAQL]
- Tubular, Sheathed, Threaded Terminals
- Material [MATT]
- Copper Sheath
- Material [MATT]
- Nickel Resistance Wire And Chromium Resistance Wire
- Maximum Wattage Rating In Watts [AZQH]
- 1600.0 Single Voltage
- Nominal Thread Size [CQJX]
- 0.375 Inches Stud
- Length [ABRY]
- 9.500 Inches Nominal
- Overall Length [ABHP]
- 10.125 Inches Nominal
- Phase [FAAZ]
- Single Single Voltage
- Voltage In Volts And Current Type [CSBH]
- 460.0 Ac Single Voltage
- Terminal Length [ABJT]
- 0.719 Inches Nominal
- Terminal Quantity [AARA]
- 2
- Thread Quantity [CQRN]
- 16.0 Per Inch Stud
- Thread Series Designator [THSD]
- Unc Stud
Similar Supply Items to 4520-00-203-9791
Freight Information 4520-00-203-9791
4520-00-203-9791 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061700. A Sub NMFC of Z. It has a NMFC Description of ELEC APPLIANCES/INSTRUMENTS NOI. 4520-00-203-9791 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 4520-00-203-9791 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 4520-00-203-9791 is not classified as a special type of cargo when transported by water. 4520-00-203-9791 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
