4470-00-892-5880
Nuclear Coolant System Seal Ring
4470008925880 008925880 8915A52B1 S1C4100DC7009PC3
An item designed to be seal welded to segments on components of a nuclear power plant coolant system, such as valves, demineralizers, heat exchangers, pumps, and the like, to form an efficient seal against the leakage of the primary coolant to the ambient. Excludes SEAL RING, METAL. View more Nuclear Coolant System Seal Ring
January 2023
8
Marketplace 4470-00-892-5880
Request a Quotation from participating marketplace vendors
Related Documents 4470-00-892-5880 1+ Documents (More...)
United States (US) 4. 4470-00-892-5880 Marketplace Restrictions Approved Sources Datasheet Management
/fsc-4470/us 4470-00-892-5880 Nuclear Coolant System Seal Ring 008925880 8915A52B1S1C4100DC7009PC3 An
Restrictions 4470-00-892-5880
4470-00-892-5880 is a Nuclear Coolant System Seal Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List or Commerce Control List Item where the Item Manager, Equipment Specialist or Product Specialist must provide special demilitarization instructions. This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4470-00-892-5880
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4470-00-892-5880
- Part Number
- Manufacturer
- Status
- 8915A52B1
- Manufacturer
- 16497 - Dresser, Inc. (Obsolete)
- Original Design
- Original Design
- S1C4100DC7009PC3
- 80376 - Combustion Engineering Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4470-00-892-5880
- Characteristic
- Specifications
- FIIG
- Specifications
- T241-D

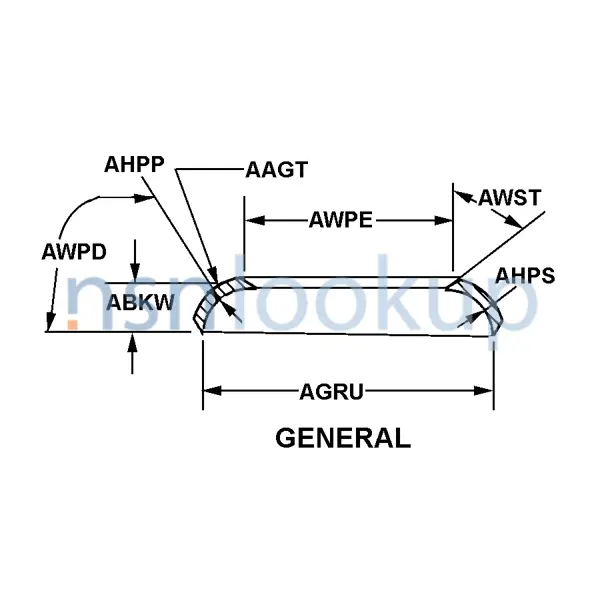

- Cross-Sectional Shape Style [AAGR]
- General
- Material [MATT]
- Nickel Alloy 400
- Inner Radius [AHPS]
- 0.281 Inches Nominal
- Largest Inside Diameter [AGRU]
- 3.189 Inches Nominal
- Reference Number Differentiating Characteristics [ZZZY]
- Selected And Tested For Nuclear Systems Special Cleaned In Accordance With Mil-C-19874/Ships/
- Small Inside Diameter [AWPE]
- 2.625 Inches Nominal
- Outer Radius [AHPP]
- 0.374 Inches Nominal
- Outside Diameter Surface Angle In Deg [AWPD]
- 45.0
- Overall Height [ABKW]
- 0.343 Inches Nominal
- Material Document And Classification [MDCL]
- Unable To Decode
- Upper Inside Diameter Surface Angle In Deg [AWST]
- 45.0
- Wall Thickness [AAGT]
- 0.093 Inches Nominal
NATO Stock Numbers Related to 4470-00-892-5880
Freight Information 4470-00-892-5880
4470-00-892-5880 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 172640. A Sub NMFC of Z. It has a NMFC Description of SEALS, SECURITY. 4470-00-892-5880 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 4470-00-892-5880 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 84710 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 72E for ocean manifesting and military sealift. 4470-00-892-5880 is not classified as a special type of cargo when transported by water. 4470-00-892-5880 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
