4420-01-544-2022
Industrial Fluid Cooler Bonnet
4420015442022 015442022 3-130-2-08-220-06
An item designed to be attached to a SHELL, FLUID COOLER, INDUSTRIAL to provide direction of flow with minimum impact on tube ends and TUBE SHEET, FLUID COOLER, INDUSTRIAL and provide access to tubes without removal of piping. View more Industrial Fluid Cooler Bonnet
January 2023
2
Marketplace 4420-01-544-2022
Request a Quotation from participating marketplace vendors
Related Documents 4420-01-544-2022 1+ Documents (More...)
/fsg-44/fsc-4420/us 4420-01-544-2022 Industrial Fluid Cooler Bonnet 4420015442022 United States (US)
4. 4420-01-544-2022 Marketplace Restrictions RQST NE Updated Every Day 4420-01-544-2022 RQST Updated
Restrictions 4420-01-544-2022
4420-01-544-2022 is a Industrial Fluid Cooler Bonnet that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4420-01-544-2022
- Australia (ZA01)
- Effective Date:
- 1 Oct 2006
Approved Sources 4420-01-544-2022
- Part Number
- Manufacturer
- Status
- 3-130-2-08-220-06
- Manufacturer
- 6LE50 - Fluid Handling Llc (Active)
- Primary Buy
- Primary Buy
- 3-130-2-08-220-06
- 51900 - Itt Corporation (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4420-01-544-2022
- Characteristic
- Specifications
- FIIG
- Specifications
- A28500
- Material [MATT]
- Copper Alloy Overall
- Material Document And Classification [MDCL]
- Astm 8584 Alloy 922 Assn Std Single Material Response Overall

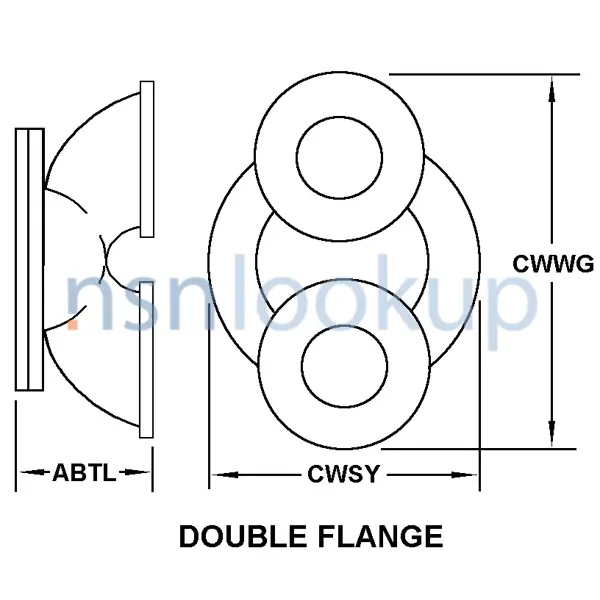

- Style Designator [STYL]
- Double Flange
- Diameter [CWSY]
- 8.000 Inches Nominal
- Height [CWWG]
- 10.250 Inches Nominal
- Special Features [FEAT]
- Maxium Design Pressure Of 200 Psig
- Part Name Assigned By Controlling Agency [CXCY]
- Bonnet,Sta,End
Similar Supply Items to 4420-01-544-2022
Freight Information 4420-01-544-2022
4420-01-544-2022 has freight characteristics managed by Australia.. 4420-01-544-2022 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
