4420-01-509-0727
Industrial Fluid Cooler
4420015090727 015090727 D-2430-1
An apparatus designed to lower the temperature of a fluid by bringing it into proximity with another fluid of lower temperature so that heat transfer is effected by conduction through the walls of separating chambers. Excludes air conditioning equipment, refrigeration equipment, and radiators. View more Industrial Fluid Cooler
November 2023
1
Marketplace 4420-01-509-0727
Request a Quotation from participating marketplace vendors
Related Documents 4420-01-509-0727 1+ Documents (More...)
Updated Every Day 4420-01-509-0727 RQST NE Related Documents 4420-01-509-0727 1+ Documents ( More...
) https//www.nsnlookup.com /fsg-44/fsc-4420/us 4420-01-509-0727 Industrial Fluid Cooler 4420015090727
Restrictions 4420-01-509-0727
4420-01-509-0727 is a Industrial Fluid Cooler that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4420-01-509-0727
- US Navy (N9BC)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4420-01-509-0727
- Part Number
- Manufacturer
- Status
- D-2430-1
- Manufacturer
- 78730 - Xchanger Manufacturing Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 4420-01-509-0727
- Characteristic
- Specifications
- FIIG
- Specifications
- A28500
- Material [MATT]
- Steel Corrosion Resisting Shell
- Material [MATT]
- Copper Alloy Tube Sheet
- Material [MATT]
- Copper Alloy Tubes

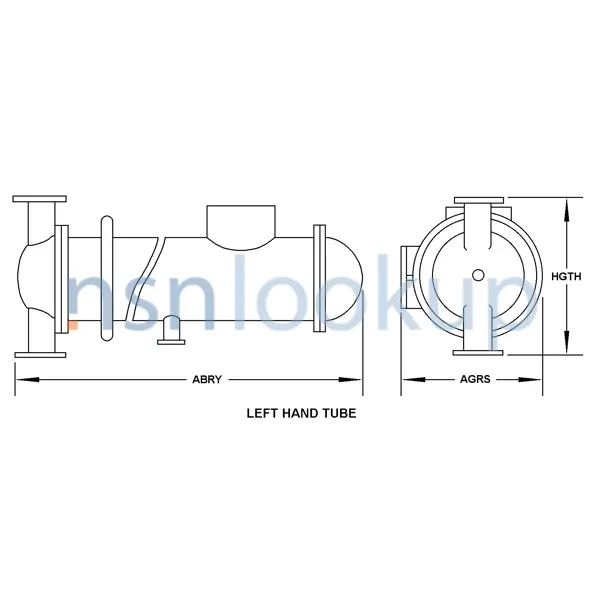

- Style Designator [STYL]
- Left Hand Tube
- Length [ABRY]
- 8.375 Inches Nominal
- Distance Between Flanges [AGRS]
- 20.000 Inches Nominal
- Height [HGTH]
- 20.000 Inches Nominal
- Heat Transfer Method [BRXN]
- Indirect
- Effective Heat Transfer Surface Area [CTRC]
- 156.0 Square Feet
- Special Features [FEAT]
- Material:Shell: Cres, Tubing: B111-715 70/30 Cuni, Tube Sht: B171-715 70/30 Cuni, Battles: Cres T304, A240; Tierods: Cres T304, Spacers: Cres T304, A269. Flow Rate: Shell Side(Air): 11520 Lbs/Hr, Tube Side(Seawater) 150 Gpm; Design Pressure: 100 Psig; Passes: Air 1, Tube 2
- End Item Identification [AGAV]
- Cooler Air, Size 1206, 2Pass
