4420-01-420-3893
Fluid Cooler Core Assembly
4420014203893 014203893 4-286-06-030-001 5-131-06-030-002 PC2
An assembled unit which may consist of tubes, tube sheets, baffles and fins which comprise the basic heat transfer element of a COOLER, FLUID, TRANSMISSION and COOLER, FLUID, INDUSTRIAL. Excludes automotive radiators. View more Fluid Cooler Core Assembly
May 2023
2
Marketplace 4420-01-420-3893
Request a Quotation from participating marketplace vendors
Related Documents 4420-01-420-3893 2+ Documents (More...)
BUY NE FedMall Updated Every Day 4420-01-420-3893 RQST NE Updated Every Day 4420-01-420-3893 RQST
Updated Every Day 4420-01-420-3893 RQST NE Related Documents 4420-01-420-3893 2+ Documents ( More...
Fluid Cooler Core Assembly 4420014203893 Account Upgrade 4420-01-420-3893Fluid Cooler Core Assembly4420014203893
014203893 4-286-06-030-001 5-131-06-030-002 NumberManufacturerStatus4-286-06-030-001 51900 - Itt Corporation
Restrictions 4420-01-420-3893
4420-01-420-3893 is a Fluid Cooler Core Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 4420-01-420-3893
- US Navy (N9BC)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
Approved Sources 4420-01-420-3893
- Part Number
- Manufacturer
- Status
- 4-286-06-030-001
- Manufacturer
- 51900 - Itt Corporation (Replaced)
- Original Design
- Original Design
- 5-131-06-030-002 PC2
- 51900 - Itt Corporation (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4420-01-420-3893
- Characteristic
- Specifications
- FIIG
- Specifications
- A28500
- End Item Identification [AGAV]
- Navy Weapon System Code Kk, 170.0Ft Patrol Coastal (Pc-1) Class Ships
- Core Length [AKMJ]
- 32.813 Inches Nominal
- Heat Transfer Method [BRXN]
- Indirect
- Material Document And Classification [MDCL]
- Mil-C-15726 Com+90/10 Mil Spec Single Material Response Tube Sheet
- Material Document And Classification [MDCL]
- Mil-T-2217 Claa Com+90/10 Mil Spec Single Material Response Tubes
- Material Thickness [ABPX]
- 0.044 Inches Nominal
- Material [MATT]
- Copper Alloy 715 Tubes
- Material [MATT]
- Copper Alloy Ca706 Tube Sheet
- Material [MATT]
- Steel Plates
- Material Document And Classification [MDCL]
- Astm A516 Gr70 Assn Std Single Material Response Plates
- Special Features [FEAT]
- Bundle Sub-Assembly
- Tubing Outside Diameter [AQRX]
- 0.500 Inches Nominal Both Inlet And Outlet Tube Ends
- Style Designator [STYL]

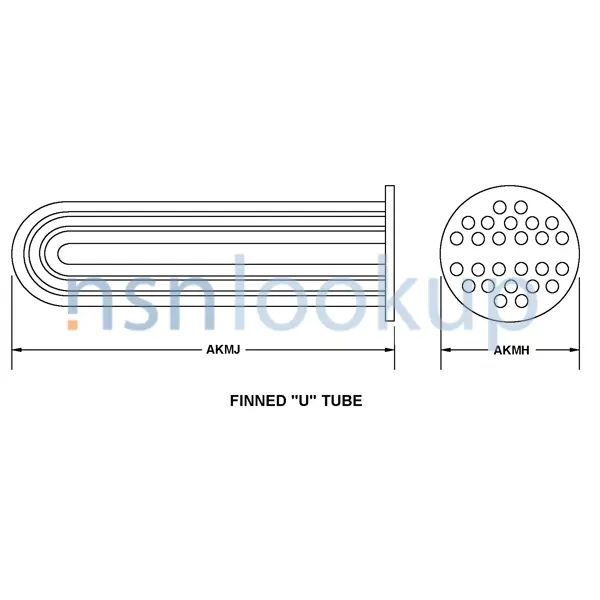

- Finned "U" Tube
