4330-01-617-7850
Fluid Filter Cover
4330016177850 016177850 48297
A rigid item of various shapes designed as a component of a fluid filter, acting as the cover and retaining the filter element in place. The item does not have an inlet or outlet connection. It is fastened onto the FILTER BODY, FLUID by means of clamps or bolts. For items with inlet and/or outlet connections, see HEAD, FLUID FILTER. View more Fluid Filter Cover
January 2023
3
Marketplace 4330-01-617-7850
Request a Quotation from participating marketplace vendors
Related Documents 4330-01-617-7850 5+ Documents (More...)
4330-01-617-7850 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-43/fsc-4330/us 4330-01-617-7850
/fsg-43/fsc-4330/us 4330-01-617-7850 RQST NE Updated Every Day 4330-01-617-7850 RQST Updated Every Day
JavaScript in your web browser . 5360-14-216-2586Compression Helical Spring5360142162586 142162586 48297
Fluid Filter Cover 4330016177850 016177850 for $1 a day Upgrade your Account Upgrade 4330-01-617
https//www.nsnlookup.com /fsg-43/fsc-4330/us 4330-01-617-7850 Fluid Filter Cover 4330016177850 016177850
for $1 a day Upgrade your Account Upgrade 4330-01-617-7850Fluid Filter Cover4330016177850 016177850
www.nsnlookup.com /fsg-76/fsc-7610/it 7610-15-232-8108 Libronefer 7610152328108152328108 ISBN 88-04-48297
enable JavaScript in your web browser . 7610-15-232-8108Libronefer7610152328108 152328108 ISBN 88-04-48297
//www.nsnlookup.com /fsg-43/fsc-4330/us 4330-01-617-7850 Fluid Filter Cover 4330016177850016177850 48297
https//www.nsnlookup.com /fsg-43/fsc-4330/us 4330-01-617-7850 Fluid Filter Cover 4330016177850 016177850
Restrictions 4330-01-617-7850
4330-01-617-7850 is a Fluid Filter Cover that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4330-01-617-7850
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4330-01-617-7850
- Spain (YB01)
- Effective Date:
- 1 Apr 2013
Approved Sources 4330-01-617-7850
- Part Number
- Manufacturer
- Status
- 48297
- Manufacturer
- 04366 - Liquid Controls, L.L.C. (Active)
- Primary Buy
- Primary Buy
Datasheet 4330-01-617-7850
- Characteristic
- Specifications
- FIIG
- Specifications
- T384-D
- Attachment Method [ABSX]
- Bolted

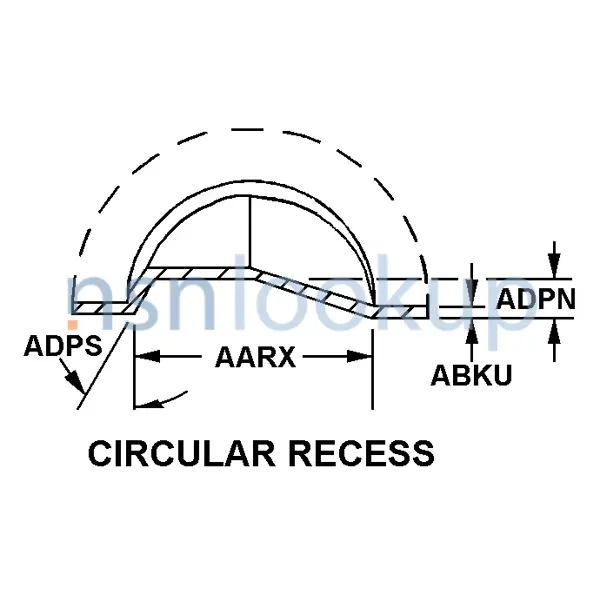

- Cross-Sectional Shape Style [AAGR]
- Circular Recess
- Fluid Filter Element Retainer [CDXL]
- Not Included
- Material [MATT]
- Aluminum
- Part Name Assigned By Controlling Agency [CXCY]
- Housing,F-7 Strainer,Aluminum

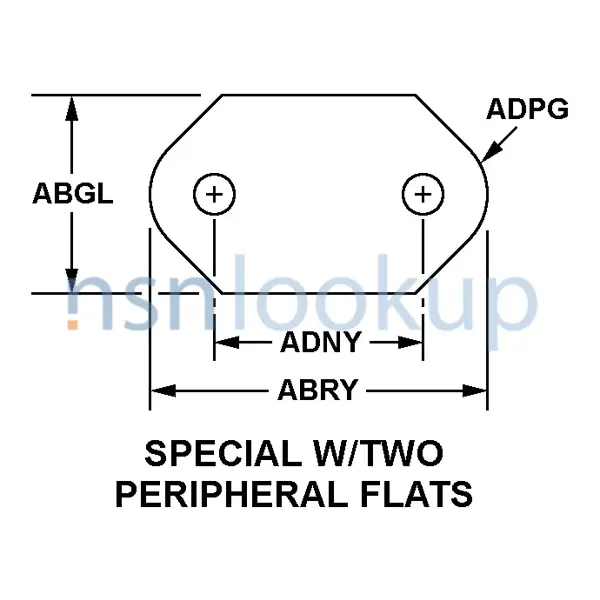

- Peripheral Shape Style [ABMW]
- Special W/Two Peripheral Flats
- Special Features [FEAT]
- Item Is An Integral Piece Part Of An Assembly Consisting Of The Housing,F-7 Strainer Aluminum Which Is Anodized;1 Cover Strainer,Anodized Aluminum;1 Strainer Manual;1 Name Plate,Strainer Addembly;1 O-Ring 2.88 Id Buna-N-Ul,3.12 Od X .12 Dis Wall;1 O-Ring 2.50 Id Buna-N 3.00 Od X .25 Sqr Wall;1 O-Ring 4.75 Id Buna-N 5.00 Od X .12 Sqr Wall;8 Screws .375-16 X 1.25 Hex Hd Cap,Gr 8;2 Screw,Drv No. 2 X .19 Type "U";8 Flat Washers .406 Id, .812 Od X .062 Thk
Similar Supply Items to 4330-01-617-7850
Freight Information 4330-01-617-7850
4330-01-617-7850 has freight characteristics.. 4330-01-617-7850 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
