4330-01-439-6167
Fluid Filter
4330014396167 014396167 RFP660F108V5 RFP/HC660DN10B1.0/16V 6139171 FIND 13 RFP660F108B5V 6139171
A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER. View more Fluid Filter
June 2023
2
Marketplace 4330-01-439-6167
Request a Quotation from participating marketplace vendors
Related Documents 4330-01-439-6167 5+ Documents (More...)
(Identification) 1/3 NSN 4330-01-439-6167 (Identification) 2/3 NSN 4330-01-439-6167 (Identification
Updated Every 15 Minutes 4330-01-439-6167 BUY NE FedMall Updated Every Day 4330-01-439-6167 RQST NE
FIND 175 6139171 A clamp in which the body (band or wire) completely encircles an item and distributes
Fluid Filter 4330014396167 014396167 FIND 13 RFP660F108B5V 6139171 A filter having inlet and outlet
FIND 185 6139171 A clamp in which the body (band or wire) completely encircles an item and distributes
Split Flange Parts Kit 4730014394098 FIND 72 6139171 A parts kit used to install and/or repair https
FIND 179 6139171 A clamp in which the body (band or wire) completely encircles an item and distributes
Split Flange Parts Kit 4730014394098 FIND 72 6139171 A parts kit used to install and/or repair https
FIND 22 6139171 A manually or power operated valve designed to control the flow of a fluid by the rotation
FIND 175 6139171 A clamp in which the body (band or wire) completely encircles an item and distributes
Restrictions 4330-01-439-6167
4330-01-439-6167 is a Fluid Filter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4330-01-439-6167
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4330-01-439-6167
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Supplementary Collaborators:
- HD
Approved Sources 4330-01-439-6167
- Part Number
- Manufacturer
- Status
- RFP/HC660DN10B1.0/16V
- Manufacturer
- 59793 - Hydac Corp (Active)
- Primary Buy
- Primary Buy
- 6139171 FIND 13
- 80091 - Naval Facilities Engineering Command (Active)
- Secondary Buy
- Secondary Buy
- RFP660F108B5V
- 59793 - Hydac Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- RFP660F108V5
- 59793 - Hydac Corp (Active)
- Advisory Reference
- Advisory Reference
- 6139171
- 80091 - Naval Facilities Engineering Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4330-01-439-6167
- Characteristic
- Specifications
- FIIG
- Specifications
- A24000
- Drop Pressure [ADNP]
- 2.0 Pounds Per Square Inch
- Body Height [ADAU]
- 16.610 Inches Nominal
- Body Outside Diameter [ADAR]
- 8.190 Inches Nominal
- Design Type [APGF]
- Reusable
- Differential Pressure [ADNQ]
- 145.0 Pounds Per Square Inch
- Distance Between Mounting Hole Centers [AFQM]
- 6.540 Inches Nominal
- Features Provided [CBBL]
- By-Pass Valve And Differential Pressure Indicator
- Filtering Element Quantity [CCZM]
- 1
- Filtering Media Design [CRXW]
- Pleated Single Filtering Media Response
- Filtering System For Which Designed [CXZX]
- Full Flow
- Filtration Rating In Microns [ADNH]
- 10.0 Nominal
- First Discharge Connection Relationship To Intake Connection [CSJR]
- Not Identical
- First Discharge Connection Type [CSKS]
- Threaded Internal Pipe Bottom
- First Intake Connection Type [CRXZ]
- Plain Face Flange Side Near Top
- First Intake Flange Face Style [CTBJ]
- Plain

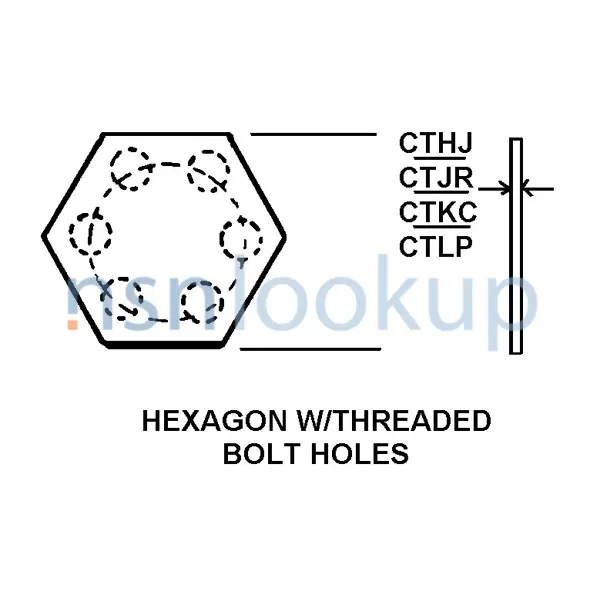

- First Intake Flange Shape Style [CSTD]
- Hexagon W/Threaded Bolt Holes
- Material [MATT]
- Paper Filtering Medium
- Material [MATT]
- Plastic Polytetrafluoroethylene Seal
- Maximum Operating Pressure [CQGM]
- 360.0 Pounds Per Square Inch
- Media For Which Designed [MEDA]
- Fuel/Oil, Hydrocarbon
- Mounting Hole Quantity [ABTJ]
- 4
- Mounting Hole Diameter [ABTB]
- 0.551 Inches Nominal
- Mounting Type [AAXX]
- Unthreaded Hole Center
- Style Designator [STYL]
- Ell Type (Hydraulic)
- Second Discharge Nominal Thread Size [CTQF]
- 3.000 Inches
- Second Discharge Thread Direction [CXTT]
- Right-Hand
- Second Discharge Thread Series Designator [CTGB]
- Npt
- Part Name Assigned By Controlling Agency [CXCY]
- In-Tank Return Line Filter
- Special Features [FEAT]
- Standard Return Line Bypass Valve With Cracking Pressure Of 43 Psid
- Temp Rating [AZKQ]
- 15.0 Deg Fahrenheit Minimum And 250.0 Deg Fahrenheit Maximum
DLA Procurement Analysis 4330-01-439-6167
Management Data 4330-01-439-6167
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 4330-01-439-6167
Freight Information 4330-01-439-6167
4330-01-439-6167 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 069100. A Sub NMFC of Z. It has a NMFC Description of FILTERS:CARTRIDGES/ELEMENTS. 4330-01-439-6167 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 21275 which rates the freight between FCL and LCL. 4330-01-439-6167 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 4330-01-439-6167 is not classified as a special type of cargo when transported by water. 4330-01-439-6167 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4330-01-439-6167
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
