4330-01-360-4456
Fluid Filter
4330013604456 013604456 44-409-2 11914522 44-409
A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER. View more Fluid Filter
May 2023
5
Marketplace 4330-01-360-4456
Request a Quotation from participating marketplace vendors
Related Documents 4330-01-360-4456 2+ Documents (More...)
(Identification) 1/3 NSN 4330-01-360-4456 (Identification) 3/3 NSN 4330-01-360-4456 (Identification
BUY NE FedMall Updated Every Day 4330-01-360-4456 RQST NE Updated Every Day 4330-01-360-4456 RQST
/fsg-29/fsc-2990/us
Restrictions 4330-01-360-4456
4330-01-360-4456 is a Fluid Filter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4330-01-360-4456
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4330-01-360-4456
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HDHX
Approved Sources 4330-01-360-4456
- Part Number
- Manufacturer
- Status
- 44-409-2
- Manufacturer
- 00743 - Burgess Manning, Inc. (Active)
- Primary Buy
- Primary Buy
- 11914522
- 7PZX0 - Fairbanks Morse, Llc (Active)
- Secondary Buy
- Secondary Buy
- 11914522
- 00743 - Burgess Manning, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 11914522
- 82796 - Coltec Industries Inc. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 44-409
- 00743 - Burgess Manning, Inc. (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4330-01-360-4456
- Characteristic
- Specifications
- FIIG
- Specifications
- A24000
- End Item Identification [AGAV]
- Fairbanks-Morse 8 Cyl 38D8-1/8 Engine At 720Rpm And 900Rpm
- Body Height [ADAU]
- 63.125 Inches Nominal
- Body Outside Diameter [ADAR]
- 36.500 Inches Nominal
- Bracket Quantity [CBQD]
- 2
- Design Type [APGF]
- Reusable
- Distance Between Mounting Hole Centers [AFQM]
- 4.500 Inches Nominal And 35.000 Inches Nominal
- Features Provided [CBBL]
- Drain Plug
- Filtering Element Quantity [CCZM]
- 3
- Filtering Media Design [CRXW]
- Cellular Single Filtering Media Response
- Filtering System For Which Designed [CXZX]
- Full Flow
- First Discharge Connection Type [CSKS]
- Plain Face Flange Bottom Side
- First Discharge Connection Relationship To Intake Connection [CSJR]
- Not Identical
- First Discharge Flange Outside Diameter [CSYK]
- 21.250 Inches Nominal
- First Discharge Flange Face Style [CTCS]
- Plain
- First Discharge Flange Shape Style [CSWC]
- Round W/Unthreaded Bolt Holes
- First Discharge Flange Thickness [CTKC]
- 1.000 Inches Nominal
- First Intake Connection Type [CRXZ]
- Plain Face Flange End
- First Intake Flange Face Style [CTBJ]
- Plain
- First Intake Flange Outside Diameter [CSRH]
- 23.500 Inches Nominal
- First Intake Flange Thickness [CTHJ]
- 1.000 Inches Nominal
- First Intake Flange Shape Style [CSTD]
- Round W/Unthreaded Bolt Holes
- Material [MATT]
- Metal Body
- Media For Which Designed [MEDA]
- Air
- Mounting Hole Quantity [ABTJ]
- 4
- Mounting Hole Diameter [ABTB]
- 0.688 Inches Nominal
- Mounting Type [AAXX]
- Bracket W/Drilled Hole Top Side

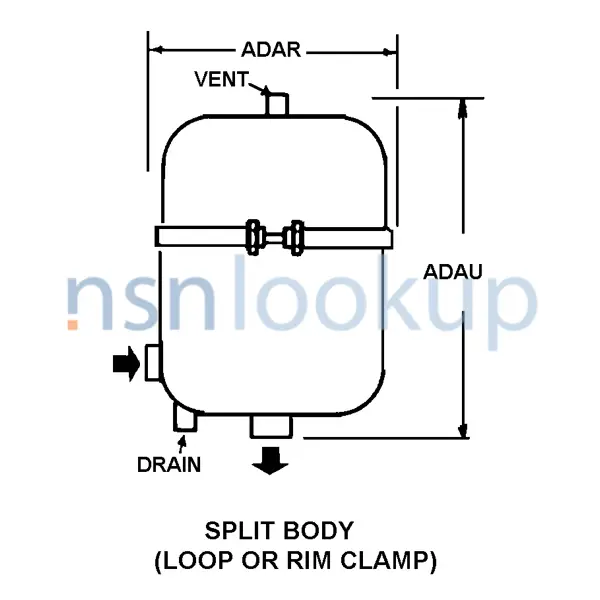

- Style Designator [STYL]
- Split Body (Loop Or Rim Clamp)
- Special Features [FEAT]
- Barrel-Type Shaped Inlet On One End And Removable Cover On Other; Outlet On Bottom,41.250In. From Inlet,Outlet Falnge Has 16Ea. 3/4In. Holes On 19.250In. B.C.; Inlet Flange Has 16Ea 3/4In.Holes On 21.250In. B.C.;2 Brackets Welded On Top;Filters 1-Nom 20-20 And 2 Nom 16-20 Elements; Cover Clamped With 3 Threaded J-Hook Locking Devises W/ Wing Nuts Located 120.0Deg Apart Around Rim; Filter Meets Mil-F-7194;Finished W/Magnacoat Cp-211 (Black); Unit Designed For Navy High-Shock Condition
- Supplementary Features [SUPP]
- Requires 4 Unit Per Installation
- Surface Treatment [SFTT]
- Paint Body
- Temp Rating [AZKQ]
- 199.0 Deg Fahrenheit Maximum
DLA Procurement Analysis 4330-01-360-4456
Management Data 4330-01-360-4456
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4330-01-360-4456
Freight Information 4330-01-360-4456
4330-01-360-4456 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 069100. A Sub NMFC of Z. It has a NMFC Description of FILTERS:CARTRIDGES/ELEMENTS. 4330-01-360-4456 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 21275 which rates the freight between FCL and LCL. 4330-01-360-4456 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 4330-01-360-4456 is not classified as a special type of cargo when transported by water. 4330-01-360-4456 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
