4330-01-334-9422
Fluid Filter Cover
4330013349422 013349422 803-841499-4 RE 803-841499 PC4-1.0 AY96 803-841499-4REVK AY96BRZ 841499K-PC-4-1.0 AY96BRZ 841499
A rigid item of various shapes designed as a component of a fluid filter, acting as the cover and retaining the filter element in place. The item does not have an inlet or outlet connection. It is fastened onto the FILTER BODY, FLUID by means of clamps or bolts. For items with inlet and/or outlet connections, see HEAD, FLUID FILTER. View more Fluid Filter Cover
November 2023
6
Marketplace 4330-01-334-9422
Request a Quotation from participating marketplace vendors
Related Documents 4330-01-334-9422 5+ Documents (More...)
803-841499 REV L AY93BRZ 841499 A strainer -13 FOR AY89 803- Restrictions 4330-01-334-9422 DEMIL: A
2IN MOD 5000S4823F84149 803-841499841499 2IN 803-841499 AY93BRZ 803-841499 REV 4330-01-334-9422 Fluid
5330015405722015405722 2IN MOD 5000S4823F84149 803-841499 841499 2IN 803-841499 AY93BRZ 803-841499 REV
4330-01-334-9422 Fluid Filter Cover 4330013349422 013349422 -4 RE 803-841499 PC4-1.0 AY96 803-841499
-01-334-9422 Fluid Filter Cover 4330013349422 013349422 -4 RE 803-841499 PC4-1.0 AY96 803-841499-4REVK
AY96BRZ 841499K-PC-4-1.0 AY96BRZ 841499 A rigid item of AY93BRZ 803-841499 REV L AY93BRZ 841499 A strainer
REV L AY93BRZ 841499 A strainer https//www.nsnlookup.com /fsg 841499 2IN 803-841499 AY93BRZ 803-841499
2IN 803-841499 AY93BRZ 803-841499 REV L AY93BRZ https//www.nsnlookup.com /fsg-43/fsc-4330/us 4330-01
2IN803-841499 AY93BRZ803-841499 REV L AY93BRZ 803-841499841499 2IN803-841499 2IN803-841499 AY93BRZ803
/fsg-47/fsc 841499 2IN803-841499 2IN 803-841499 AY93BRZ803-841499 REV L AY93BRZ803-841499841499 https
Restrictions 4330-01-334-9422
4330-01-334-9422 is a Fluid Filter Cover that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4330-01-334-9422
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4330-01-334-9422
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
Approved Sources 4330-01-334-9422
- Part Number
- Manufacturer
- Status
- 803-841499 PC4-1.0 AY96
- Manufacturer
- 80064 - Naval Ship Systems Command (Active)
- Primary Buy
- Primary Buy
- 803-841499-4REVK AY96BRZ
- 80064 - Naval Ship Systems Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 841499K-PC-4-1.0 AY96BRZ
- 80064 - Naval Ship Systems Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 803-841499-4 RE
- 80064 - Naval Ship Systems Command (Active)
- Advisory Reference
- Advisory Reference
- 841499
- 80064 - Naval Ship Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4330-01-334-9422
- Characteristic
- Specifications
- FIIG
- Specifications
- T384-D
- Body Outside Radius [ADPX]
- 0.094 Inches Nominal
- Body Thickness [ADPR]
- 0.4062 Inches Nominal

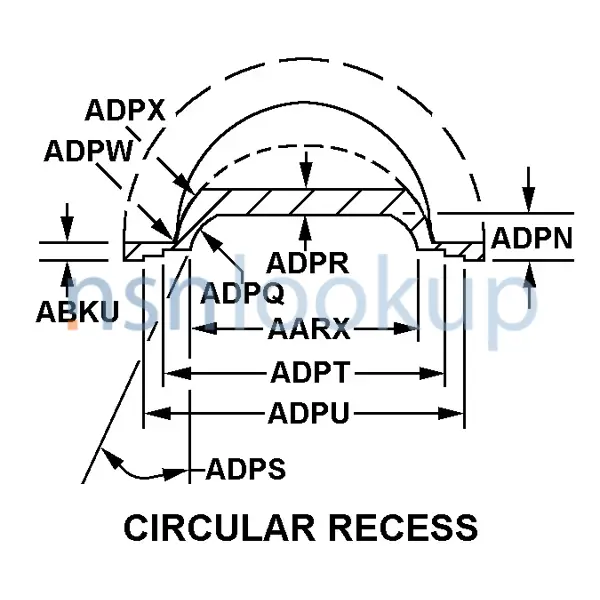

- Cross-Sectional Shape Style [AAGR]
- Circular Recess
- First Recess Inside Height [ADPN]
- 0.900 Inches Nominal
- Flange Thickness [ABKU]
- 0.187 Inches Nominal
- Fluid Filter Element Retainer [CDXL]
- Not Included
- Material [MATT]
- Copper Alloy
- Outside Corner Radius [ADPW]
- 0.093 Inches Nominal
- Supplementary Features [SUPP]
- E/I 1 In. Strainer Assembly (Y-Type), No. 96
- Inside Corner Radius [ADPQ]
- 0.0938 Inches Nominal
- Inside Diameter [AARX]
- 0.8125 Inches Nominal
- Second Recess Diameter [ADPU]
- 1.127 Inches Nominal
- Special Features [FEAT]
- Matl Per Astm 816; Threaded Attachment Method 1.43-16Un-2, 0.71In.Deep; 1.56In.Dia O/A; Hex Wrenching Facility On Top
Weapon Systems (WSDC) 4330-01-334-9422
DLA Procurement Analysis 4330-01-334-9422
- Last Stock Position:
- 5 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4330-01-334-9422
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4330-01-334-9422
Freight Information 4330-01-334-9422
4330-01-334-9422 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 069100. A Sub NMFC of Z. It has a NMFC Description of FILTERS:CARTRIDGES/ELEMENTS. 4330-01-334-9422 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 21275 which rates the freight between FCL and LCL. 4330-01-334-9422 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 4330-01-334-9422 is not classified as a special type of cargo when transported by water. 4330-01-334-9422 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
