4330-01-229-3301
Fluid Filter
4330012293301 012293301 061281
A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER. View more Fluid Filter
May 2023
5
Marketplace 4330-01-229-3301
Request a Quotation from participating marketplace vendors
Related Documents 4330-01-229-3301 5+ Documents (More...)
BUY NE FedMall Updated Every Day 4330-01-229-3301 RQST NE Updated Every Day 4330-01-229-3301 RQST
Updated Every Day 4330-01-229-3301 RQST NE Related Documents 4330-01-229-3301 5+ Documents ( More...
PIECE 2 061281 A replaceable device designed to remove solid particles from fluids ranging in density
-2.5 Fluid Filter Element 4330012293306012293306 IND NO 9 070282PC1042693080995-2.5061281 PIECE 2 061281
PC 1 061281 PIECE 1 A pliable rubber or composition ring-shaped element, split or jointless (solid)
) https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-229-4069 Plain Seal 5330012294069012294069 061281
PIECE 2 061281 A replaceable device designed to remove solid Fluid Filter Element 4730014530483014530483
Fluid Filter 4330012293301 012293301,061281 Fluid Filter Element 4330012293306 012293306 01-229
Fluid Filter 4330012293301 012293301,061281 Active) Primary Buy RNCC 3 RNVC 2 DAC 5 061281 https
Restrictions 4330-01-229-3301
4330-01-229-3301 is a Fluid Filter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4330-01-229-3301
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4330-01-229-3301
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
Approved Sources 4330-01-229-3301
- Part Number
- Manufacturer
- Status
- 061281
- Manufacturer
- 30634 - Beswick Engineering Co Inc (Active)
- Original Design
- Original Design
- 061281
- 66583 - Beswick Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4330-01-229-3301
- Characteristic
- Specifications
- FIIG
- Specifications
- A24000
- Body Height [ADAU]
- 16.875 Inches Minimum And 17.250 Inches Maximum
- Body Length [ADAQ]
- 11.125 Inches Minimum And 11.375 Inches Maximum
- Body Width [ADAT]
- 11.125 Inches Minimum And 11.375 Inches Maximum
- Design Type [APGF]
- Reusable
- Filtering Element Quantity [CCZM]
- 1
- First Discharge Connection Relationship To Intake Connection [CSJR]
- Not Identical
- First Intake Connection Type [CRXZ]
- Plain Face Flange Side
- First Intake Flange Face Style [CTBJ]
- Plain

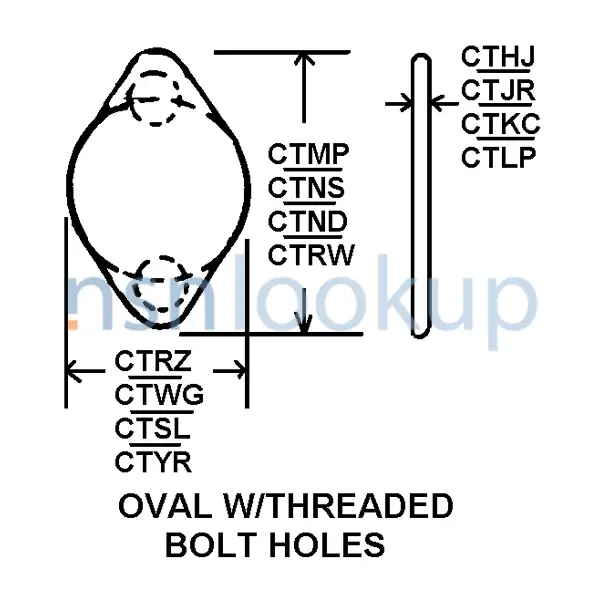

- First Intake Flange Shape Style [CSTD]
- Oval W/Threaded Bolt Holes
- First Intake Flange Thickness [CTHJ]
- 0.937 Inches Nominal
- Material [MATT]
- Steel Body
- Maximum Operating Pressure [CQGM]
- 180.0 Pounds Per Square Inch
- Style Designator [STYL]
- High Pressure Angle Strainer W/Bolted Cover
- Special Features [FEAT]
- Filtration 238 Micron
Weapon Systems (WSDC) 4330-01-229-3301
DLA Procurement Analysis 4330-01-229-3301
Management Data 4330-01-229-3301
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4330-01-229-3301
Freight Information 4330-01-229-3301
4330-01-229-3301 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 069100. A Sub NMFC of Z. It has a NMFC Description of FILTERS:CARTRIDGES/ELEMENTS. 4330-01-229-3301 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 21275 which rates the freight between FCL and LCL. 4330-01-229-3301 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 4330-01-229-3301 is not classified as a special type of cargo when transported by water. 4330-01-229-3301 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4330-01-229-3301 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
