4330-01-186-6076
Fluid Filter
4330011866076 011866076 01081500 12AT10CN15BBN BML61316 12330119
A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER. View more Fluid Filter
Managed by United States
NSN Created on 11 Aug 1984
Data Last Changed
November 2023
November 2023
NATO Update Count
8
8
NATO Data Quality
Marketplace 4330-01-186-6076
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4330-01-186-6076 2+ Documents (More...)
01081500 BML61316 12AT10CN15BBN 12330119 A filter having inlet and outlet connections and designed to

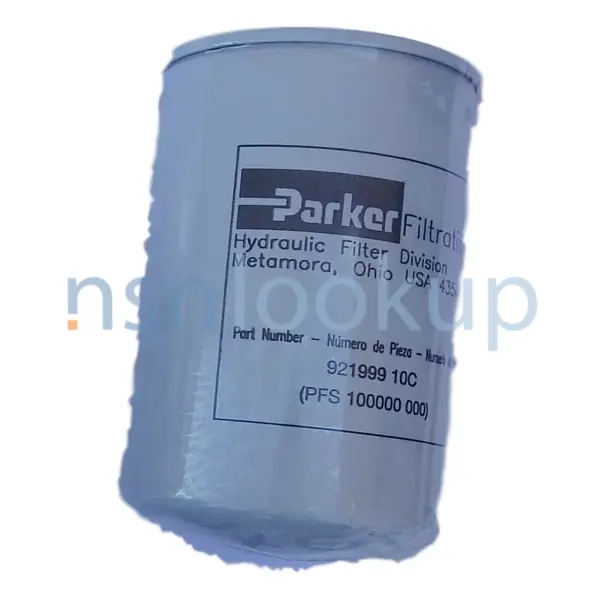

Photo 1/2 NSN 4330-01-186-6076 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 4330-01-186-6076 RQST Updated Every Day 4330-01-186-6076 RQST NE Related
Photo 1/2 NSN 4330-01-186-6076 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 4330-01-186-6076 RQST Updated Every Day 4330-01-186-6076 RQST NE Related
a day Upgrade your Account Upgrade 4330-01-210- https//www.nsnlookup.com /fsg-43/fsc-4330/us 4330-01-186-6076
Fluid Filter 4330011866076 011866076,01081500 Updated Every Day 4330-01-186-6076 RQST NE Related
Navy (DN)NZDiscontinued-Use 4330-01-186-6076Defense Logistics Agency (DS)IZDiscontinued-Use 4330-01-186-6076
Fluid Filter 4330011866076 011866076,01081500 Updated Every Day 4330-01-186-6076 RQST NE Related
Navy (DN)NZDiscontinued-Use 4330-01-186-6076Defense Logistics Agency (DS)IZDiscontinued-Use 4330-01-186-6076
Restrictions 4330-01-186-6076
4330-01-186-6076 is a Fluid Filter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4330-01-186-6076
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4330-01-186-6076
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FGGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FGAX
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Supplementary Collaborators:
- GTHD
Approved Sources 4330-01-186-6076
- Part Number
- Manufacturer
- Status
- 12AT10CN15BBN
- Manufacturer
- 05779 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
- BML61316
- 06085 - Bae Systems Land & Armaments L.P. (Active)
- Primary Buy
- Primary Buy
- BML61316
- 076M6 - Bae Systems Land & Armaments L.P. (Active)
- Secondary Buy
- Secondary Buy
- 12330119
- 19207 - U S Army Tank Automotive Command (Active)
- Secondary Buy
- Secondary Buy
- 12AT10CN15BBN
- 45681 - Parker-Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 01081500
- 54217 - Terex Aerials Inc (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 4330-01-186-6076
- Characteristic
- Specifications
- FIIG
- Specifications
- A24000
- Body Height [ADAU]
- 7.440 Inches Nominal
- Body Outside Diameter [ADAR]
- 3.740 Inches Nominal
- Design Type [APGF]
- Reusable
- Filtering Element Quantity [CCZM]
- 1
- Filtering System For Which Designed [CXZX]
- By-Pass Flow
- Filtration Rating In Microns [ADNH]
- 10.0 Nominal
- First Discharge Connection Relationship To Intake Connection [CSJR]
- Identical To First Intake Connection
- First Intake Connection Type [CRXZ]
- Threaded Internal Pipe Line
- First Intake Nominal Thread Size [CTGK]
- 0.750 Inches
- First Intake Thread Direction [CXPF]
- Right-Hand
- First Intake Thread Series Designator [CTDY]
- Npt
- Material [MATT]
- Cellulose Filtering Medium
- Material [MATT]
- Rubber Buna N Seal
- Maximum Operating Pressure [CQGM]
- 150.0 Pounds Per Square Inch
- Media For Which Designed [MEDA]
- Fuel/Oil, Hydrocarbon
- Mounting Type [AAXX]
- Inlet Connection Line And Outlet Connection Line
- Style Designator [STYL]
- High Pressure Threaded Body
- Temp Rating [AZKQ]
- -65.0 Deg Fahrenheit Minimum And 125.0 Deg Fahrenheit Maximum
Weapon Systems (WSDC) 4330-01-186-6076
DLA Procurement Analysis 4330-01-186-6076
- Last Stock Position:
- 56 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4330-01-186-6076
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4330-01-186-6076
4330-99-852-0735 2910-12-367-3651 4330-25-150-9110 2940-98-204-5651 4330-12-377-4992 6515-12-381-7567 4330-12-381-0125 2910-13-119-5435 4330-99-709-1442 4330-99-612-6237 4330-12-360-4953 2910-22-619-5095 4330-17-115-4952 2910-12-368-6759 4310-98-855-0816 4130-12-366-6736 4330-12-343-9896 1650-99-841-9689
Freight Information 4330-01-186-6076
4330-01-186-6076 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 069095. A Sub NMFC of Z. It has a NMFC Description of FILTERS LIQUID/GAS NOI. 4330-01-186-6076 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 38260 which rates the freight between FCL and LCL. 4330-01-186-6076 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4330-01-186-6076 is not classified as a special type of cargo when transported by water. 4330-01-186-6076 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4330-01-186-6076
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 5.0" H x 5.0" W x 9.0" L
- --
- --
- --
- Any Suitable Process
- 5.0" H x 5.0" W x 9.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Vendor's Setup or Folding Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 4330-01-186-6076 1 Records
Contracting Technical Data File (CTDF) 4330-01-186-6076 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
