4330-01-075-2013

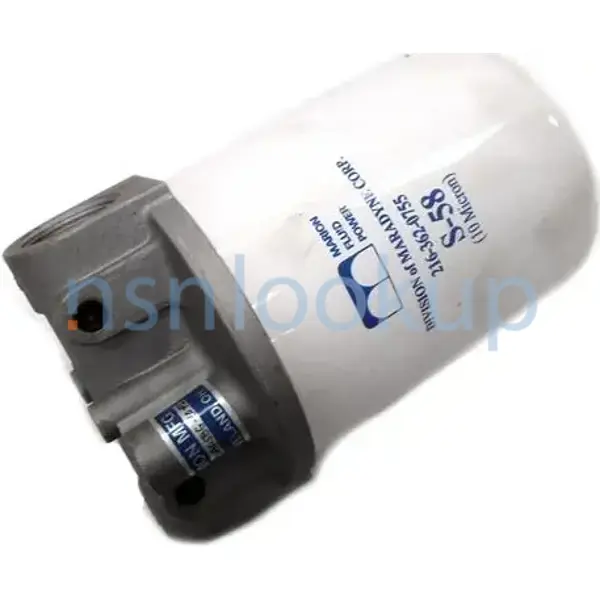

Fluid Filter
4330010752013 010752013 SAF58G20 P0-104 8811301 SAF59G20
A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER. View more Fluid Filter
November 2023
8
Marketplace 4330-01-075-2013
Request a Quotation from participating marketplace vendors
Related Documents 4330-01-075-2013 5+ Documents (More...)
Restrictions 4330-01-075-2013
4330-01-075-2013 is a Fluid Filter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4330-01-075-2013
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4330-01-075-2013
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FGGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FGAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Portugal (ZP01)
- Effective Date:
- 1 Oct 1998
Approved Sources 4330-01-075-2013
- Part Number
- Manufacturer
- Status
- SAF58G20
- Manufacturer
- 07988 - Automotive Inc (Obsolete)
- Original Design
- Original Design
- P0-104
- 71054 - Boardman Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 8811301
- 07988 - Automotive Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- SAF59G20
- 07988 - Automotive Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4330-01-075-2013
- Characteristic
- Specifications
- FIIG
- Specifications
- A24000
- Body Length [ADAQ]
- 9.420 Inches Nominal
- Body Outside Diameter [ADAR]
- 5.030 Inches Nominal
- Design Type [APGF]
- Nonreusable
- Filtering Element Quantity [CCZM]
- 1
- Filtration Rating In Microns [ADNH]
- 10.0 Nominal
- Maximum Operating Pressure [CQGM]
- 200.0 Pounds Per Square Inch
- First Intake Connection Type [CRXZ]
- Threaded Internal Pipe Head Side
- First Intake Thread Series Designator [CTDY]
- Npt
- First Intake Nominal Thread Size [CTGK]
- 1.250 Inches
- First Intake Thread Direction [CXPF]
- Right-Hand
- First Discharge Connection Relationship To Intake Connection [CSJR]
- Identical To First Intake Connection
- Features Provided [CBBL]
- By-Pass Valve
- Special Features [FEAT]
- Grumman; F10 Aircraft
Weapon Systems (WSDC) 4330-01-075-2013
DLA Procurement Analysis 4330-01-075-2013
- Last Stock Position:
- 103 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4330-01-075-2013
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4330-01-075-2013
Freight Information 4330-01-075-2013
4330-01-075-2013 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 069100. A Sub NMFC of Z. It has a NMFC Description of FILTERS:CARTRIDGES/ELEMENTS. 4330-01-075-2013 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 21275 which rates the freight between FCL and LCL. 4330-01-075-2013 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 4330-01-075-2013 is not classified as a special type of cargo when transported by water. 4330-01-075-2013 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4330-01-075-2013
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 4330-01-075-2013 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
