4330-00-921-5375
Fluid Filter Head
4330009215375 009215375 5134304 871-5134304 33230 5134894 5133262 PC5134304 433009215375 11669184
A component of a fluid filter designed to contain the inlet and/or outlet ports of the filter. It acts as a cover and attaches to the fluid filter body or mounts directly to an integral cavity in an engine, manifold, casing, or the like. The item may include relief, check, by-pass valves, and/or fluid filter element(s). It may have means for supporting the filter element(s), and means for mounting the filter. Excludes HEAD, SEDIMENT STRAINER and COVER, FLUID FILTER. View more Fluid Filter Head
July 2025
46
Product Information 4330-00-921-5375

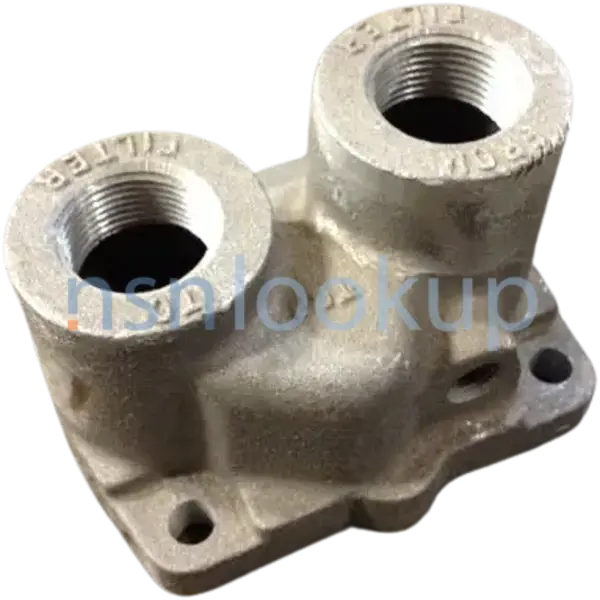

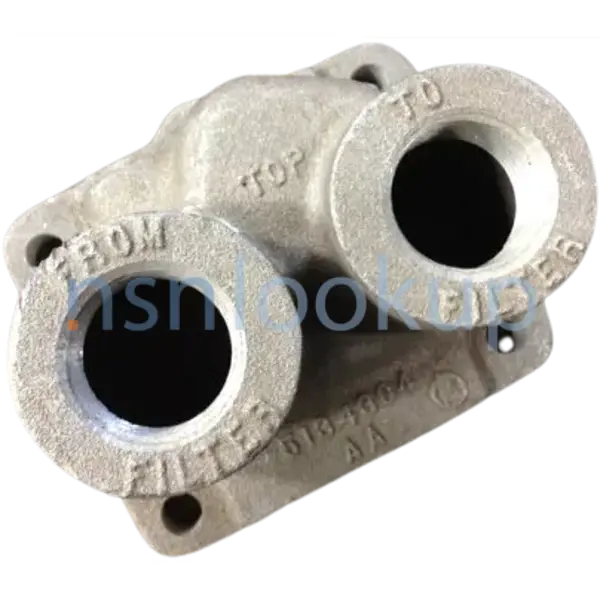

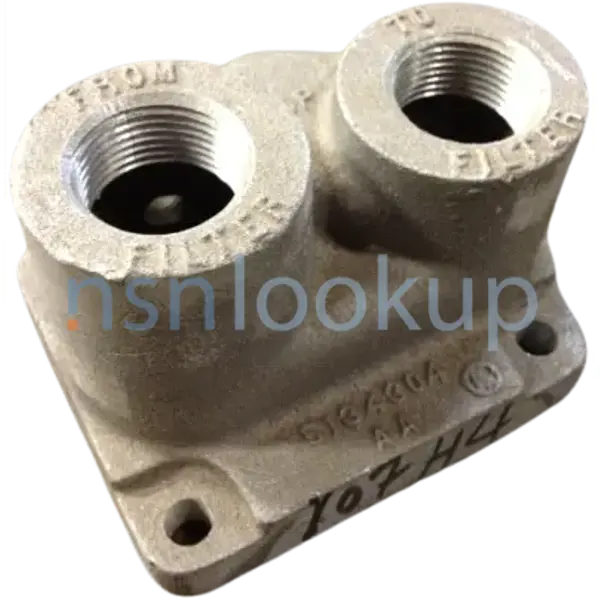

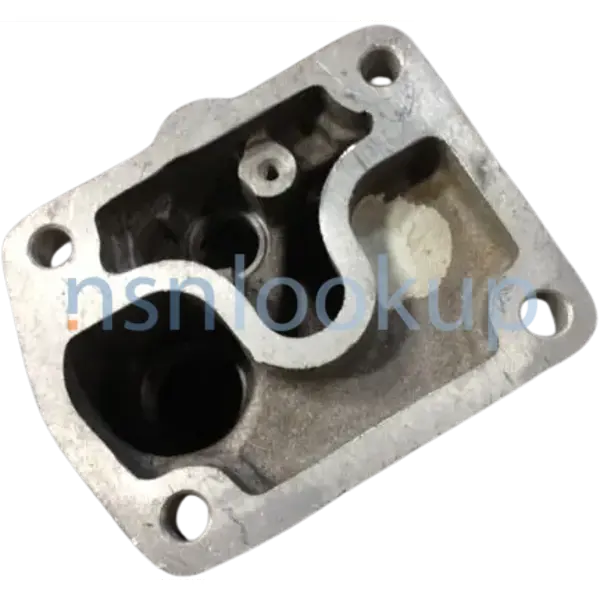

Remote Oil FIlter Adaptor
Used on Detroit Diesel 6V53 Engines.
Applicable Engine Models:
- 5063-5299
This adaptor provides a Female NPT (National Pipe Thread) threaded connection for a hose going from the engine to the inlet of the remote oil filter and a Female NPT for connection of a hose from the outlet of the remote oil filter returning oil to the engine. Provision is made for a simple sprung-loaded non-metallic disc filter bypass valve which operates when the differential pressure across the oil filter is elevated (when the oil filter is clogged or a hose is restricted). This emergency bypass valve prevents a remote oil filter failure from starving the engine of lubricating oil. The valve components are sold separately and must be fitted for correct operation.
Common Failure - Hose Thread Splitting/Cracking
The most common failure of this part is over-tightening of the hose connection threads into this adaptor. The adaptor is made of cast aluminum and the boss containing each female thread is very much weaker than the forces generated by tightening the tapered pipe thread for the hose connections. This causes the boss to fracture leaving a crack across the thread which can be easily un-noticeable to a mechanic. When the engine is started, oil immediately streams out of the crack in a high volume high pressure oil leak. The design and material of this adaptor do not allow a sufficient repair to be made and so this part must be replaced if cracked.
NSN Lookup CAGE 99V35 has developed an upgraded remote oil filter adaptor for 6V53 engines. The upgraded part is CNC machined from steel billet and is a direct fit replacement. The precision threads in the hardened alloy steel for the hose connections have a higher strength than the hose fittings and so fracturing of the adaptor has been eliminated. This upgrade typically saves an end user $1000s in repairs over the life of the vehicle. The upgraded adaptor is part number NLK-5134304 from CAGE 99V35.
Upgraded Adaptor
Click here to purchase NLK-5134304
Marketplace 4330-00-921-5375
Request a Quotation from participating marketplace vendors
Related Documents 4330-00-921-5375 5+ Documents (More...)
Upgraded Adaptor Click here to purchase NLK-5134304 Marketplace 4330-00-921-5375 Need Help?
HEAD,FLUID FILTER 1 EA NS Request Quotation Subscribe to View Vendor Details... 871-5134304 HEAD,FLUID
Fluid Filter Head 4330009215375 009215375 to View Vendor Details... 871-5134304 HEAD,FLUID https
JavaScript in your web browser . 4710-99-549-9223Metal Tube Assembly4710995499223 995499223AMP 00 04 33230
Fluid Filter Head 4330009215375 009215375 NE Updated -4YJC0071/32-33230-432-33230-4YJC0071 https
www.nsnlookup.com /fsg-67/fsc-6720/de 6720-12-315-7654 Still Picture Camera Body 6720123157654 4330-00-921-5375
Restrictions 4330-00-921-5375
4330-00-921-5375 is a Fluid Filter Head that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4330-00-921-5375
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4330-00-921-5375
- US Army (A920)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FGGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FGAX
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEHD
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Jan 2011
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 4330-00-921-5375
- Part Number
- Manufacturer
- Status
- 5134304
- Manufacturer
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Primary Buy
- Primary Buy
- 871-5134304
- 55683 - Wheeler Fleet Solutions, Co. (Active)
- Primary Buy
- Primary Buy
- 33230
- 13841 - Tiffin Parts, L.L.C. (Active)
- Secondary Buy
- Secondary Buy
- 5134894
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5133262
- 24617 - General Motors Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5133262
- 72582 - Rolls-Royce Solutions America Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- PC5134304
- C7432 - Power Components (Deutschland) Gmbh (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 433009215375
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 4330009215375
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 11669184
- 19207 - U S Army Tank Automotive Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4330-00-921-5375
- Characteristic
- Specifications
- FIIG
- Specifications
- T384-E
- Bolt Circle Diameter [ABKG]
- 4.750 Inches Nominal
- Filter Element [CDYD]
- Not Included
- Hole Diameter [AAUB]
- 0.405 Inches Nominal
- Material [MATT]
- Aluminum Alloy
- Mounting Bolt Hole [CDYC]
- Provided
- Outlet Nominal Thread Size [CSJD]
- 1.000 Inches
- Outlet Port Type [CDXQ]
- Threaded Female, Plain
- Outlet Thread Direction [ARTY]
- Right-Hand
- Outlet Thread Series Designator [ARTX]
- Npt
- Inlet Nominal Thread Size [CRHS]
- 1.000 Inches
- Inlet Port Type [CDXM]
- Threaded Female, Plain
- Inlet Thread Direction [ACRX]
- Right-Hand
- Inlet Thread Series Designator [ARNX]
- Npt
- Quantity [NMBR]
- 4
- Overall Height [ABKW]
- 3.345 Inches Nominal
- Overall Length [ABHP]
- 4.465 Inches Nominal
- Overall Width [ABMK]
- 4.062 Inches Nominal
- Valve [CDXY]
- Not Included
Weapon Systems (WSDC) 4330-00-921-5375
DLA Procurement Analysis 4330-00-921-5375
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4330-00-921-5375
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- X
- Formerly 2815
- X
- Department of the Air Force (DF)
- F
- X
- Formerly 2815
- X
- Department of the Navy (DN)
- N
- X
- Formerly 2815
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 2815
- X
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4330-00-921-5375
Freight Information 4330-00-921-5375
4330-00-921-5375 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133320. A Sub NMFC of X. It has a NMFC Description of MACHINERY PARTS OIL/FUEL FILTER. 4330-00-921-5375 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64100 which rates the freight between FCL and LCL. 4330-00-921-5375 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 4330-00-921-5375 is not classified as a special type of cargo when transported by water. 4330-00-921-5375 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4330-00-921-5375
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 6.0" H x 6.0" W x 5.0" L
- --
- --
- --
- Any Suitable Process
- 6.0" H x 6.0" W x 5.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Vendor's Protective Grease or Oil Coating
- --
- --
- --
- ASTM - D5118, Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 4330-00-921-5375 4 Records
Contracting Technical Data File (CTDF) 4330-00-921-5375 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
