4330-00-778-1907
Fluid Filter Cover
4330007781907 007781907 110204 329MES1 36A10022
A rigid item of various shapes designed as a component of a fluid filter, acting as the cover and retaining the filter element in place. The item does not have an inlet or outlet connection. It is fastened onto the FILTER BODY, FLUID by means of clamps or bolts. For items with inlet and/or outlet connections, see HEAD, FLUID FILTER. View more Fluid Filter Cover
May 2023
7
Marketplace 4330-00-778-1907
Request a Quotation from participating marketplace vendors
Related Documents 4330-00-778-1907 5+ Documents (More...)
(Identification) 1/3 NSN 4330-00-778-1907 (Identification) 2/3 NSN 4330-00-778-1907 (Identification
BUY NE FedMall Updated Every Day 4330-00-778-1907 RQST NE Updated Every Day 4330-00-778-1907 RQST
www.nsnlookup.com /fsg-47/fsc-4720/uk 4720-99-318-1216 Nonmetallic Tubing 4720993181216993181216 55-110204
-1 10-110204-1TS-3556 Managed https//www.nsnlookup.com /fsg-47/fsc-4720/uk 4720-99-318-1216 Nonmetallic
-1 10-110204-1TS-3556 Managed https//www.nsnlookup.com /fsg-67/fsc-6740/us 6740-00-245-5905 Shaft Separator
for $1 a day Upgrade your Account Upgrade 6740-00-245-5905Shaft Separator6740002455905 002455905 110204
-1 10-110204-1TS-3556 Managed by United States NSN Created on 17 Jun 1977 Data Last Changed January 2023
Fluid Filter Cover 4330007781907 007781907 fsg-47/fsc-4720/uk 4720-99-318-1216 Nonmetallic https
www.nsnlookup.com /fsg-66/fsc-6625/us 6625-01-677-7737 Frequency Mixer Stage 6625016777737016777737 110204
a day Upgrade your Account Upgrade 6625-01-677 -7737Frequency Mixer Stage6625016777737 016777737 110204
Restrictions 4330-00-778-1907
4330-00-778-1907 is a Fluid Filter Cover that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4330-00-778-1907
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4330-00-778-1907
- US Air Force (FGGC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FGAX
Approved Sources 4330-00-778-1907
- Part Number
- Manufacturer
- Status
- 110204
- Manufacturer
- 73370 - Honeywell International Inc (Active)
- Primary Buy
- Primary Buy
- 329MES1
- 556A6 - Linde Material Handling North (Active)
- Primary Buy
- Primary Buy
- 329MES1
- 05415 - Linde Lift Truck Corp. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 36A10022
- 81240 - White Farm Equipment Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4330-00-778-1907
- Characteristic
- Specifications
- FIIG
- Specifications
- T384-D
- Distance From First Hole Centerline To End Along Length [ADPC]
- 2.301 Inches Nominal
- Attachment Method [ABSX]
- Bolted
- Body Outside Radius [ADPX]
- 0.031 Inches Nominal
- Body Thickness [ADPR]
- 0.036 Inches Nominal

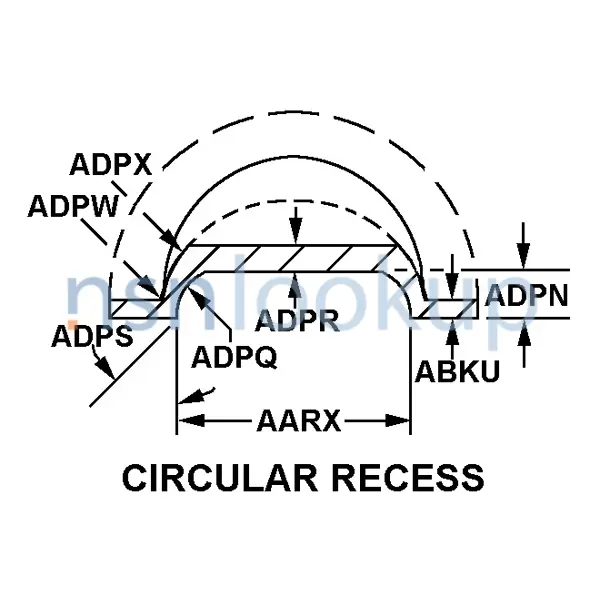

- Cross-Sectional Shape Style [AAGR]
- Circular Recess
- First Recess Inside Height [ADPN]
- 0.250 Inches Nominal
- Flange Thickness [ABKU]
- 0.036 Inches Nominal
- Fluid Filter Element Retainer [CDXL]
- Not Included
- Hole Diameter [AAUB]
- 0.190 Inches Nominal
- Hole Quantity Along Length [ADNV]
- 1
- Material [MATT]
- Steel
- Mounting Hole Type And Quantity [CDXK]
- 1 Plain
- Mounting Opening Shape Style [ADQK]
- Unthreaded Hole
- Outside Corner Radius [ADPW]
- 0.031 Inches Nominal
- Outside Diameter [ABKV]
- 4.602 Inches Nominal
- Inside Angle In Deg [ADPS]
- 25.0
- Inside Corner Radius [ADPQ]
- 0.031 Inches Nominal
- Inside Diameter [AARX]
- 2.750 Inches Nominal
- Peripheral Shape Style [ABMW]
- Circular
DLA Procurement Analysis 4330-00-778-1907
Management Data 4330-00-778-1907
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Dec 2005
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Similar Supply Items to 4330-00-778-1907
Freight Information 4330-00-778-1907
4330-00-778-1907 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133320. A Sub NMFC of X. It has a NMFC Description of MACHINERY PARTS OIL/FUEL FILTER. 4330-00-778-1907 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64100 which rates the freight between FCL and LCL. 4330-00-778-1907 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 4330-00-778-1907 is not classified as a special type of cargo when transported by water. 4330-00-778-1907 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4330-00-778-1907 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
