4320-01-451-7907
Pump Piston
4320014517907 014517907 MK1760-10 PDA-A ITEM 7
INC: 60806 Pump Piston
May 2023
4
Marketplace 4320-01-451-7907
Request a Quotation from participating marketplace vendors
Related Documents 4320-01-451-7907 2+ Documents (More...)
NATO Update Count 4 NATO Data Quality NSN 4320-01-451-7907 (Identification) 1/1 1.
BUY NE FedMall Updated Every Day 4320-01-451-7907 RQST NE Updated Every Day 4320-01-451-7907 RQST
Pump Piston 4320014517907 014517907 NominalFinished Size Designation [AXFR]StandardHead Style [
Restrictions 4320-01-451-7907
4320-01-451-7907 is a Pump Piston that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4320-01-451-7907
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4320-01-451-7907
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4320-01-451-7907
- Part Number
- Manufacturer
- Status
- MK1760-10
- Manufacturer
- 95745 - Star Hydraulics Llc (Active)
- Primary Buy
- Primary Buy
- PDA-A ITEM 7
- 95745 - Star Hydraulics Llc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 4320-01-451-7907
- Characteristic
- Specifications
- FIIG
- Specifications
- T103-G
- Diameter [ABMZ]
- 0.873 Inches Nominal
- Finished Size Designation [AXFR]
- Standard

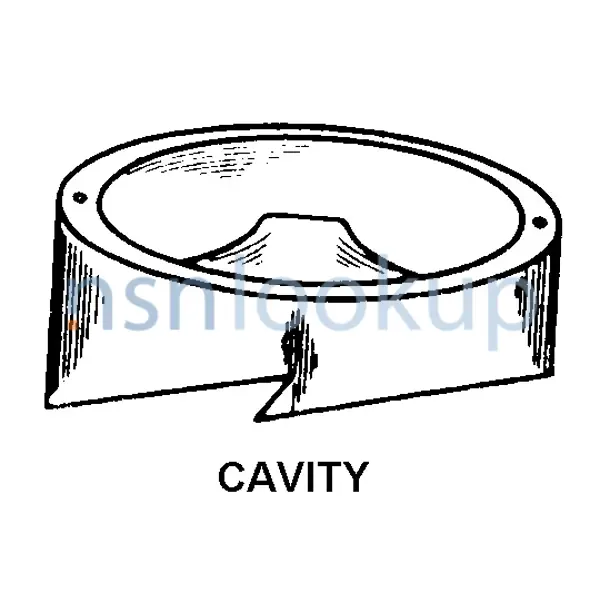

- Head Style [AASK]
- Cavity
- End Item Identification [AGAV]
- 4320-01-451-7592
- Material [MATT]
- Copper Alloy
- Oil Groove [AXPH]
- Not Included
- Integral Connecting Rod [AXPS]
- Not Included
- Pin Hole Bushing [AXPL]
- Not Included
- Pin [AXPP]
- Not Included
- Retaining Ring Groove [AXPN]
- Not Included
- Ring Groove Diameter [AXGD]
- 0.698 Inches Nominal
- Ring Groove Quantity [AXFZ]
- 1
- Ring Groove Width [AXGB]
- 0.245 Inches Nominal
- Ring [AXPR]
- Not Included
- Skirt Type [AXFT]
- Solid
- Skirt Bottom Cutaway Feature [AXFX]
- Not Included
- Overall Height [ABKW]
- 1.000 Inches Nominal
- Special Features [FEAT]
- Piston For Star Hydraulics P/N Pda-1 Hand Pump, Nsn 4320-01-451-7592
- Surface Finish [AGYE]
- Finished
Weapon Systems (WSDC) 4320-01-451-7907
DLA Procurement Analysis 4320-01-451-7907
Management Data 4320-01-451-7907
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4320-01-451-7907
Freight Information 4320-01-451-7907
4320-01-451-7907 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 019225. A Sub NMFC of X. It has a NMFC Description of AUTO PISTONS DISC BRAKE CALIPER. 4320-01-451-7907 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 08910 which rates the freight between FCL and LCL. 4320-01-451-7907 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4320-01-451-7907 is not classified as a special type of cargo when transported by water. 4320-01-451-7907 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4320-01-451-7907
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Vendor's Fiberboard Box
Contracting Technical Data File (CTDF) 4320-01-451-7907 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
