4320-01-381-3884
Wearing Ring
4320013813884 013813884 12132F18-7 12190D18A 12190D18 ITEM 7 1550D7A 12249D18 12190D18 12132F18
A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves. View more Wearing Ring
May 2023
2
Marketplace 4320-01-381-3884
Request a Quotation from participating marketplace vendors
Related Documents 4320-01-381-3884 5+ Documents (More...)
BUY NE FedMall Updated Every Day 4320-01-381-3884 RQST NE Updated Every Day 4320-01-381-3884 RQST
- Curtiss-Wright Electro-Mechanical (Replaced) Canceled/Obsolete RNCC 5 RNVC 9 MEDALS DAC E 12132F18
day Upgrade your Account Upgrade 5120-01-383-6830Spanner Wrench5120013836830 013836830 12283C18 12132F18
Wearing Ring 4320013813884 013813884 -7 12190D18A 12249D18 12190D18 ITEM 7 1550D7A 12190D18 12132F18
$1 a day Upgrade your Account Upgrade 5120-01-383- 7979Ring Puller5120013837979 01383797912285C18 12132F18
$1 a day Upgrade your Account Upgrade 5120-01-383- 7979Ring Puller5120013837979 01383797912285C18 12132F18
4320-01-380-3266 Centrifugal Pump Balance Set 4320013803266 Puller5120013837979 01383797912285C18 12132F18
Sediment Strainer Body 4730013835109 Secondary Buy RNCC 5 RNVC 2 DAC 4 12132F18-136B Puller5120013837979
/fsg-51/fsc-5120/us
Wearing Ring 4320013813884 013813884 Upgrade your Account Upgrade 4320-01-384-3195Centrifugal Pump4320013843195
013843195 12132F18Q3 12132F18 -136A 0UBG9 - Curtiss-Wright Electro-Mechanical (Active) Secondary Buy
Restrictions 4320-01-381-3884
4320-01-381-3884 is a Wearing Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4320-01-381-3884
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4320-01-381-3884
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HDHX
Approved Sources 4320-01-381-3884
- Part Number
- Manufacturer
- Status
- 12190D18A
- Manufacturer
- 88032 - Curtiss-Wright Electro-Mechanical (Replaced)
- Original Design
- Original Design
- 12132F18-7
- 88032 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 12190D18 ITEM 7
- 88032 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 1550D7A
- 88032 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 12249D18
- 88032 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 12132F18-7
- 0UBG9 - Curtiss-Wright Electro-Mechanical (Active)
- Advisory Reference
- Advisory Reference
- 12190D18A
- 0UBG9 - Curtiss-Wright Electro-Mechanical (Active)
- Advisory Reference
- Advisory Reference
- 12190D18
- 88032 - Curtiss-Wright Electro-Mechanical (Replaced)
- Informational Drawing
- Informational Drawing
- 12132F18
- 88032 - Curtiss-Wright Electro-Mechanical (Replaced)
- Informational Drawing
- Informational Drawing
Datasheet 4320-01-381-3884
- Characteristic
- Specifications
- FIIG
- Specifications
- A19900
- Material [MATT]
- Steel
- Material Document And Classification [MDCL]
- Astm B367 Gr. C-2 Assn Std Single Material Response

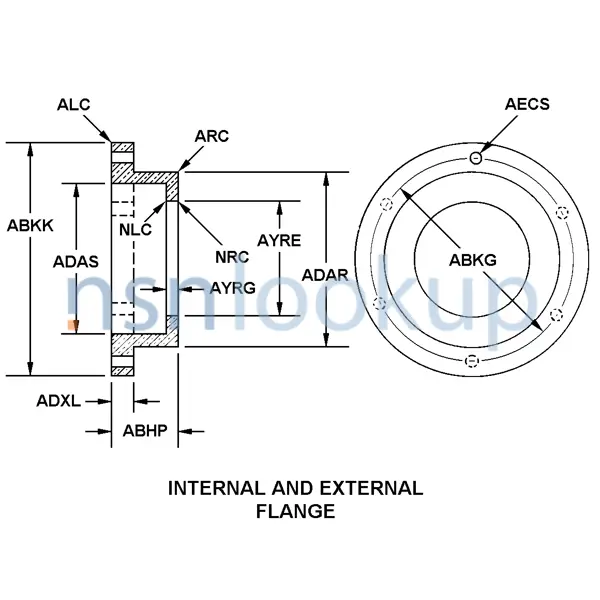

- Body Style [AAQL]
- Internal And External Flange
- Overall Length [ABHP]
- 1.440 Inches Nominal
- Bolt Circle Diameter [ABKG]
- 16.750 Inches Nominal
- Flange Diameter [ABKK]
- 17.500 Inches Nominal
- Body Outside Diameter [ADAR]
- 16.249 Inches Nominal
- Body Inside Diameter [ADAS]
- 15.500 Inches Nominal
- Left Side Flange Thickness [ADXL]
- 0.500 Inches Nominal
- Internal Flange Inside Diameter [AYRE]
- 14.750 Inches Nominal
- Internal Flange Width [AYRG]
- 0.190 Inches Nominal
- Bolt Hole Quantity [AECS]
- 6
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.312 Inches Nominal
- Corner Shape [BZLX]
- Square Inside Left Corner
- Corner Shape [BZLX]
- Square Inside Right Corner
- Corner Shape [BZLX]
- Square Outside Left Corner
- Corner Shape [BZLX]
- Chamfered Outside Right Corner
- Chamfer Angle [CSYT]
- 30.0 Degrees Nominal Outside Right Corner
- Chamfer Length [AAZP]
- 0.060 Inches Nominal Outside Right Corner
- Surface Finish [CSYM]
- 63.0 Microinches Outside
- Special Features [FEAT]
- Mercury Free Titanium; 2 Holes 180.0 Deg Apart Threaded 0.38-16 Unc-3B; 2 Pry Slots 180.0 Deg Apart
