4320-01-335-2255

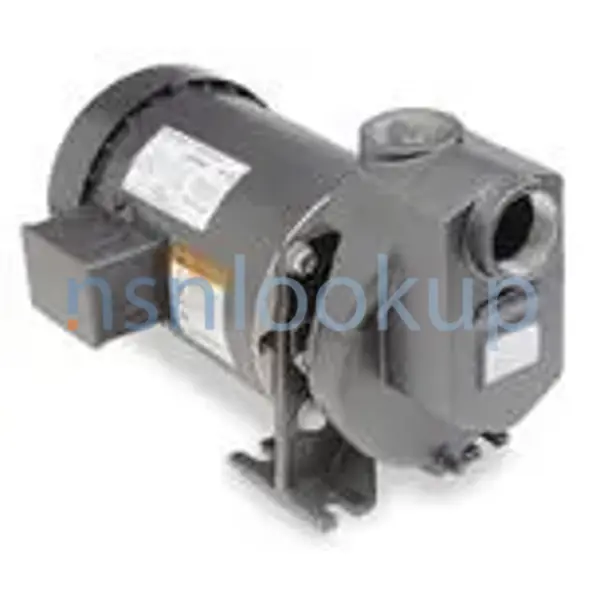

Centrifugal Pump Unit
4320013352255 013352255 4TE29 2P374
An assembled unit consisting of a commonly mounted centrifugal pump(s), prime mover(s), and the necessary components to provide for a complete operation. View more Centrifugal Pump Unit
June 2023
9
Marketplace 4320-01-335-2255
Request a Quotation from participating marketplace vendors
Related Documents 4320-01-335-2255 5+ Documents (More...)
BUY NE FedMall Updated Every Day 4TE29 RQST NE Updated Every Day 2P374 RQST NE Updated Every Day
4320-01-335-2255 RQST NE Updated Every Day 4320-01-335-2255 RQST Updated Every Day 4320-01-335-2255
vendors Request Updated Every Day 5330-00-171-5869 https//www.nsnlookup.com /fsg-43/fsc-4320/us 4320-01-335-2255
Centrifugal Pump Unit 4320013352255 013352255 day Upgrade your Account Upgrade 4320-01-335-2255Centrifugal
Restrictions 4320-01-335-2255
4320-01-335-2255 is a Centrifugal Pump Unit that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4320-01-335-2255
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4320-01-335-2255
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
Approved Sources 4320-01-335-2255
- Part Number
- Manufacturer
- Status
- 4TE29
- Manufacturer
- 25795 - W.W. Grainger, Inc. (Active)
- Primary Buy
- Primary Buy
- 2P374
- 25795 - W.W. Grainger, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4320-01-335-2255
- Characteristic
- Specifications
- FIIG
- Specifications
- A19400
- End Item Identification [AGAV]
- Onboard 210 Ft Wmec Coast Guard Vessels
- Centrifugal Pump Design [AHZE]
- Mixed Flow
- Centrifugal Pump Impeller Quantity [AHZF]
- 1
- Centrifugal Pump Impeller Suction Type [AHZG]
- Single
- Cooling Method [AENK]
- Air To Air Cooled
- Current Rating In Amps [AMPS]
- 20.0 And 10.0
- Current Type [ACDC]
- Ac
- Discharge Pressure [AHYW]
- 75.0 Pounds Per Square Inch Gage
- Discharge Connection Quantity [AAYV]
- 1
- Discharge Connection Thread Size And Series/Type Designator [ASAZ]
- 1.500-11-1/2 Npt
- Discharge Connection Type [AAYW]
- Threaded Internal
- Environmental Protection [ADZC]
- Dripproof
- Features Provided [CBBL]
- Self-Priming
- Frequency In Hertz [FREQ]
- 60.0
- Maximum Discharge Flow Rate [AHYV]
- 108.0 Gallons Per Minute
- Media For Which Designed [ACKL]
- Liquid
- Operating Speed At Rated Capacity [AHYZ]
- 3450.0 Revolutions Per Minute
- Inclosure Type [AKNA]
- Fully Inclosed
- Intake Connection Quantity [AAYT]
- 1
- Intake Connection Thread Size And Series/Type Designator [ASWT]
- 1.500-11-1/2 Npt
- Intake Connection Type [AAYU]
- Threaded Internal
- Prime Mover Quantity [AAXH]
- 1
- Prime Mover Type [AKDJ]
- Electric Motor
- Prime Mover Cooling Medium [AAXS]
- Air
- Prime Mover Power Rating [CSYL]
- 0.750 Horsepower
- Pump Quantity [AENC]
- 1
- Pumping Element Operating Position [AHZA]
- Horizontal
- Phase [FAAZ]
- Single
- Total Head [AHYX]
- 51.000 Feet
- Voltage In Volts [ELEC]
- 115.0 And 230.0
- Stage Quantity [AAYD]
- 1
DLA Procurement Analysis 4320-01-335-2255
Management Data 4320-01-335-2255
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 4320-01-335-2255
Freight Information 4320-01-335-2255
4320-01-335-2255 has freight characteristics managed by the US Postal Service (USPS).It has a National Motor Freight Classification (NMFC) of 128000. A Sub NMFC of X. It has a NMFC Description of PUMPS PWR NOI/WORKING HEADS/PARTS. 4320-01-335-2255 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64870 which rates the freight between FCL and LCL. 4320-01-335-2255 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4320-01-335-2255 is not classified as a special type of cargo when transported by water. 4320-01-335-2255 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4320-01-335-2255
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Vendor's Protective Grease or Oil Coating
- --
- Cushion, Anchor, Block or Brace as Required
- --
- ASTM - D5118, Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 4320-01-335-2255 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
