4320-01-200-9090

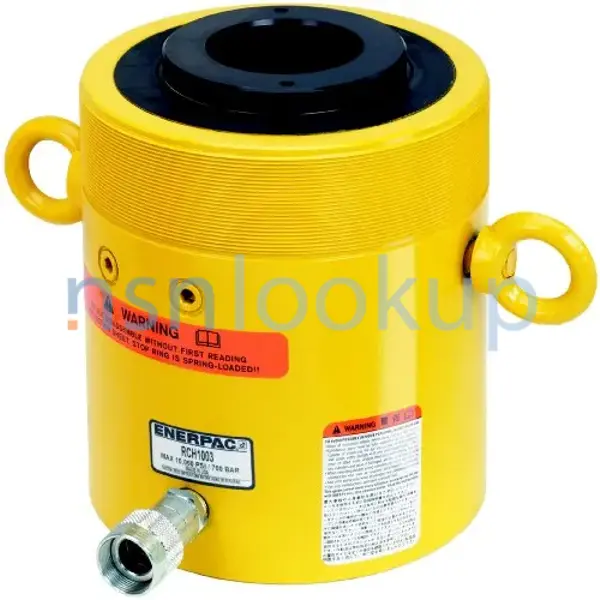

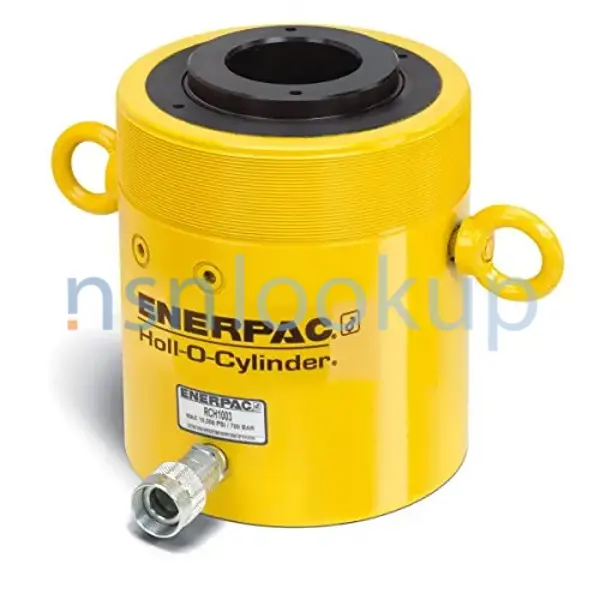

Hydraulic Ram
4320012009090 012009090 RCH-1003
A metal cylindrical device, used in conjunction with a hydraulic pump. Primarily designed for jacking, pressing and the like. View more Hydraulic Ram
August 2023
6
Marketplace 4320-01-200-9090
Request a Quotation from participating marketplace vendors
Related Documents 4320-01-200-9090 1+ Documents (More...)
RQST NE Updated Every Day 4320-01-200-9090 RQST Updated Every Day 4320-01-200-9090 RQST NE Related Documents
4320-01-200-9090 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-43/fsc-4320/us 4320-01-200-9090
Restrictions 4320-01-200-9090
4320-01-200-9090 is a Hydraulic Ram that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4320-01-200-9090
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4320-01-200-9090
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHXHD
Approved Sources 4320-01-200-9090
- Part Number
- Manufacturer
- Status
- RCH-1003
- Manufacturer
- 26952 - Enerpac Tool Group Corp (Active)
- Primary Buy
- Primary Buy
Datasheet 4320-01-200-9090
- Characteristic
- Specifications
- FIIG
- Specifications
- T103-J
- Capacity [AXQD]
- 100.0 Tons
- Retracted Height [ALPK]
- 10.000 Inches Nominal
- Extended Height [AJLT]
- 13.000 Inches Nominal
- Overall Diameter [ADAV]
- 8.375 Inches Nominal
- Plunger Diameter [AXQF]
- 5.000 Inches Nominal
- Carrying Handle [AXQG]
- Included
Weapon Systems (WSDC) 4320-01-200-9090
DLA Procurement Analysis 4320-01-200-9090
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4320-01-200-9090
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4320-01-200-9090
Freight Information 4320-01-200-9090
4320-01-200-9090 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 128000. A Sub NMFC of X. It has a NMFC Description of PUMPS PWR NOI/WORKING HEADS/PARTS. 4320-01-200-9090 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64870 which rates the freight between FCL and LCL. 4320-01-200-9090 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4320-01-200-9090 is not classified as a special type of cargo when transported by water. 4320-01-200-9090 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4320-01-200-9090
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-46170, Hydraulic Fluid, Synthetic, Rust Inhibited, Fire Resistant
- --
- Cushion, Anchor, Block or Brace as Required
- --
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 4320-01-200-9090 4 Records
Contracting Technical Data File (CTDF) 4320-01-200-9090 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
