4320-01-195-3869
Wearing Ring
4320011953869 011953869 CA9043-9 CA9043 PL1.5VCM-1 ITEM 9
A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves. View more Wearing Ring
May 2023
2
Marketplace 4320-01-195-3869
Request a Quotation from participating marketplace vendors
Related Documents 4320-01-195-3869 5+ Documents (More...)
CA9043-9 RING,WEARING 3 EA NS Request Quotation FedMall Updated Every 15 Minutes 4320-01-195-3869 BUY
-1 ITEM 9 A cylindrical item with or without flange(s), designed to be inserted CA9043-9 RING,WEARING
CA9043-9-1 RING,WEARING 4 EA NS Request Quotation Subscribe to View Vendor Details...
Wearing Ring 4320011953869 011953869 -9 RING,WEARING 3 EA NS Request Quotation FedMall Updated
CA9043-9 RING,WEARING 1 EA NS Request Quotation FedMall Updated Every 15 Minutes 4320-01-189-4613 BUY
Wearing Ring 4320011953869 011953869 4320-01-195-3869 5+ Documents ( More... ) https/ https//www.nsnlookup.com
Wearing Ring 4320011953869 011953869 Quotation FedMall Updated Every 15 Minutes 4320-01 https//
CA9043-18 DEFLECTOR DIRT AND LIQUID 6 EA NS Request Quotation CA9043-18 DEFLECTOR, DIRT AND LIQUID 6
CA9043-18 DEFLECTOR,DIRT AND LIQUID 6 EA NS Request Quotation FedMall Updated Every 15 Minutes 4320-01
Restrictions 4320-01-195-3869
4320-01-195-3869 is a Wearing Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4320-01-195-3869
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4320-01-195-3869
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
Approved Sources 4320-01-195-3869
- Part Number
- Manufacturer
- Status
- CA9043-9
- Manufacturer
- 83130 - Air & Liquid Systems Corporation (Active)
- Primary Buy
- Primary Buy
- CA9043
- 83130 - Air & Liquid Systems Corporation (Active)
- Informational Drawing
- Informational Drawing
- PL1.5VCM-1 ITEM 9
- 83130 - Air & Liquid Systems Corporation (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4320-01-195-3869
- Characteristic
- Specifications
- FIIG
- Specifications
- A19900
- Body Inside Diameter [ADAS]
- 2.639 Inches Minimum And 2.641 Inches Maximum
- Body Outside Diameter [ADAR]
- 3.998 Inches Minimum And 3.999 Inches Maximum

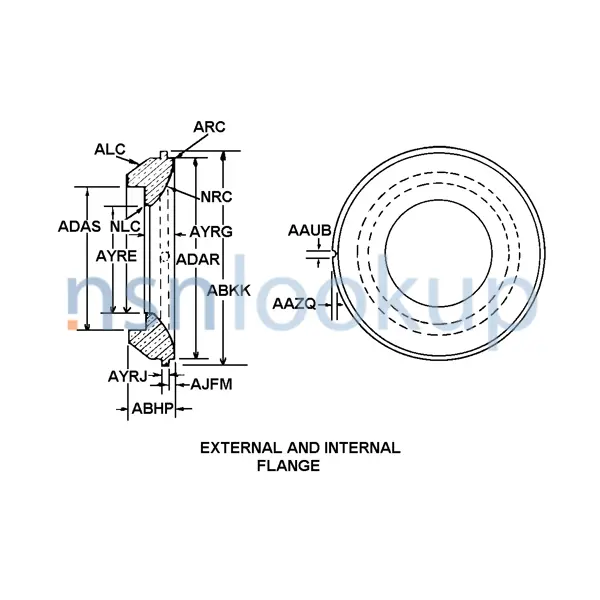

- Body Style [AAQL]
- External And Internal Flange
- Center Flange Thickness [AYRJ]
- 0.185 Inches Minimum And 0.187 Inches Maximum
- Corner Radius [ADNU]
- 0.250 Inches Nominal Inside Right Corner
- Corner Shape [BZLX]
- Round Inside Right Corner
- Corner Shape [BZLX]
- Square Inside Left Corner
- Corner Shape [BZLX]
- Square Outside Left Corner
- Corner Shape [BZLX]
- Square Outside Right Corner
- End To Flange Distance [AJFM]
- 0.281 Inches Nominal
- Flange Diameter [ABKK]
- 4.214 Inches Minimum And 4.219 Inches Maximum
- Hole Depth [AAZQ]
- 0.188 Inches Nominal
- Hole Diameter [AAUB]
- 0.125 Inches Nominal
- Material Document And Classification [MDCL]
- Ml-M-16576 Mil Spec Single Material Response
- Material [MATT]
- Copper Alloy 903
- Internal Flange Inside Diameter [AYRE]
- 2.250 Inches Nominal
- Internal Flange Width [AYRG]
- 0.250 Inches Nominal
- Overall Length [ABHP]
- 0.812 Inches Nominal
- Surface Finish [CSYM]
- 125.0 Microinches All Surfaces
DLA Procurement Analysis 4320-01-195-3869
Management Data 4320-01-195-3869
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4320-01-195-3869
Freight Information 4320-01-195-3869
4320-01-195-3869 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 128000. A Sub NMFC of X. It has a NMFC Description of PUMPS PWR NOI/WORKING HEADS/PARTS. 4320-01-195-3869 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64870 which rates the freight between FCL and LCL. 4320-01-195-3869 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4320-01-195-3869 is not classified as a special type of cargo when transported by water. 4320-01-195-3869 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
