4320-01-026-2962
Wearing Ring
4320010262962 010262962 AYC-488BUS GCP-661PC64 GCP-662
A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves. View more Wearing Ring
May 2023
9
Marketplace 4320-01-026-2962
Request a Quotation from participating marketplace vendors
Related Documents 4320-01-026-2962 5+ Documents (More...)
GCP-661PC64 RING,WEARING 2 EA NS Request Quotation Subscribe to View Vendor Details... 4320-01-026-2962
4320-01-026-2962 RQST Updated Every Day 4320-01-026-2962 RQST NE Related Documents 4320-01-026-2962 5
... ) https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-366-5380 Gasket 5330013665380013665380 GCP-662
Wearing Ring 4320010262962 010262962 01-366-5379Gasket5330013665379 013665379 GCP-662 https//www.nsnlookup.com
... ) https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-366-5379 Gasket 5330013665379013665379 GCP-662
Wearing Ring 4320010262962 010262962 Liquid Fuel Water Separator 4330011872591 GCP-662 https//www.nsnlookup.com
us 4320-01-026-2962 Wearing Ring 4320010262962 010262962 01-366-5379Gasket5330013665379 013665379
GCP-662 https//www.nsnlookup.com /fsg-53/fsc-5330/us 5330-01-366-5379 Gasket 5330013665379 013665379
Wearing Ring 4320010262962 010262962 - Upgrade for $1 a day Upgrade your Account Upgrade 5330-01
-62 ABS-0500-003 M19565 ASP-0500-003 GCP-662 A self-contained unit designed to remove water from
Restrictions 4320-01-026-2962
4320-01-026-2962 is a Wearing Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4320-01-026-2962
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4320-01-026-2962
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Poland (WP01)
- Effective Date:
- 1 Sep 2003
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 4320-01-026-2962
- Part Number
- Manufacturer
- Status
- AYC-488BUS
- Manufacturer
- 16062 - M.T. Davidson Company (Active)
- Primary Buy
- Primary Buy
- GCP-661PC64
- 16062 - M.T. Davidson Company (Active)
- Secondary Buy
- Secondary Buy
- GCP-662
- 16062 - M.T. Davidson Company (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4320-01-026-2962
- Characteristic
- Specifications
- FIIG
- Specifications
- A19900
- Body Inside Diameter [ADAS]
- 4.937 Inches Nominal
- Body Outside Diameter [ADAR]
- 5.998 Inches Minimum And 5.999 Inches Maximum

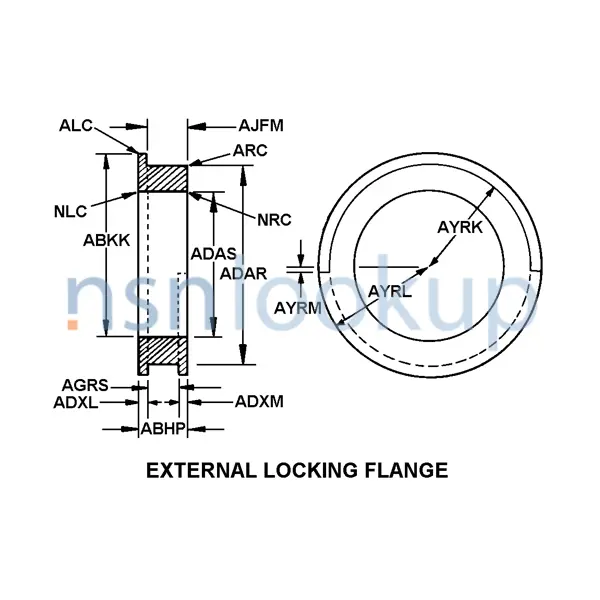

- Body Style [AAQL]
- External Locking Flange
- Corner Shape [BZLX]
- Square All Corners
- Distance Below Centerline [AYRM]
- 0.062 Inches Nominal
- Distance Between Flanges [AGRS]
- 0.125 Inches Nominal
- End To Flange Distance [AJFM]
- 0.437 Inches Nominal
- Flange Diameter [ABKK]
- 6.375 Inches Nominal
- Material [MATT]
- Nickel Alloy
- Largest External Anchor Flange Radius [AYRL]
- 2.999 Inches Nominal
- Left Side Flange Thickness [ADXL]
- 0.187 Inches Nominal
- Right Side Flange Thickness [ADXM]
- 0.187 Inches Nominal
- Smallest External Anchor Flange Radius [AYRK]
- 2.500 Inches Nominal
- Overall Length [ABHP]
- 0.812 Inches Nominal
- Special Features [FEAT]
- Undersize
Weapon Systems (WSDC) 4320-01-026-2962
DLA Procurement Analysis 4320-01-026-2962
Management Data 4320-01-026-2962
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4320-01-026-2962
Freight Information 4320-01-026-2962
4320-01-026-2962 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 128000. A Sub NMFC of X. It has a NMFC Description of PUMPS PWR NOI/WORKING HEADS/PARTS. 4320-01-026-2962 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64870 which rates the freight between FCL and LCL. 4320-01-026-2962 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4320-01-026-2962 is not classified as a special type of cargo when transported by water. 4320-01-026-2962 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4320-01-026-2962
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
