4320-00-987-1458
Pump Shaft Sleeve
4320009871458 009871458 17784P RY-134102
A tubular shaped metallic item designed to provide a replaceable wearing surface for a centrifugal pump shaft. See also BEARING, SLEEVE; BUSHING, SLEEVE; and SPACER, SLEEVE. View more Pump Shaft Sleeve
May 2023
9
Marketplace 4320-00-987-1458
Request a Quotation from participating marketplace vendors
Related Documents 4320-00-987-1458 4+ Documents (More...)
United States (US) 4. 4320-00-987-1458 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 4320-00-987-1458 RQST NE Updated Every Day 4320-00-987-1458 RQST
Pump Shaft Sleeve 4320009871458 009871458 day Upgrade your Account Upgrade 4320-00-987-1458Pump
Shaft Sleeve4320009871458 009871458 17784P RY-134102 www.nsnlookup.com /fsg-43/fsc-4320/us 4320-00-987
Pump Shaft Sleeve 4320009871458 009871458 day Upgrade your Account Upgrade 4320-00-987-1458Pump
Shaft Sleeve4320009871458 009871458 17784P RY-134102 Chiave A Catena Aut 5120151344381151344381 enable
Restrictions 4320-00-987-1458
4320-00-987-1458 is a Pump Shaft Sleeve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4320-00-987-1458
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4320-00-987-1458
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 4320-00-987-1458
- Part Number
- Manufacturer
- Status
- 17784P
- Manufacturer
- 0UBG9 - Curtiss-Wright Electro-Mechanical (Active)
- Primary Buy
- Primary Buy
- 17784P
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Original Design
- Original Design
- RY-134102
- 0UBG9 - Curtiss-Wright Electro-Mechanical (Active)
- Secondary Buy
- Secondary Buy
- RY-134102
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4320-00-987-1458
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Material [MATT]
- Nickel Alloy K-500 Overall
- Material Document And Classification [MDCL]
- Qq-N-286 Fed Spec Single Material Response Overall

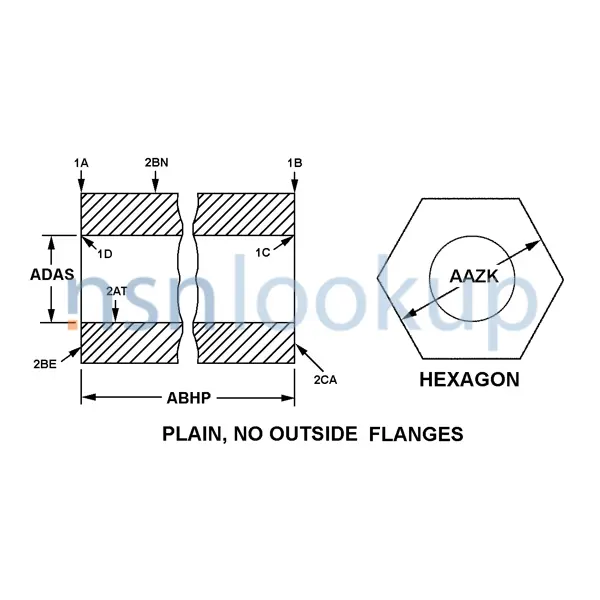

- Style Designator [STYL]
- Hexagon, Plain, No Outside Flanges, Internal Flange At Both Ends
- Overall Length [ABHP]
- 3.1250 Inches Nominal
- Body Outside Diameter [ADAR]
- 2.7500 Inches Nominal
- Body Inside Diameter [ADAS]
- 2.2266 Inches Nominal
- Left Internal Flange Hole Diameter [AGFH]
- 2.2250 Inches Nominal
- Right Internal Flange Hole Diameter [AGFJ]
- 2.2250 Inches Nominal
- Left Internal Flange Width [AGFK]
- 1.2500 Inches Nominal
- Right Internal Flange Width [AGFL]
- 1.2500 Inches Nominal
- Corner Shape [BZLX]
- Square All Corners
- Keyway Dimension [CTNG]
- 0.1250 Inches Nominal Internal Keyway Depth
- Keyway Dimension [CTNG]
- 1.2500 Inches Nominal Internal Keyway Length
- Special Features [FEAT]
- One End Counterfbored,2.476 In. Dia,0.219 In. Deep
DLA Procurement Analysis 4320-00-987-1458
Management Data 4320-00-987-1458
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4320-00-987-1458
Freight Information 4320-00-987-1458
4320-00-987-1458 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 128000. A Sub NMFC of X. It has a NMFC Description of PUMPS PWR NOI/WORKING HEADS/PARTS. 4320-00-987-1458 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64870 which rates the freight between FCL and LCL. 4320-00-987-1458 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4320-00-987-1458 is not classified as a special type of cargo when transported by water. 4320-00-987-1458 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4320-00-987-1458
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 4320-00-987-1458 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
