4320-00-962-2755
Pump Shaft Sleeve
4320009622755 009622755 17660P RY-133803 10083
A tubular shaped metallic item designed to provide a replaceable wearing surface for a centrifugal pump shaft. See also BEARING, SLEEVE; BUSHING, SLEEVE; and SPACER, SLEEVE. View more Pump Shaft Sleeve
May 2023
4
Marketplace 4320-00-962-2755
Request a Quotation from participating marketplace vendors
Related Documents 4320-00-962-2755 5+ Documents (More...)
(Identification) 1/2 NSN 4320-00-962-2755 (Identification) 2/2 - - 1.
United States (US) 4. 4320-00-962-2755 Marketplace Restrictions Approved Sources Datasheet Management
-4729 Plate 4730011214729 011214729,10083 30C3235 BS EN 10083:C40E :C40E https // BS970 https/ BS970
30C3235 product BS970 30C3235 BS EN 10083 BS970 https/ :C40E https https//www.nsnlookup.com /fsg-47/
-041 WD4182-10083-04101 A hollow body used to transport air to various parts of the aircraft for the
Germany (ZG) United Kingdom (ZK) Approved Sources 1660-99-716-5218 Part NumberManufacturerStatusWD4182-10083
:C40E A metallic product of ferrous or nonferrous BS 30C3235 BS EN 10083 BS EN 10083:C40E BS EN BS970
30C3235 BS970 BS 30C3235 BS BS EN 10083:C40E BS BS EN 10083:C40E BS EN BS970 https 30C3235 BS970 BS970PT1
:C40E BS EN BS970 BS EN 10083 BS EN 10083: https//www.nsnlookup.com /fsg-95/fsc-9510/uk 9510-99-961-
:C40E BS EN BS970 EN 10083 BS EN 10083:C40E https//www.nsnlookup.com /fsg-95/fsc-9510/uk 9510-99-961-
Restrictions 4320-00-962-2755
4320-00-962-2755 is a Pump Shaft Sleeve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4320-00-962-2755
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4320-00-962-2755
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
Approved Sources 4320-00-962-2755
- Part Number
- Manufacturer
- Status
- 17660P
- Manufacturer
- 0UBG9 - Curtiss-Wright Electro-Mechanical (Active)
- Primary Buy
- Primary Buy
- 17660P
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Original Design
- Original Design
- RY-133803
- 0UBG9 - Curtiss-Wright Electro-Mechanical (Active)
- Secondary Buy
- Secondary Buy
- 10083
- 54402 - Rps-Fl, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- RY-133803
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4320-00-962-2755
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Body Inside Diameter [ADAS]
- 2.3125 Inches Nominal
- Body Outside Diameter [ADAR]
- 2.7480 Inches Minimum And 2.7500 Inches Maximum
- Corner Shape [BZLX]
- Square All Corners
- Hardness Rating [CQFM]
- 265.0 Brinell Standard Nominal Overall
- Material Document And Classification [MDCL]
- Qq-N-286 Fed Spec Single Material Response Overall
- Material [MATT]
- Nickel Alloy K-500 Overall
- Left Internal Flange Hole Diameter [AGFH]
- 2.4810 Inches Nominal
- Left Internal Flange Width [AGFK]
- 1.6250 Inches Nominal
- Lubricant Accommodation Style [AGKH]
- Grooved Circular
- Right Internal Flange Hole Diameter [AGFJ]
- 2.4810 Inches Nominal
- Right Internal Flange Width [AGFL]
- 1.6250 Inches Nominal
- Overall Length [ABHP]
- 6.2500 Inches Nominal

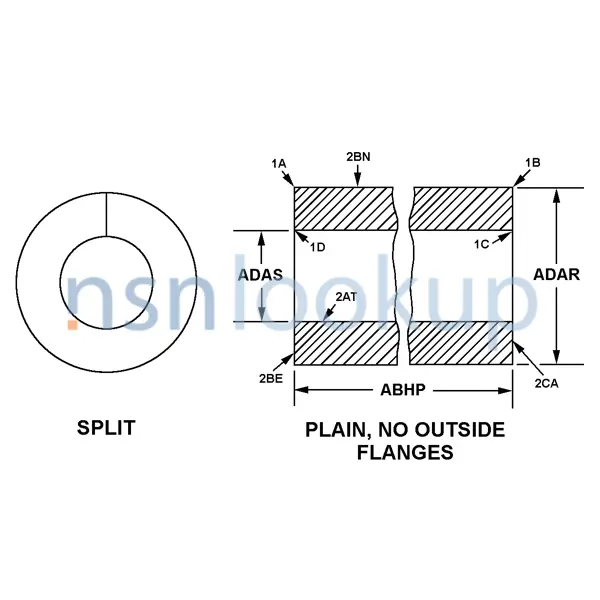

- Style Designator [STYL]
- Split, Plain, No Outside Flanges, Internal Flange At Both Ends
- Surface Groove Location And Quantity [CTMQ]
- 1 Internal
DLA Procurement Analysis 4320-00-962-2755
Management Data 4320-00-962-2755
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4320-00-962-2755
Freight Information 4320-00-962-2755
4320-00-962-2755 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 114730. A Sub NMFC of X. It has a NMFC Description of BARRELS/LINERS/SLEEVES I/C ENGINE. 4320-00-962-2755 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58790 which rates the freight between FCL and LCL. 4320-00-962-2755 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4320-00-962-2755 is not classified as a special type of cargo when transported by water. 4320-00-962-2755 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
