4320-00-945-2267
Wearing Ring
4320009452267 009452267 930671-08 17835P SL13022PC3 RX-130671
A cylindrical item with or without flange(s), designed to be inserted in a pump casing or secured to the impeller of a centrifugal pump. It is used for the purpose of providing a close running clearance between the impeller and casing in order to prevent or overcome leakage due to erosion. It may also be used as a diffuser ring in the suction and discharge throats of valves. View more Wearing Ring
November 2023
3
Marketplace 4320-00-945-2267
Request a Quotation from participating marketplace vendors
Related Documents 4320-00-945-2267 5+ Documents (More...)
RX-130671 RING,WEARING 39 EA NS Request Quotation FedMall Updated Every 15 Minutes 4320-00-945-2267 BUY
NE FedMall Updated Every Day 4320-00-945-2267 RQST NE Updated Every Day 4320-00-945-2267 RQST Updated
945-2267Wearing Ring4320009452267 009452267 930671 https//www.nsnlookup.com /fsg-43/fsc-4320/us 4320-
930671 4320009452267 009452267 day Upgrade your Account Upgrade 4320-00-945-2267Wearing Ring4320009452267
Wearing Ring 4320009452267 009452267 day Upgrade your Account Upgrade 4320-00-945-2267Wearing Ring4320009452267
009452267 930671-08 RX-130671 RX-130671 RING,WEARING 39 EA NS Request Quotation FedMall Updated Every
Wearing Ring 4320009452267 009452267 day Upgrade your Account Upgrade 4320-00-945-2267Wearing Ring4320009452267
009452267 930671-08 RX-130671 RX-130671 RING,WEARING 39 EA NS Request Quotation FedMall Updated Every
Wearing Ring 4320009452267 009452267 day Upgrade your Account Upgrade 4320-00-945-2267Wearing Ring4320009452267
009452267 930671-08 RX-130671 RX-130671 RING,WEARING 39 EA NS Request Quotation FedMall Updated Every
Restrictions 4320-00-945-2267
4320-00-945-2267 is a Wearing Ring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4320-00-945-2267
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4320-00-945-2267
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTJBHXHD
Approved Sources 4320-00-945-2267
- Part Number
- Manufacturer
- Status
- 930671-08
- Manufacturer
- 0UBG9 - Curtiss-Wright Electro-Mechanical (Active)
- Primary Buy
- Primary Buy
- 17835P
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- SL13022PC3
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- RX-130671
- 93232 - Curtiss-Wright Electro-Mechanical (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4320-00-945-2267
- Characteristic
- Specifications
- FIIG
- Specifications
- A19900
- Distance From End To Groove Center [ANTT]
- 1.405 Inches Nominal
- Body Outside Diameter [ADAR]
- 8.625 Inches Nominal

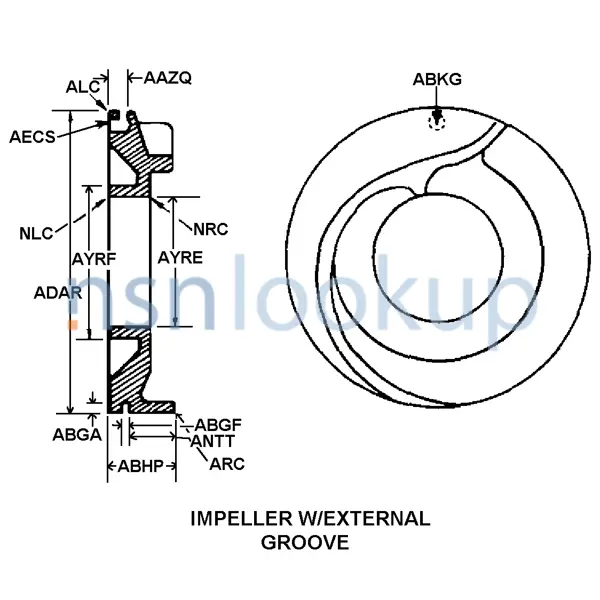

- Body Style [AAQL]
- Impeller W/External Groove
- Bolt Circle Diameter [ABKG]
- 3.875 Inches Nominal
- Bolt Hole Quantity [AECS]
- 1
- Corner Shape [BZLX]
- Square All Corners
- Groove Depth [ABGA]
- 0.438 Inches Nominal
- Groove Width [ABGF]
- 0.253 Inches Nominal
- Hole Depth [AAZQ]
- 0.503 Inches Nominal
- Material [MATT]
- Nickel Alloy
- Internal Flange Inside Diameter [AYRE]
- 3.750 Inches Nominal
- Internal Flange Outside Diameter [AYRF]
- 4.768 Inches Nominal
- Overall Length [ABHP]
- 1.781 Inches Nominal
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.438 Inches Nominal
Weapon Systems (WSDC) 4320-00-945-2267
DLA Procurement Analysis 4320-00-945-2267
- Last Stock Position:
- 6 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4320-00-945-2267
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4320-00-945-2267
Freight Information 4320-00-945-2267
4320-00-945-2267 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 128000. A Sub NMFC of X. It has a NMFC Description of PUMPS PWR NOI/WORKING HEADS/PARTS. 4320-00-945-2267 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64870 which rates the freight between FCL and LCL. 4320-00-945-2267 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 4320-00-945-2267 is not classified as a special type of cargo when transported by water. 4320-00-945-2267 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
